MakePico ESP32-D0WDQ6 Development Board with Wi-Fi and Bluetooth

Availability: Directly available from warehouse in Eindhoven
SKU: 004274

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

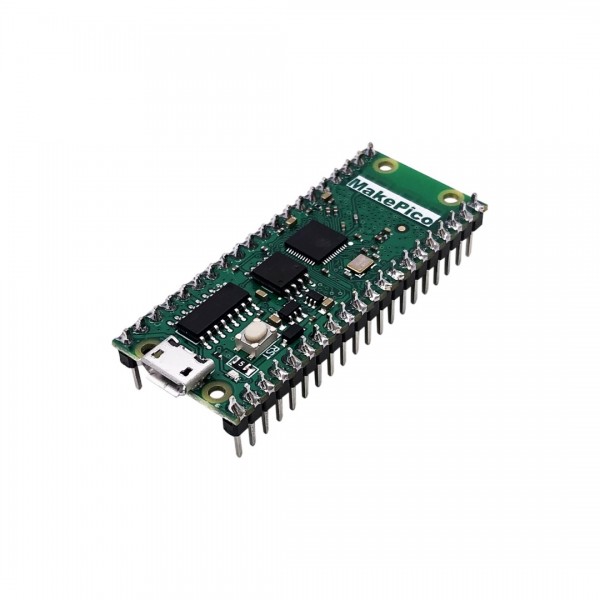

This development board based on the ESP32 has the form factor of a Raspberry Pi Pico and is easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

See the datasheet of the ESP32-D0WNQ6 under the tab "Downloads" for more information.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over MakePico ESP32-D0WDQ6 Development Board with Wi-Fi and Bluetooth

Average Rating:

This product has 0 review(s) in total.

Datasheet: 004274_esp32-D0WDQ6_datasheet_en.pdf

Tags: MakePico ESP32-D0WDQ6 Development Board with Wi-Fi and Bluetooth , MPESP32-D0WDQ6-DEVBOARD , With Bluetooth

Specifications

General
Brand	No brand
Manufacturer model/SKU	MakePico
Features	Microcontroller (MCU)
General physical appearance
Main color	Green
Weight [g]	7
Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3 (via 3.3V pin) 5 (via micro USB or 5V pin)
Maximum supply voltage [V DC]	5 (via micro USB or 5V pin) 3.3 (via 3.3V pin)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC DAC I2C I2S PWM SPI GPIO UART USB CDC

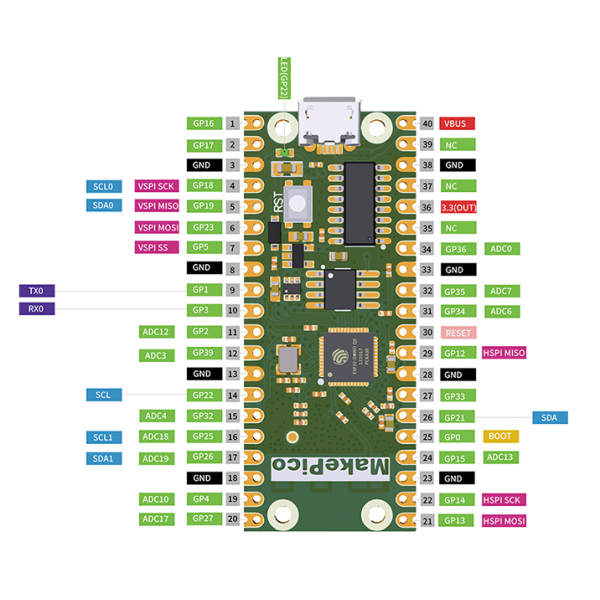

Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	16
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340C
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Micro USB female Pin header male (2.54mm)
IO-connector(s)	Micro USB female Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x MakePico
