Name: M5Stack Atom S3 - ESP32-S3 Development Board - 0.85 inch Display - M5STACK-C123
Brand: M5Stack
SKU: 004926
Price: 16.25 EUR
Availability: InStock

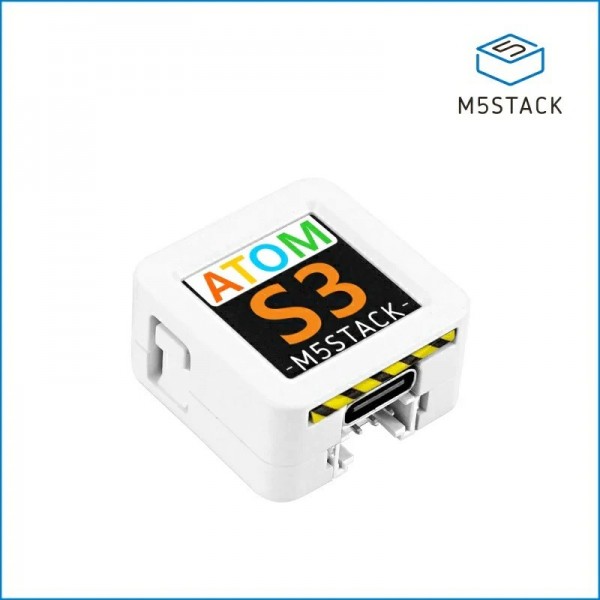

M5Stack Atom S3 - ESP32-S3 Development Board - 0.85 inch Display

Availability: Directly available from warehouse in Eindhoven
SKU: 004926

Based on 0 review(s) - Write a review

€16.25

Ex Tax: €13.43

10 or more €16.00

20 or more €15.75

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

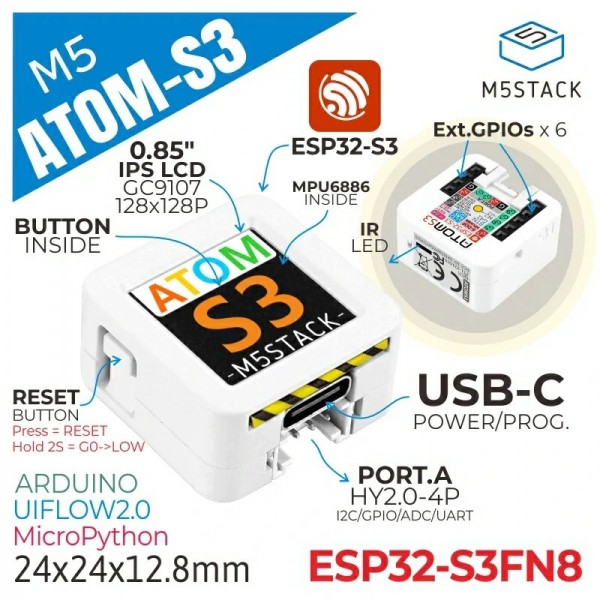

M5Stack's Atom S3 is a compact microcontroller with ESP32-S3 chip, 0.85 inch display, accelerometer and gyroscope.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atom S3 - ESP32-S3 Development Board - 0.85 inch Display

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Atom S3 - ESP32-S3 Development Board - 0.85 inch Display , M5STACK-C123 , Atom

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	C123
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Display Microcontroller Enclosure Acceleration sensor Gyroscope
General physical appearance
Main color	White
Weight [g]	7
Dimension X [mm]	24
Dimension Y [mm]	24
Dimension Z [mm]	13
Mounting options	Pin headers Screw thread
Form factor	M5Stack Module M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	8
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth IR
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
IR receiver/transmitter	Transmitter
Display
Type	IPS
Driver	GC9107
Screen diagonal [inch]	0.85
Number of pixels long side	128
Number of pixels short side	128
Display shape	Square
Pixel colors	RGB
Acceleration sensor
Sensor chip/SoC	MPU-6886
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	MPU-6886
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16

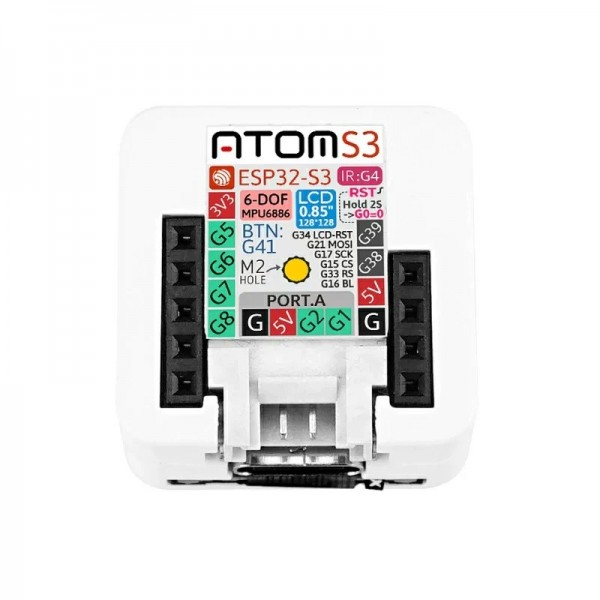

Connectors
Power supply connector(s)	HY2.0 (Grove) male Pin header female (2.54mm) USB-C female
IO-connector(s)	HY2.0 (Grove) male Pin header female (2.54mm) USB-C female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x M5STACK Atom S3
