  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002730
Based on 0 review(s) - Write a review
€15.00
Ex Tax: €12.40
Add to Cart
Add to wishlist

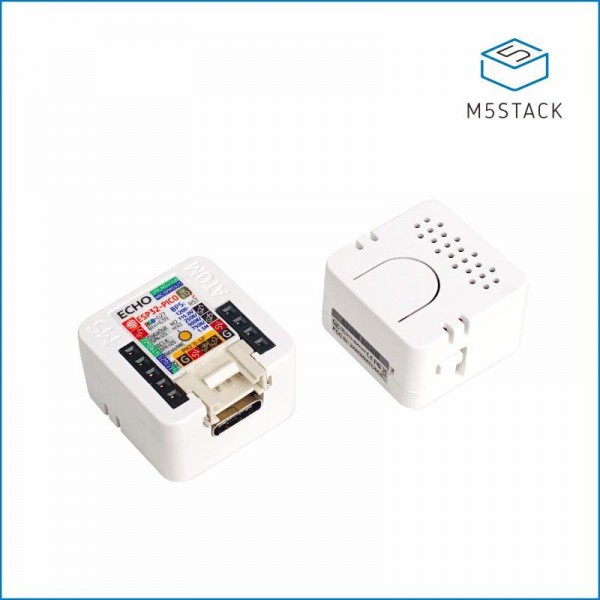

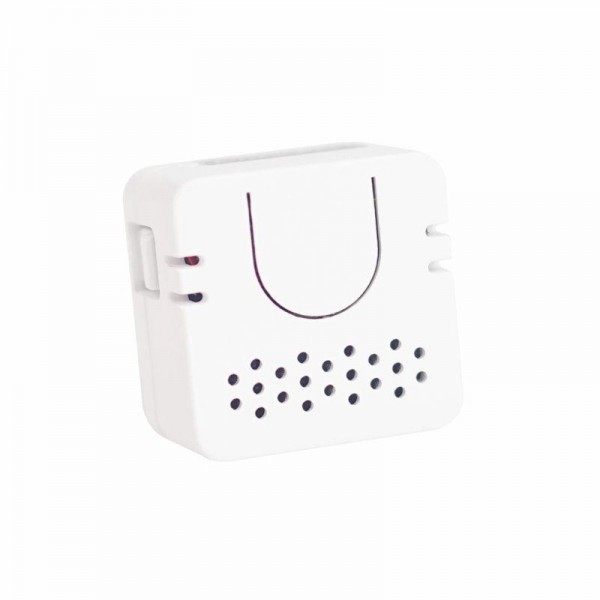

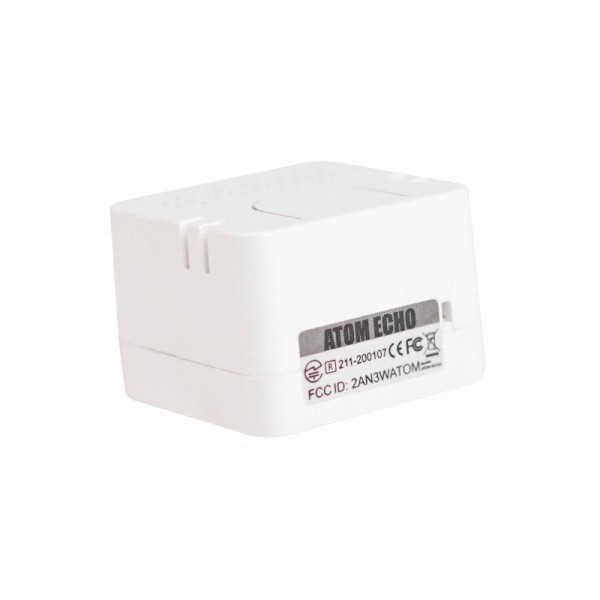

The Atom Voice (formerly Echo) from M5Stack is a compact development board based on an ESP32 chipset. Among other things, it has Wi-Fi and Bluetooth. In addition, this module also has a built-in push button, microphone and speaker.

The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable is not included). The programming languages UIFlow, MicroPython and Arduino are supported.

With this Atom Echo module, music can be played from a phone or tablet using the bluetooth function of the ESP32. The module contains an RGB LED that shows the connection status of the bluetooth speaker. In addition, there is also a microphone with which sound can be recorded.

Note: Try to avoid the following situations with the Atom Echo:

  1. Use DC output from the I2S channel
  2. Playing white noise for a long time
  3. Playing "Full square-wave audio"

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atom Voice - ESP32 Development Board

This product has 0 review(s) in total.

Tags: M5Stack , Atom , M5Stack Atom Voice - ESP32 Development Board , 002730 , M5Stack , C008-C , Microcontroller (MCU) , Enclosure , Microphone , Speaker/buzzer , Programmable button(s) , Digital LED(s) , I2C , I2S , SPI , UART , PWM , ADC , DAC , GPIO , USB CDC , Wi-Fi , Bluetooth , IR

Specifications

General
Brand M5Stack
Manufacturer model/SKU C008-C
Features Enclosure
Microphone
Digital LED(s)
Speaker/buzzer
Audio amplifier
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color White
Weight [g] 9
Dimension X [mm] 24
Dimension Y [mm] 24
Dimension Z [mm] 17
Mounting options Pin headers
Screw thread
Thread size M2
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-PICO
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 19, 21, 22, 23, 25, 26, 32, 33
Number of IO-pins 4
Maximum available hardware PWM channels 4
Maximum available analog input pins (ADC) 3
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter FTDI compatible
Wireless communication
Interface(s) IR
Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-PICO
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-PICO
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
IR receiver/transmitter Transmitter
Light source
Type LED
LED (driver) chip SK6812
Light color RGB
Sound sensor
Sensor (chip(s)) SPM1423
Type Microphone
Audio amplifier
Amplifier chip NS4168
Amplifier class D
Number of (normal) channels 1
Speaker
Speaker type Standard
Active/passive Active
Impedance [Ω] 8
Maximum nominal (RMS) power [W] 0.8
Connectors
Power supply connector(s) USB-C female
HY2.0 (Grove) male
Pin header female (2.54mm)
IO-connector(s) USB-C female
HY2.0 (Grove) male
Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Atom Voice
