LilyGO TTGO Wrist-E-Paper ESP32 with 1.54 Inch E-paper Display
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004320
€15.00
Ex Tax: €12.40
Your shopping cart is empty!

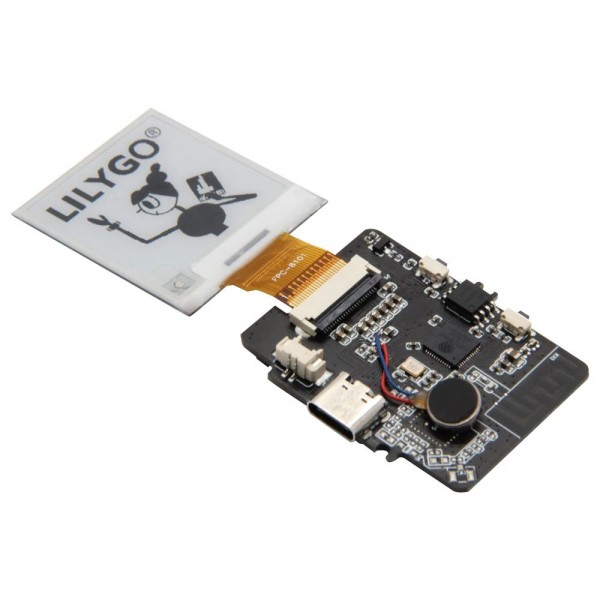

The TTGO Wrist-E-Paper is a microcontroller based on an ESP32 with a built-in 1.54 inch E-paper E-ink display that is suitable as a kind of Smartwatch.

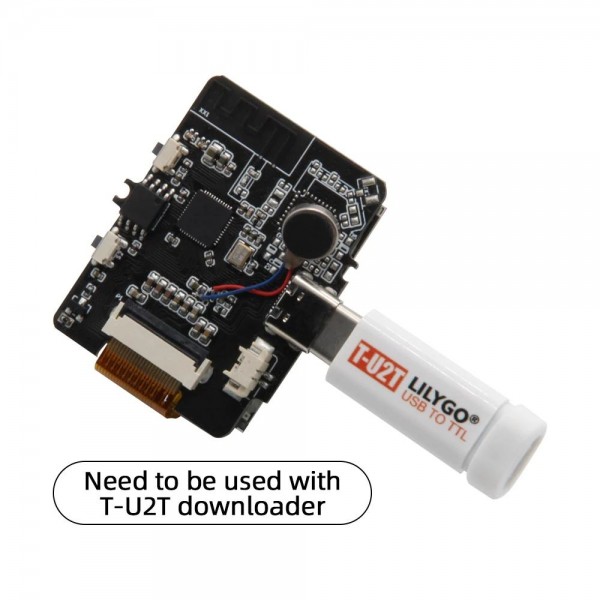

Note: This board does not have a built-in USB to serial converter, the following converter is required to program the board: TTGO T-U2T
See the following page for more information: GitHub
This product has 0 review(s) in total.
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H510 |
| Features | Display Battery charger Vibration motor Microcontroller (MCU) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 9 |
| Dimension X [mm] | 43 |
| Dimension Y [mm] | 36 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (lower possible via Li-ion/Li-Po battery) |
| Maximum supply voltage [V DC] | 5 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Number of IO-pins | 0 |
| USB to serial converter | None (TTGO T-U2T required) |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Display | |
| Type | E-paper |
| Screen diagonal [inch] | 1.54 |
| Number of pixels long side | 200 |
| Number of pixels short side | 200 |
| Pixel colors | Black White |
| Maximum refresh rate [Hz] | 0.5 |
| Battery circuit | |
| Battery charger chip/SoC | TP4054 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | USB-C female |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |

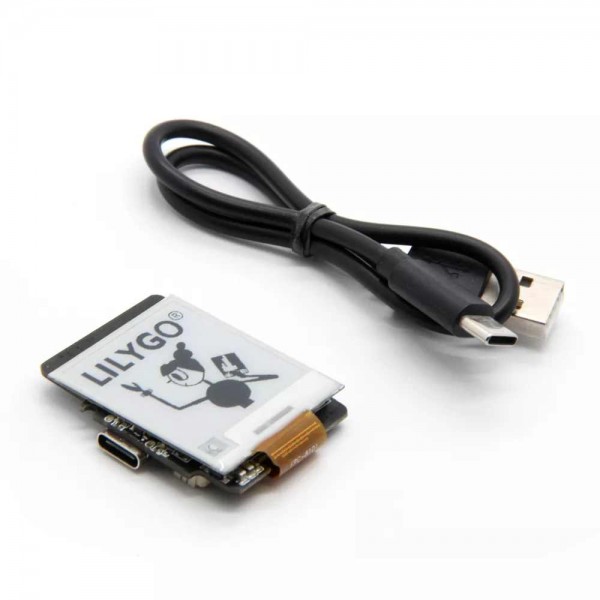

| Package contents | 1x TTGO Wrist-E-Paper ESP32 1x USB-A male to USB-C male cable 1x Battery Cable |
