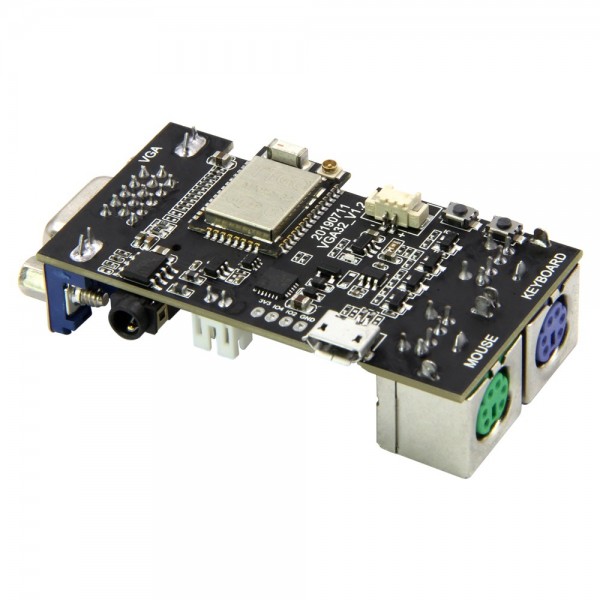

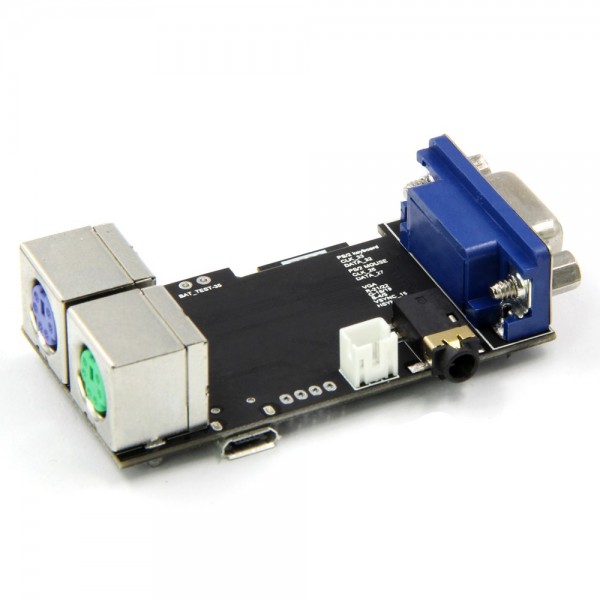

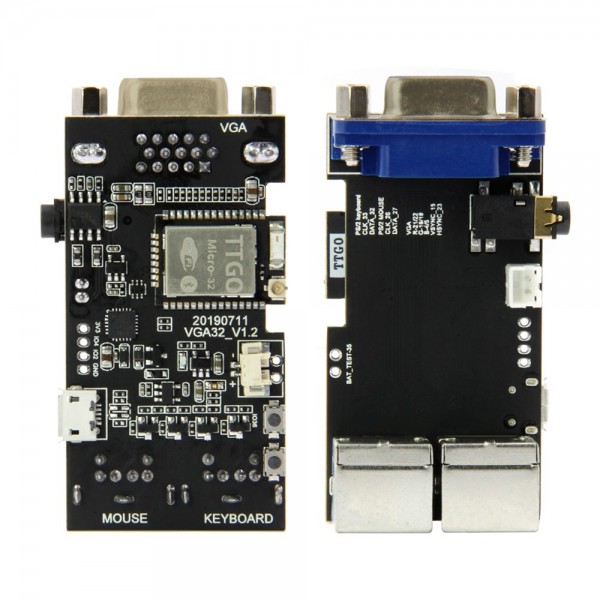

LilyGO TTGO VGA32 - ESP32

The TTGO VGA32 from LilyGO is a microcontroller based on an ESP32. This board has a VGA connection to which a monitor can be connected. The USB to serial converter makes it easy to program, also as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• Chipset: TTGO Micro32 (ESP32 240MHz dual core processor)
• Flash memory: 4MB
• SRAM: 520KB
• Built-in Bluetooth
• Built-in Wi-Fi
• Supply voltage: 3.3V DC or 5V DC
• GPIO voltage: 3.3V*
• USB to serial converter: CP2102 or CH9102F (drivers)

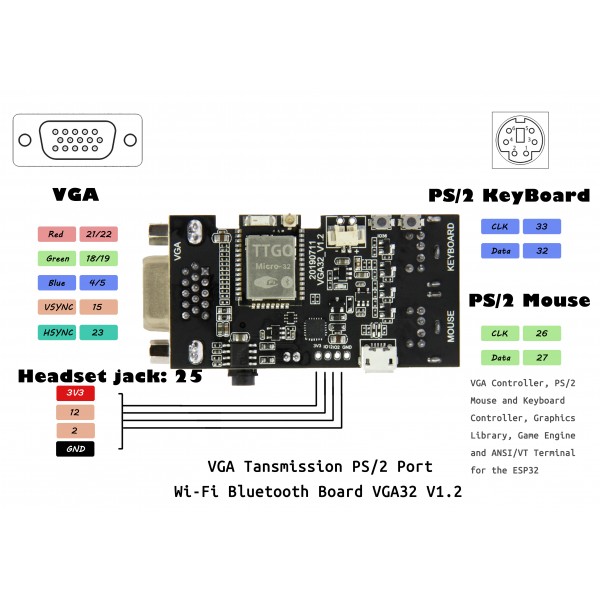

• VGA connection
• PS/2: keyboard connection
• PS/2: mouse connection
• Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA
• Battery connector: 2p Molex Picoblade (battery cable not included)
• PCB dimensions (excluding the connections): 60.40 x 31.90 mm

Package contents:

• 1x TTGO VGA32 V1.4

For more information and to get started with the board, see the following page: VGA32

*Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
