LilyGO TTGO T8 ESP32-S2 WROOM

LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
LilyGO TTGO T8 ESP32-S2 WROOM
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003174
Based on 0 review(s) - Write a review
€9.50
Ex Tax: €7.85
Add to Cart
Add to wishlist

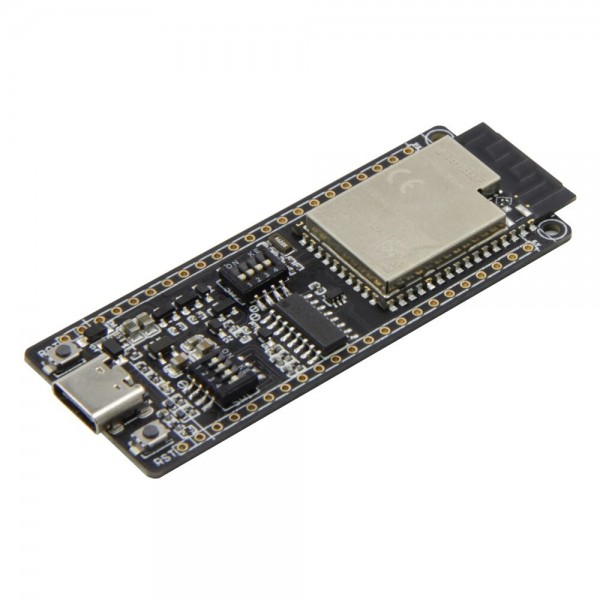

This TTGO module from LilyGO is a microcontroller based on an ESP32-S2-WROOM chip. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

Specifications:

  • Supply voltage:
    • USB-C: 5V DC
    • 5V pin: 5V DC
    • V3V pin: 3.3V DC
  • Maximum input current: 1A
  • GPIO voltage: 3.3V*
  • ESP32-S2-WROOM chip:
    • Flash memory: 4MB
    • SRAM: 320KB
    • Built-in Wi-Fi
  • USB to serial converter: CH340C

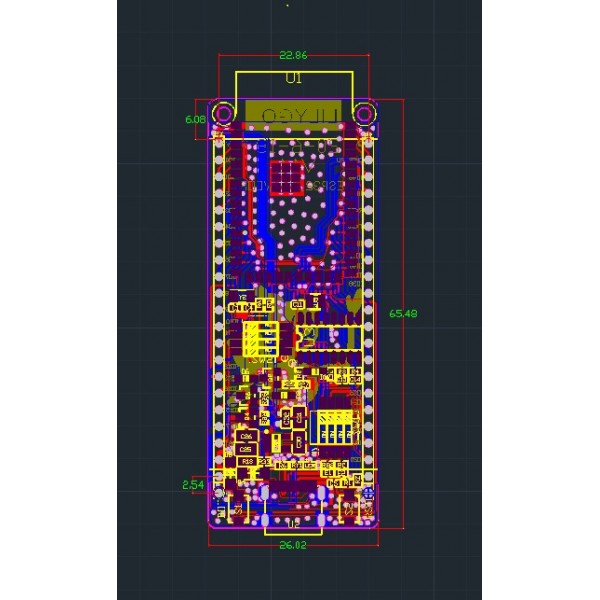

  • Dimensions: See images

CH340 drivers:

Package contents:

  • 1x TTGO ESP32-S2-WROOM module
  • 1x Male header set

Note: The board has a battery pin, however we do not recommend using this pin because of a missing charge/discharge circuit.

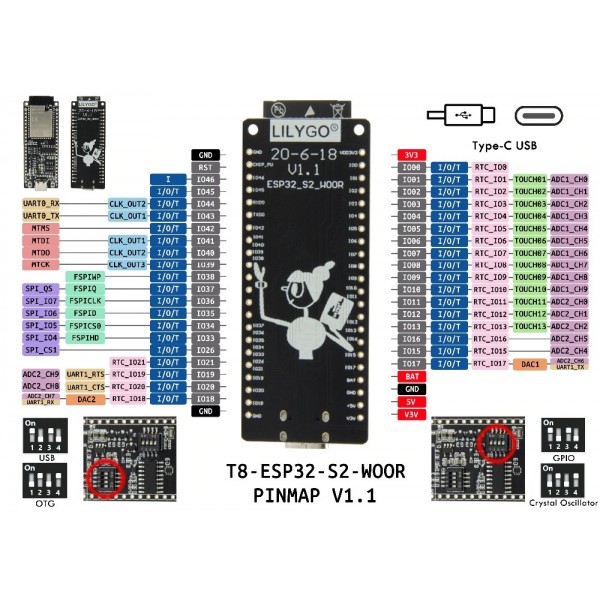

*Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.

See the following page for more information: GitHub
