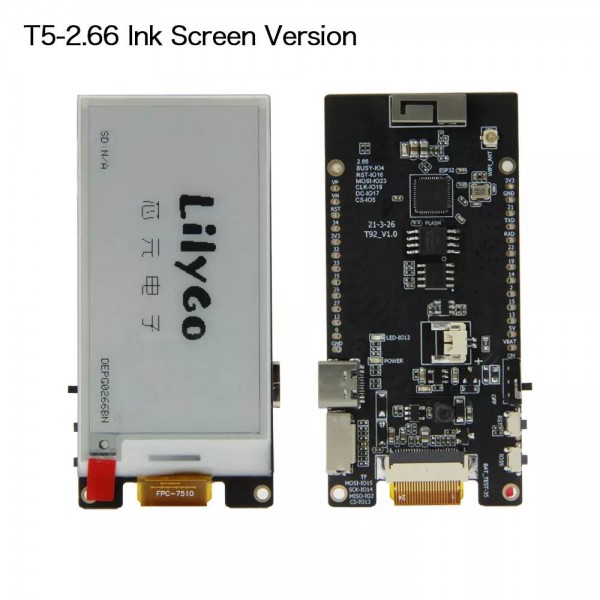

The T-Display from LilyGO is a microcontroller based on an ESP32 with a built-in 2.66 inch E-paper E-ink display.

Note: This board does not have a built-in USB to serial converter, the following converter is required to program the board: TTGO T-U2T

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO TTGO T5 V2.66 ESP32 - with 2.66 inch E-paper E-ink

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO TTGO T5 V2.66 ESP32 - with 2.66 inch E-paper E-ink , LILYGO-H493 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H493
Model revision	V1.0
Features	Display Battery charger SD-card adapter Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	16
Dimension X [mm]	78
Dimension Y [mm]	37
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5 (lower possible via Li-ion/Li-Po battery)
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	4
EEPROM type	Emulated
Communication

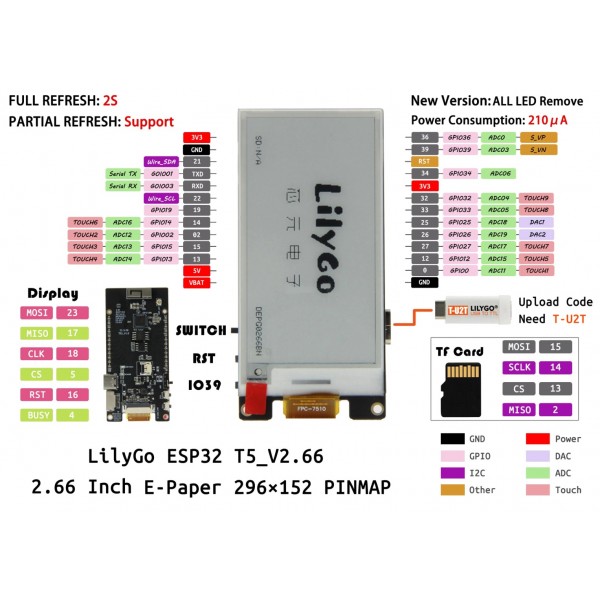

Hardware interface(s)	ADC DAC I2C I2S PWM SPI GPIO UART
Number of IO-pins	19
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	14
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	None (TTGO T-U2T required)
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Display
Type	E-paper
Screen diagonal [inch]	2.66
Number of pixels long side	296
Number of pixels short side	152
Pixel colors	Black White
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
IO-connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
Battery connector(s)	Molex Picoblade (compatible) male
Pin distance [mm]	2.54
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents

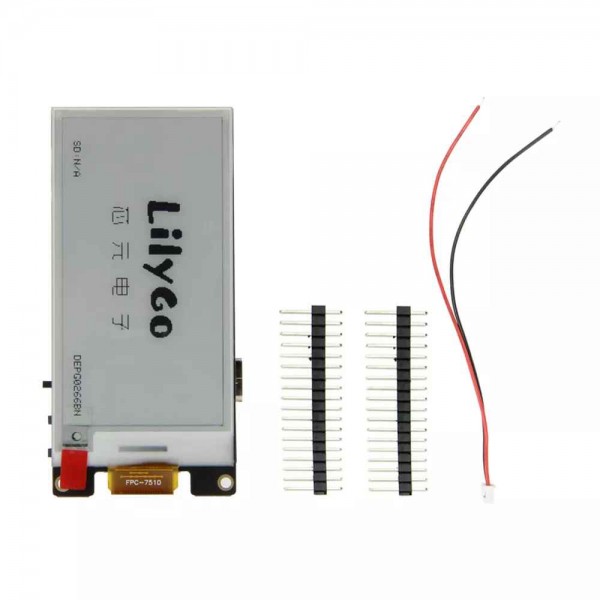

Package contents	1x TTGO T5 V2.66 1x Battery cable 1x Male pin header set
