LilyGO TTGO T5 V2.3.2 ESP32 - with 2.13 inch E-Paper E-ink Display
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005048
€17.00
Ex Tax: €14.05
10 or more €16.75
20 or more €16.50
50 or more €16.25
100 or more €16.00

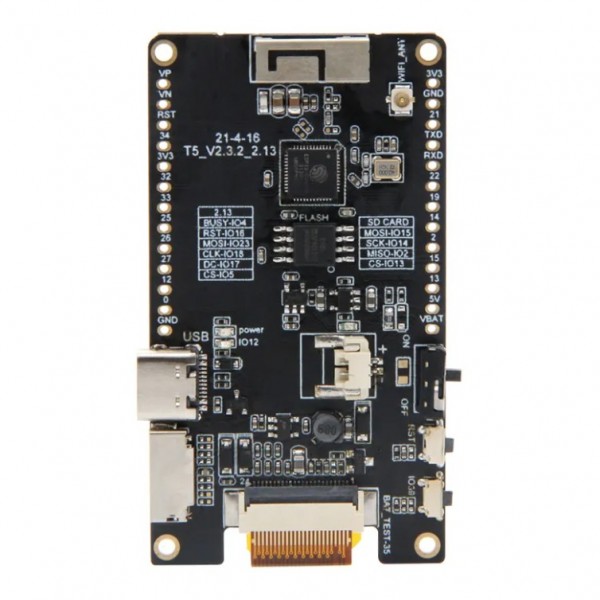

The T5 V2.3.2 from LilyGO is a microcontroller based on an ESP32 with a built-in 2.13 inch DEPG0213BN E-paper E-ink display.
Note: This board does not have a built-in USB to serial converter, the following converter is required to program the board: TTGO T-U2T
See the following page for more information: GitHub
Reviews Over LilyGO TTGO T5 V2.3.2 ESP32 - with 2.13 inch E-Paper E-ink Display
This product has 0 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, LilyGO TTGO T5 V2.3.2 ESP32 - with 2.13 inch E-Paper E-ink Display
, 005048
, LilyGO TTGO
, H548
, Programmable button(s)
, Microcontroller (MCU)
, SD-card adapter
, Battery charger
, Display
, UART
, GPIO
, SPI
, PWM
, I2S
, I2C
, DAC
, ADC
, Bluetooth
, Wi-Fi
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H548 |
| Model revision | V2.3.2 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 60 |
| Features | Display Battery charger SD-card adapter Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 14 |
| Dimension X [mm] | 67 |
| Dimension Y [mm] | 37 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (lower possible via Li-ion/Li-Po battery) |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC DAC I2C I2S PWM SPI GPIO UART |
| Number of IO-pins | 19 |
| Maximum available hardware PWM channels | 16 |
| Maximum available analog input pins (ADC) | 14 |
| Maximum available analog output pins (DAC) | 2 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | None (TTGO T-U2T required) |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Display | |
| Type | E-paper |
| Driver | SSD1680 |
| Screen diagonal [inch] | 2.13 |
| Number of pixels long side | 212 |
| Number of pixels short side | 104 |
| Display shape | Rectangular |
| Pixel colors | Black White |
| Maximum refresh rate [Hz] | 0.125 0.125 |
| Partial display refresh | Yes |
| Battery circuit | |
| Battery charger chip/SoC | TP4054 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| Package contents | |
| Package contents | 1x T5 board 1x Battery Cable 2x Male pin header 13p |
