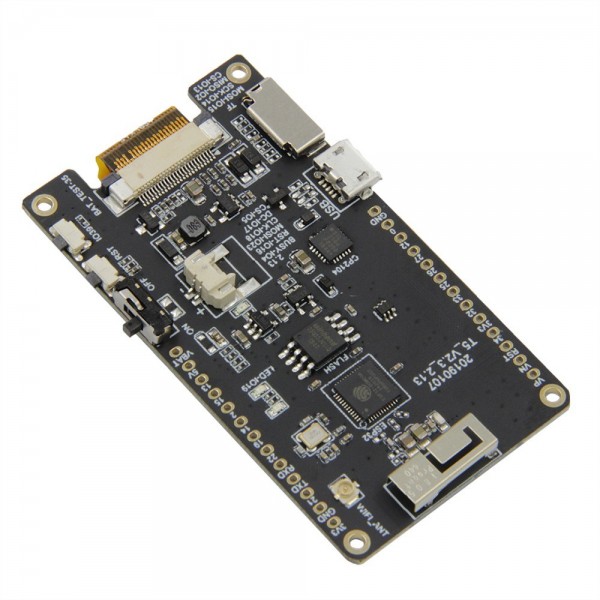

LilyGO TTGO T5 V2.3 ESP32 - with 2.13 inch E-paper E-ink

The TTGO T5 from LilyGO is a microcontroller based on an ESP32 with a built-in 2.13 inch E-paper E-ink display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• ESP32 chip (240MHz dual core processor)
• Flash memory: 4MB
• Built-in Wi-Fi
• Built-in Bluetooth
• Built-in 2.13 inch E-paper E-ink display
• USB to serial converter: CP2104 or CH9102F (drivers)
• Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA
• Built-in micro SD card connection
• Battery connector: 2p Molex Picoblade
• Battery cable included

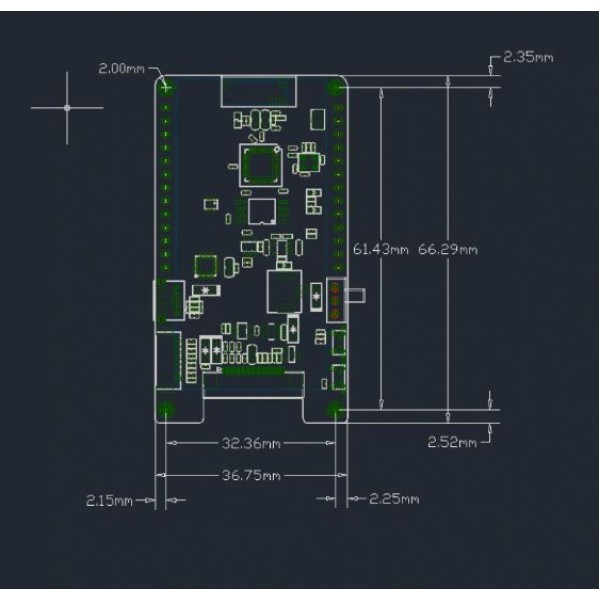

• Dimensions: See images

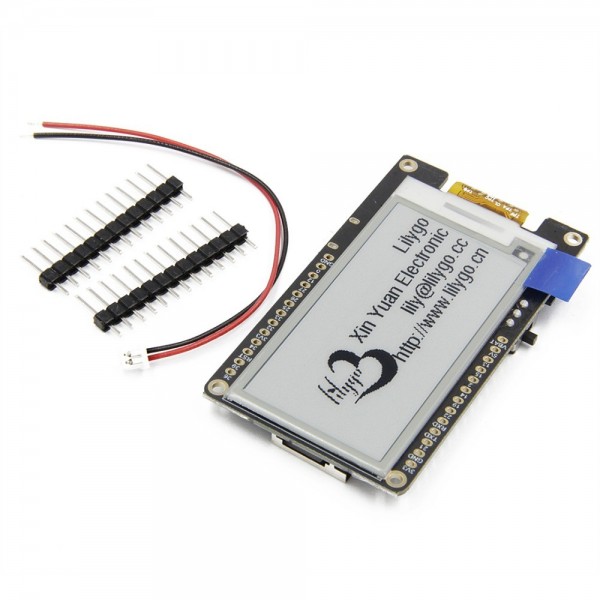

Package contents:

• 1x TTGO T5 V2.3
• 1x Battery cable with 2p Molex Picoblade connector
• 1x Male header set

See the following page for more information and to get started with the board: TTGO-T5-Ink-Screen-Series

To program the board with the Arduino IDE, select the 'ESP32 Dev Module' in the board manager.

Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
