LilyGO TTGO T-Thrust Model Airplane Motor Kit - ESP8266

Availability: Directly available from warehouse in Eindhoven
SKU: 004569

Based on 0 review(s) - Write a review

€10.50

Ex Tax: €8.68

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

Description
Reviews

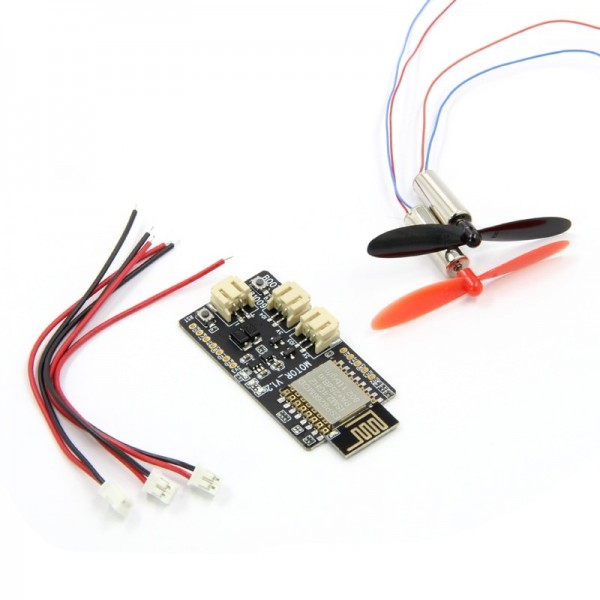

The LilyGO T-Thruster is a kit based on an ESP8266 microcontroller and two DC motors. The kit can be used to make a remote-controlled airplane, for example with styrofoam.

See the following page to get started with T-Thruster and download the App, see the following page: T-Thruster

Note: We do not have building instructions available for an airplane.

Note: No battery included. Keep in mind that the battery used must be able to handle the relatively high current that the motors can draw.

Please login or register to review

Reviews Over LilyGO TTGO T-Thrust Model Airplane Motor Kit - ESP8266

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO TTGO T-Thrust Model Airplane Motor Kit - ESP8266 , LILYGO-H247 , With Wi-Fi

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H247
Model revision	V1.2
Features	Microcontroller (MCU) Motor
General physical appearance
Main color	Black
Weight [g]	16 (complete kit)
Dimension X [mm]	57 (including PCB antenna)
Dimension Y [mm]	27
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3 (lower possible via Li-ion/Li-Po battery)
Maximum supply voltage [V DC]	3.3 (higher possible via Li-ion/Li-Po battery)
Minimum recommended supply current [A]	5.5 (via batterij)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Espressif
Chip series	ESP8266
Maximum clock frequency [MHz]	80
Number of cores	1
Internal memory
SRAM [KB]	160
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	SPI UART ADC GPIO
Number of IO-pins	6
Maximum available hardware PWM channels	0
Maximum available analog input pins (ADC)	1
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	0
Maximum available hardware SPI interfaces	0
USB to serial converter	None
Wireless communication
Interface(s)	Wi-Fi
Wi-Fi chip/SoC	ESP8266
Wi-Fi frequency [GHz]	2.4
Actuator
Actuator type	Brushed DC motor
Maximum motor voltage [V DC]	4.2
Maximum continuous RMS current per phase [A]	2.5
Phase resistance [Ω]	1.3
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Battery connector(s)	JST-PH (compatible) male
Motor connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x TTGO T-Thruster 2x Motor 2x propeller 3x JST-PH (compatible) 2p female to loose wires cable
