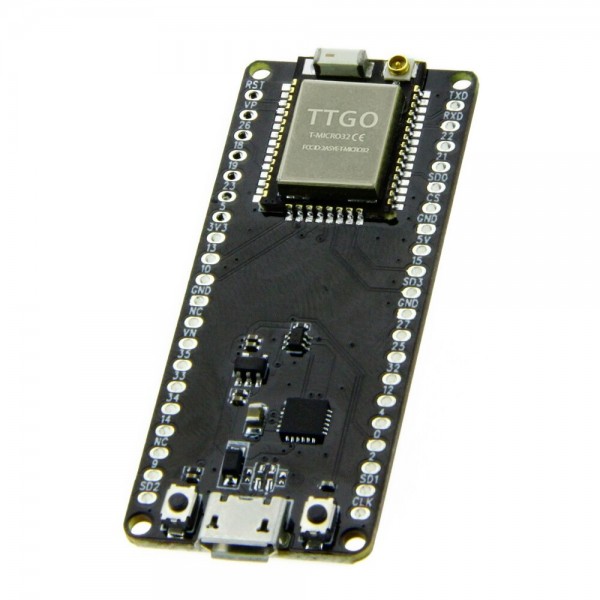

LilyGO TTGO T-Micro32 Development Board - ESP32 PICO D4

This LilyGO development board contains the TTGO T-Micro32 (ESP32) module and is easy to program, even as an Arduino. The board has a Micro USB connection with which it can be programmed and/or powered (Micro USB cable not included).

Specifications:

• Supply voltage: 5V DC (via Micro USB or 5V pin) of 3.3V DC (via 3V3 pin)
• GPIO voltage: 3.3V*
• Chipset: ESP32 PICO D4 (240MHz dual core processor)
  • Flash memory: 4MB
  • SRAM: 520KB
  • Built-in Wi-Fi
  • Built-in Bluetooth
• USB to serial converter: CP2104
• Connector for external antenna present
• Dimensions PCB: 60 x 24mm

CP2104 drivers:

• Windows, Mac OSX, Linux and more

Package contents:

• 1x TTGO T-Micro32 Development Board

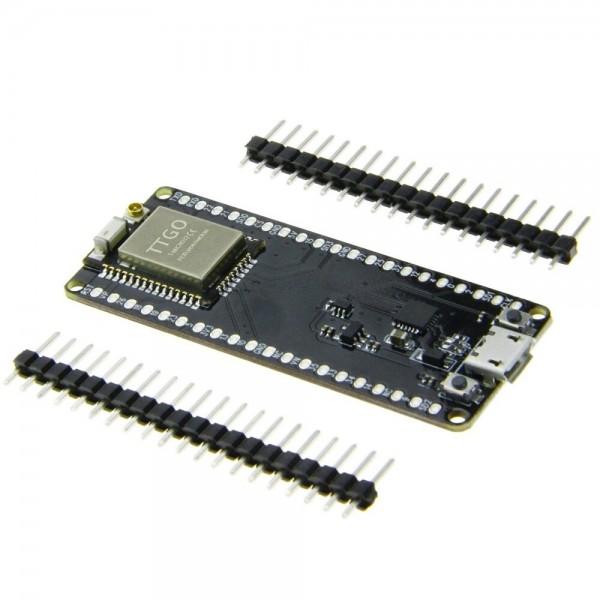

• 1x Male header set

See the following page for more information about the T-Micro32: TTGO-Micro32

To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.

*Note: The pins on the board are directly connected to the ESP8266 chip and are therefore only suitable for 3.3V signals.
