LilyGO TTGO T-Lite W5500 ESP32 - with OLED Display

The TTGO T-Lite W5500 from LilyGO is a microcontroller based on a TTGO T-Micro32 (ESP32). The board has an OLED screen on the back and it has the option to place a W5500 Ethernet Module (this is not included). Doing so provides the module with both ethernet and Wi-Fi. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

Specifications:

• Supply voltage:
  • USB-C: 5V DC
  • 5V pin: 5V DC
  • 3V3 pin: 3.3V DC
• GPIO voltage: 3.3V*
• Chipset: ESP32 PICO D4 (240MHz dual core processor)
  • Flash memory: 4MB
  • SRAM: 520KB
  • Built-in Wi-Fi
  • Built-in Bluetooth
• USB to serial converter: CP2104 or CH9102F (drivers)
• Connector for external antenna present
• Built-in display:
  • Diagonal: 0.96 inch
  • Resolution: 128x64
  • Type: OLED
  • Driver: SSD1306

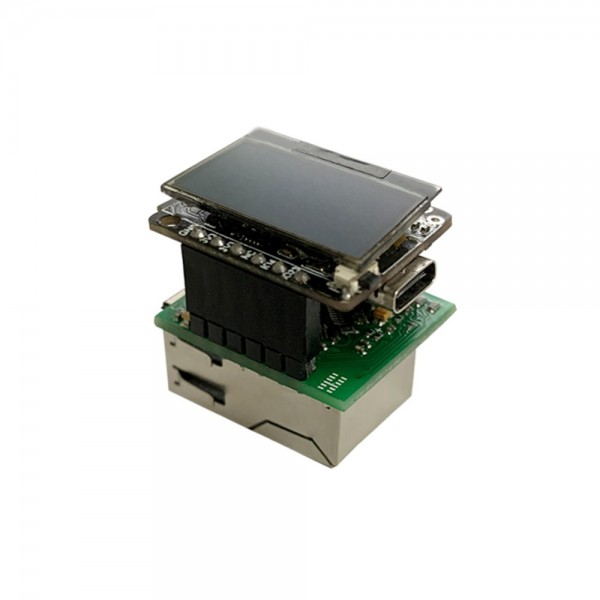

• Option for W5500 Ethernet Module

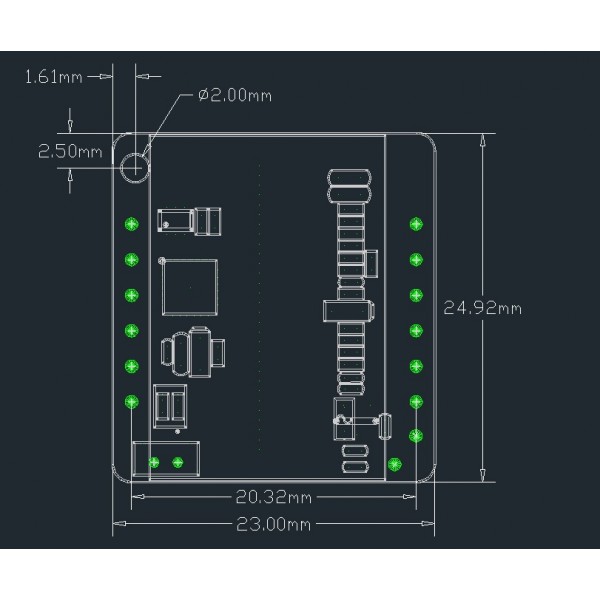

• Dimensions: See images

Package contents:

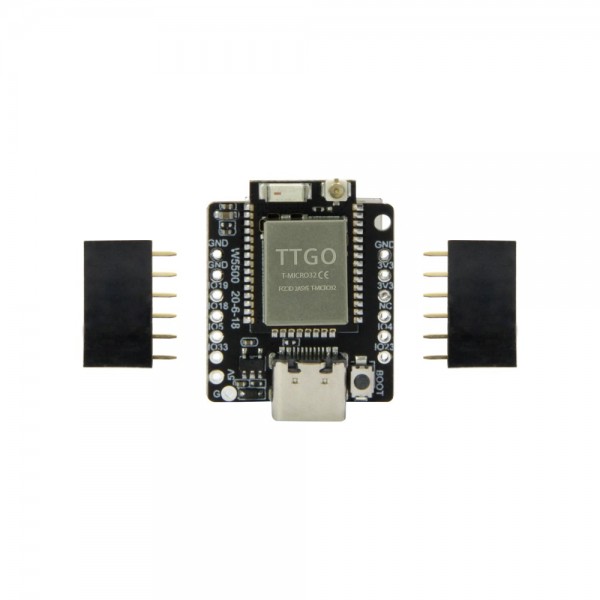

• 1x TTGO T-Lite W5500
• 1x Female header set

See the following page to get started with the board: TTGO-T-Lite-W5500

To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.

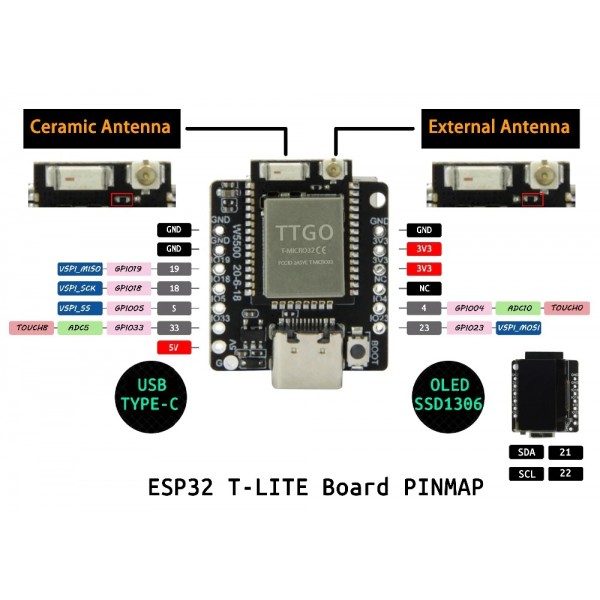

*Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
