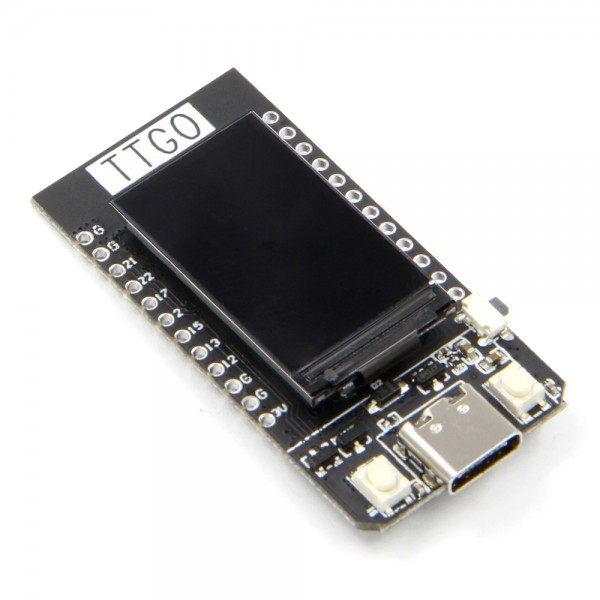

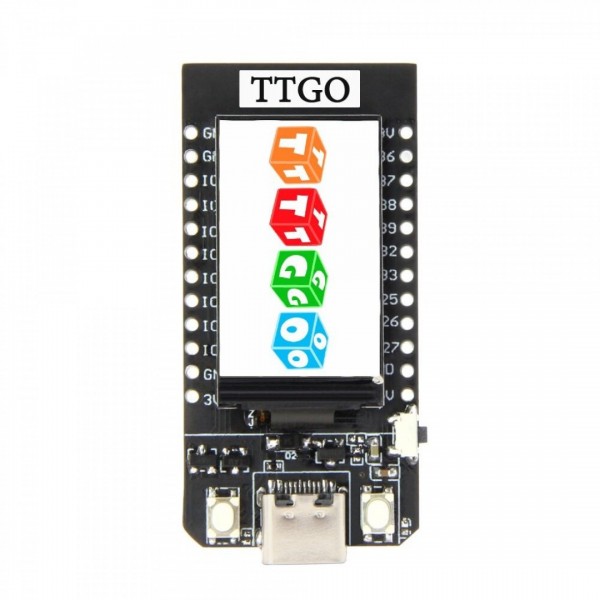

LilyGO TTGO T-Display V1.1 ESP32 - with 1.14 inch TFT Display

The TTGO T-Display from LilyGO is a microcontroller based on an ESP32 with a built-in 1.14 inch TFT display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

Specifications:

• Supply voltage: 3.3V DC or 5V DC
• GPIO Voltage: 3.3V*
• ESP32 chip (240MHz dual core processor)
• SRAM: 520KB
• Flash memory: 4MB
• Built-in Wi-Fi
• Built-in Bluetooth
• Built-in 1.14 inch (240x135) TFT (IPS) display (ST7789)
• Built-in push button
• Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA
• USB to serial converter: CH9102F (drivers)
• Battery connector: 2p Molex Picoblade

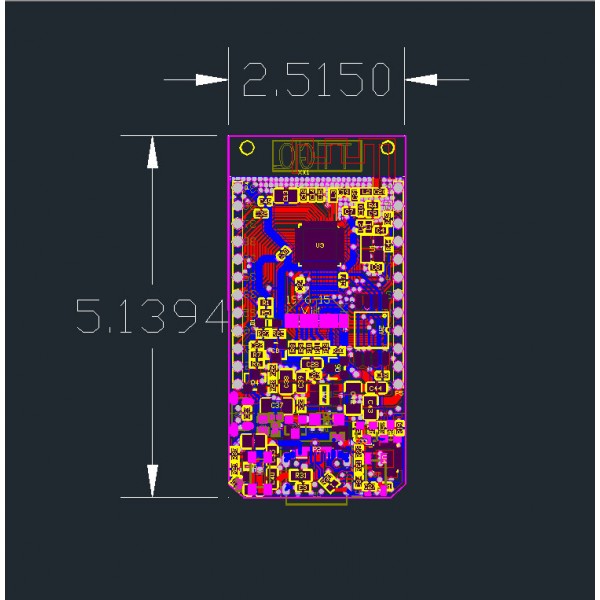

• PCB dimensions: 51.4 x 25.2mm

Package contents:

• 1x TTGO T-Display V1.1 board
• 1x Battery cable: 2p Molex Picoblade
• 1x Male header set

For more information and to get started with the board, see the following page: TTGO-T-Display

To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.

*Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
