LilyGO TTGO T-Display-S3 ESP32-S3 - with 1.9 inch TFT Display

Availability: Directly available from warehouse in Eindhoven
SKU: 006333

Based on 0 review(s) - Write a review

€16.00

Ex Tax: €13.22

10 or more €15.75

20 or more €15.50

50 or more €15.25

100 or more €15.00

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

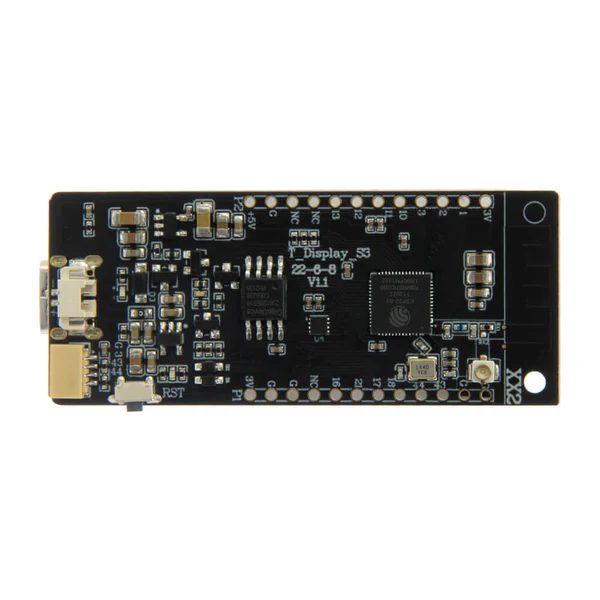

The LilyGO TTGO T-Display-S3 is a microcontroller based on an ESP32-S3 with a built-in TFT display. It is easy to program, also like an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

An enclosure is available for this board: T-Display S3 Shell - Black

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO TTGO T-Display-S3 ESP32-S3 - with 1.9 inch TFT Display

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO TTGO T-Display-S3 ESP32-S3 - with 1.9 inch TFT Display , LILYGO-H569 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H569
Model revision	V1.2
Features	Battery charger Display Microcontroller Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	12
Dimension X [mm]	61
Dimension Y [mm]	26
Mounting options	Pin headers
Form factor	Module (general) T-Display layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	13
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	10
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	TFT
Driver	ST7789
Screen diagonal [inch]	1.9
Number of pixels long side	320
Number of pixels short side	170
Pixel colors	RGB
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	JST-SH (compatible) male Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)

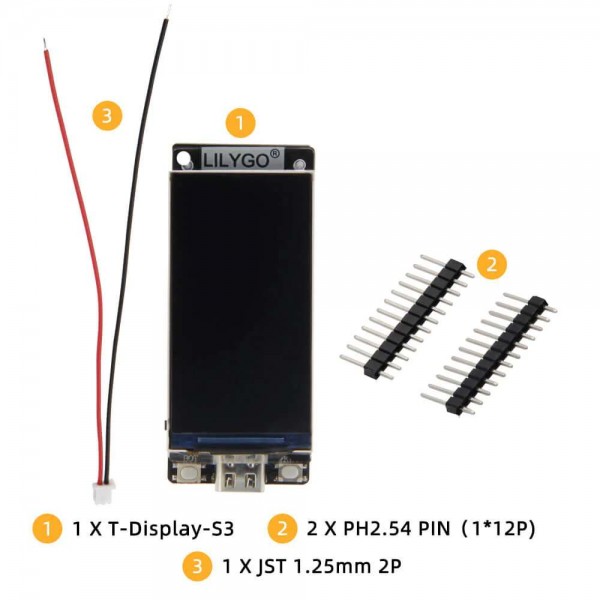

Package contents
Package contents	1x TTGO T-Display-S3 1x Battery cable 2x Male pin header 12p
