LilyGO TTGO T-Camera Plus ESP32 - Front Fisheye Camera

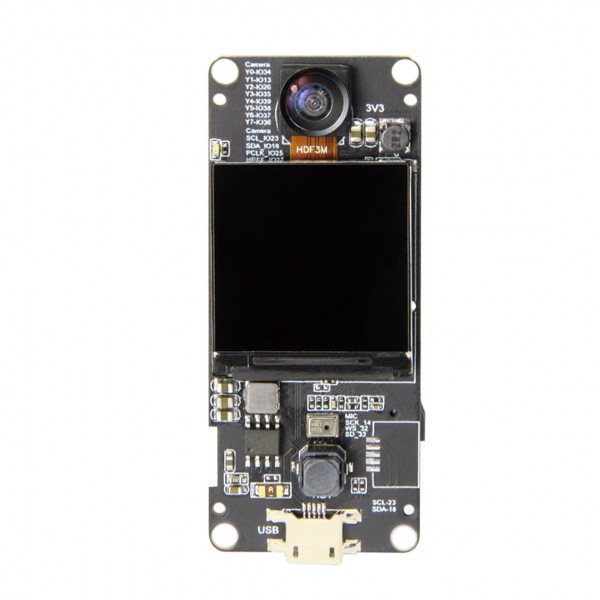

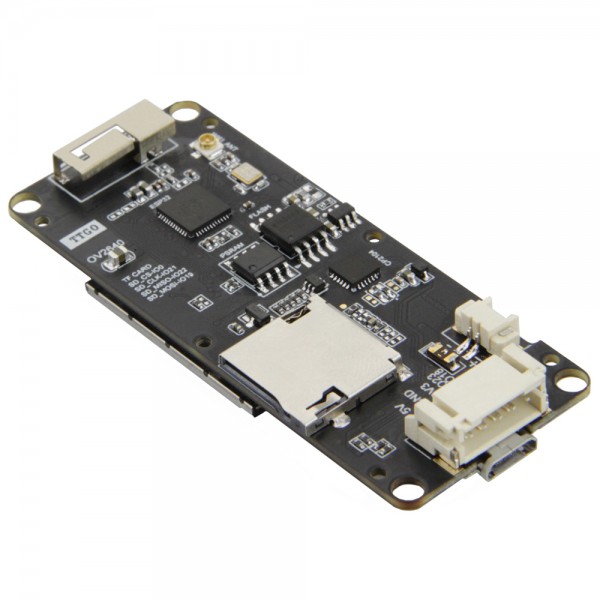

The TTGO Camera Plus from LilyGO is a microcontroller based on an ESP32 with a built-in fisheye camera on the front side, a microphone and a 1.3 inch TFT display. The CP2104 USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• ESP32 chip (240MHz dual core processor)
• Flash memory: 4MB
• PSRAM: 8MB
• Built-in Wi-Fi
• Built-in Bluetooth
• Built-in camera (OV2640)
• Built-in microphone
• Built-in 1.3 inch (240x240) TFT (IPS) display (ST7789)
• Built-in power management chip (IP5306) with Li-ion/Li-Po battery charging circuit (up to ~2A charging)
• Built-in micro SD card connection
• I2C connector: 5p JST-PH
• Battery connector: 2p Molex Picoblade
• Battery cable included

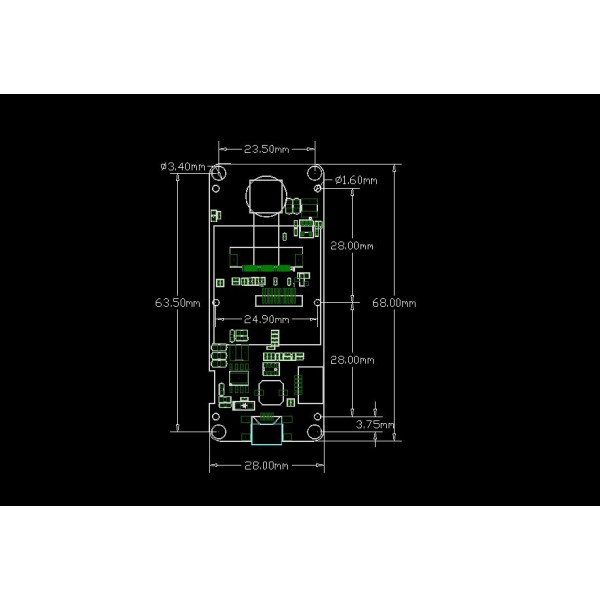

• Dimensions: See images

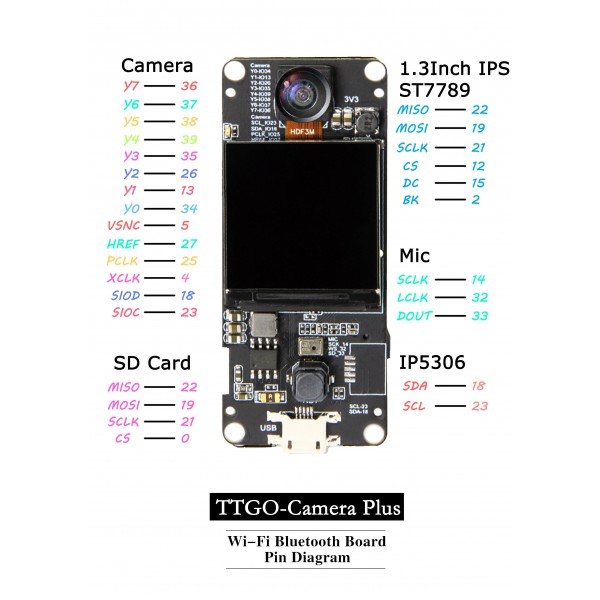

Pinout:

• See images

See the following page to get started with the board: Arduino Selfie Camera

To program the board with the Arduino IDE, select the 'ESP32 Dev Module' in the board manager.

Please note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
