LilyGO TTGO T-Camera Mic ESP32

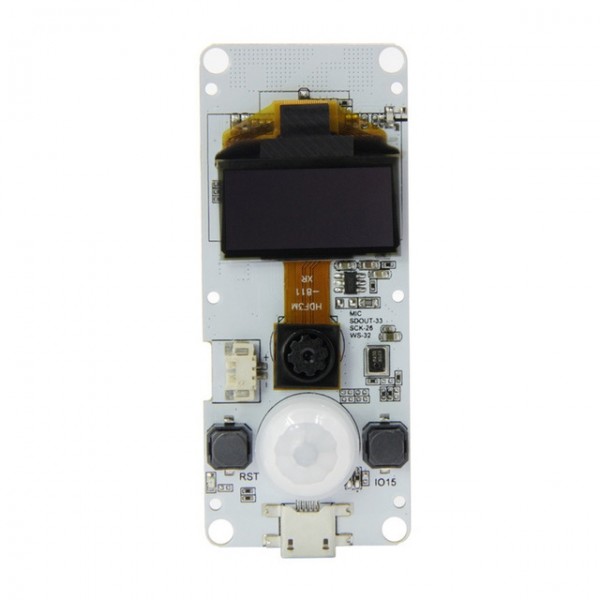

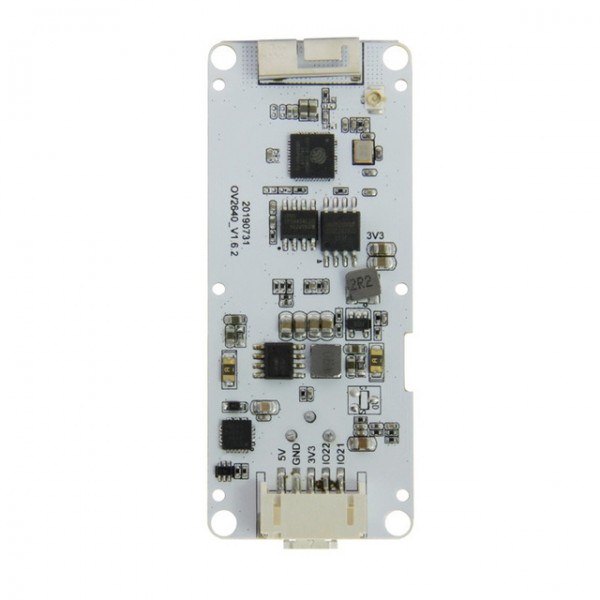

The TTGO T-Camera Mic from LilyGO is a microcontroller based on an ESP32 with a built-in camera, microphone, a PIR sensor and a 0.96 inch OLED display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• ESP32 chip (240MHz dual core processor)
• Flash memory: 16MB
• PSRAM: 8MB
• Built-in Wi-Fi
• Built-in Bluetooth
• Built-in camera (OV2640)
• Built-in microphone
• Built-in PIR sensor
• Built-in 0.96 inch (128x64) OLED display (SSD1306)
• Built-in power management chip (IP5306) with Li-ion/Li-Po battery charging circuit (up to ~2A charging)
• USB to serial converter: CP2104 or CH9102 (drivers)
• I2C connector: 5p JST-PH
• Battery connector: 2p Molex Picoblade
• Battery cable included

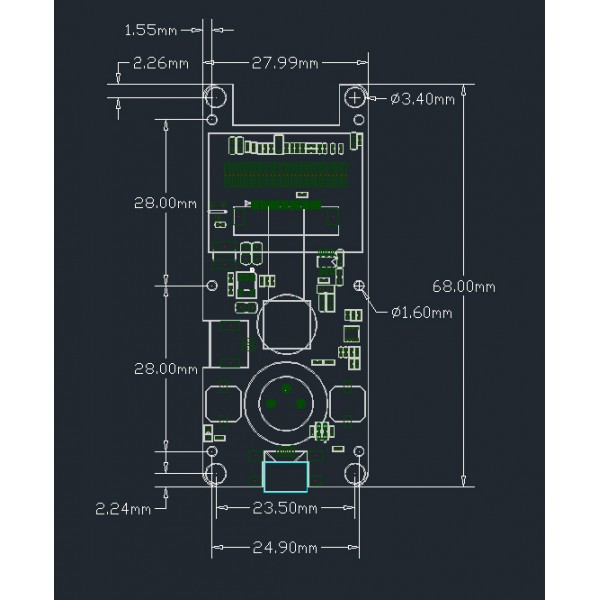

• Dimensions: See images

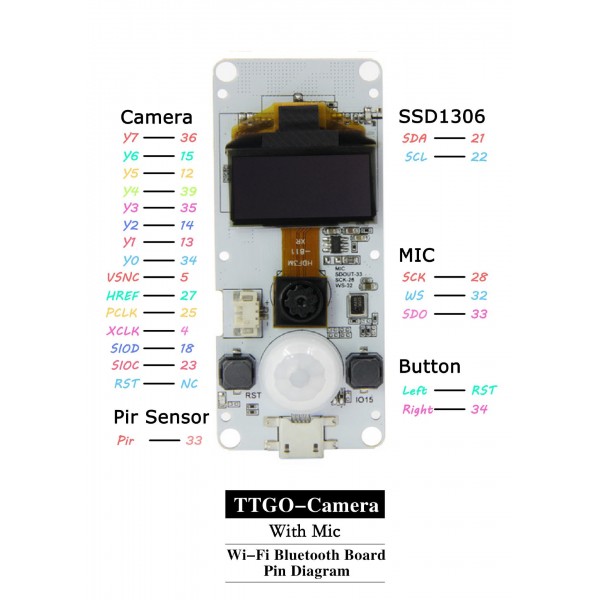

Pinout:

• See images

Package contents:

• 1x TTGO T-Camera Mic
• 1x Battery cable with 2p Molex Picoblade connector

See the following page for more information and to get started with the board: ESP32 Camera Series

Please note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
