LilyGO TTGO T-Camera ESP32-WROVER

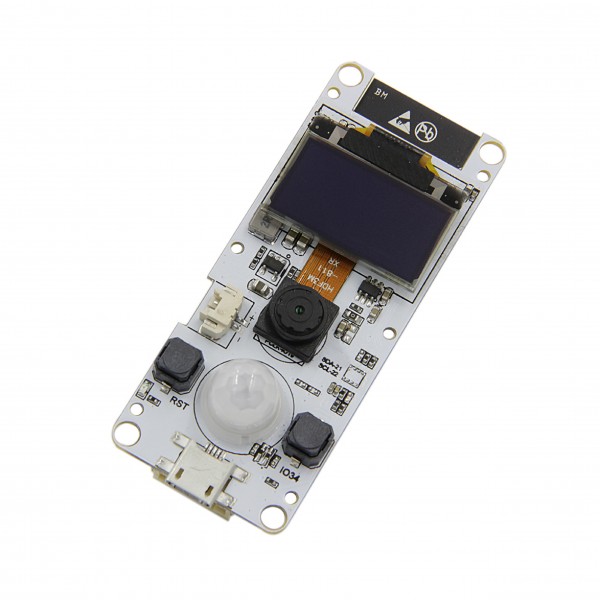

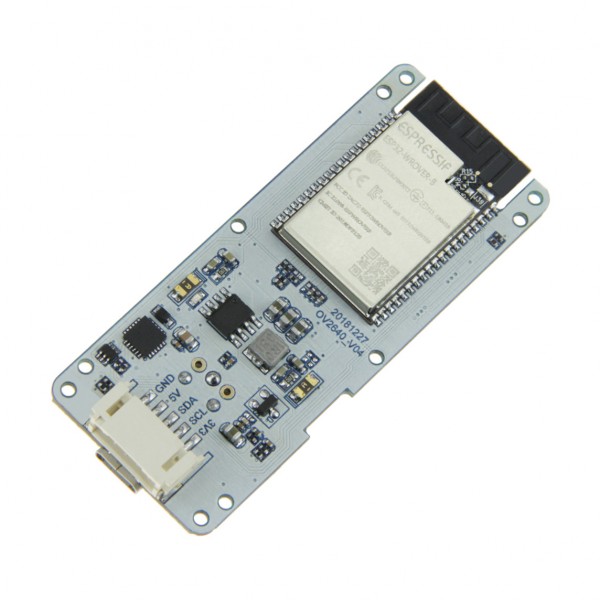

The TTGO Camera from LilyGO is a microcontroller based on an ESP32 with a built-in camera, a PIR sensor and a 0.96 inch OLED display. The CP2104 USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• ESP32 chip (240MHz dual core processor)
• Flash memory: 4MB
• PSRAM: 8MB
• Built-in Wi-Fi
• Built-in Bluetooth
• Built-in camera (OV2640)
• Built-in PIR sensor
• Built-in 0.96 inch (128x64) OLED display (SSD1306)
• USB to serial converter: CP2102 or CH9102F (drivers)
• Built-in power management chip (IP5306) with Li-ion/Li-Po battery charging circuit (up to ~2A charging)
• I2C connector: 5p JST-PH
• Battery connector: 2p Molex Picoblade
• Battery cable included

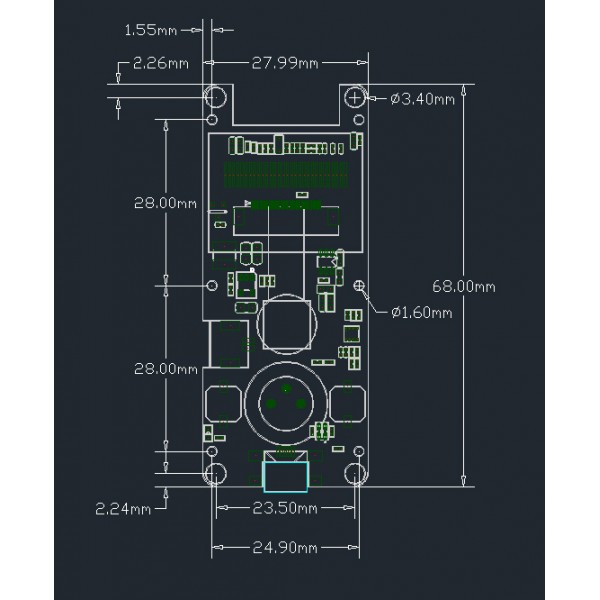

• Dimensions: See images

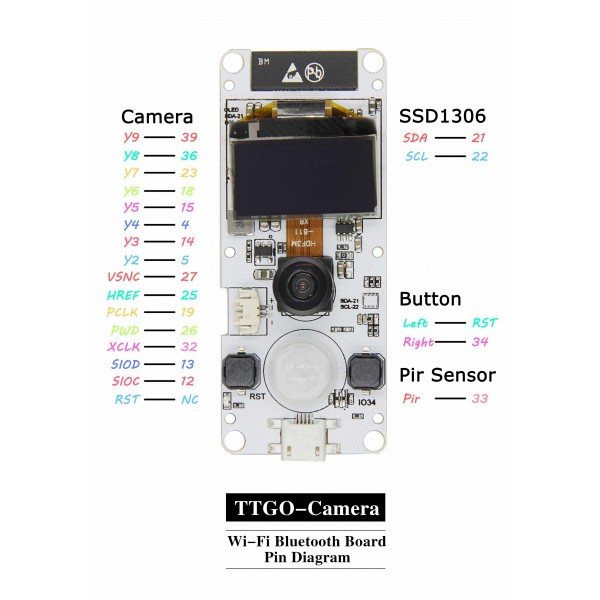

Pinout:

• See images

See the following page for more information and to get started with the board: ESP32 Camera Series

To program the board with the Arduino IDE, select the 'ESP32 Wrover Module' in the board manager.

Please note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
