LilyGO T7-S3 ESP32-S3 Development Board

Availability: Directly available from warehouse in Eindhoven
SKU: 004995

Based on 0 review(s) - Write a review

€10.25

Ex Tax: €8.47

5 or more €9.25

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

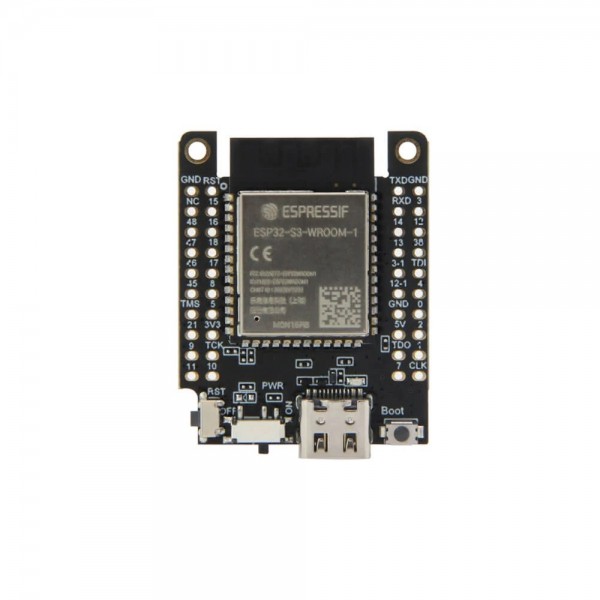

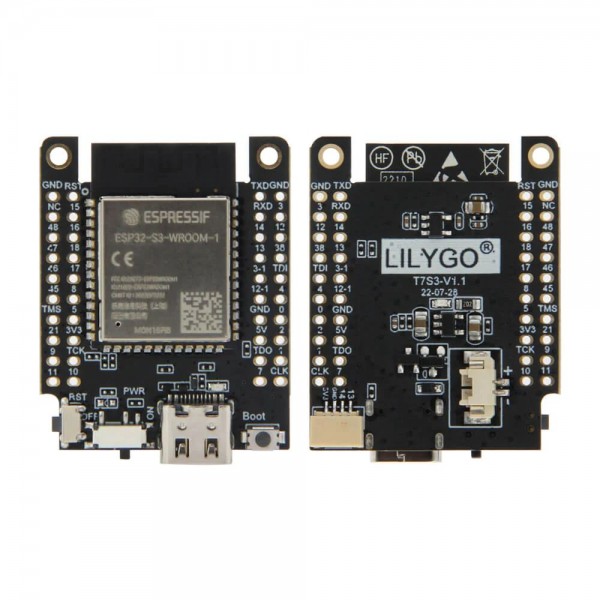

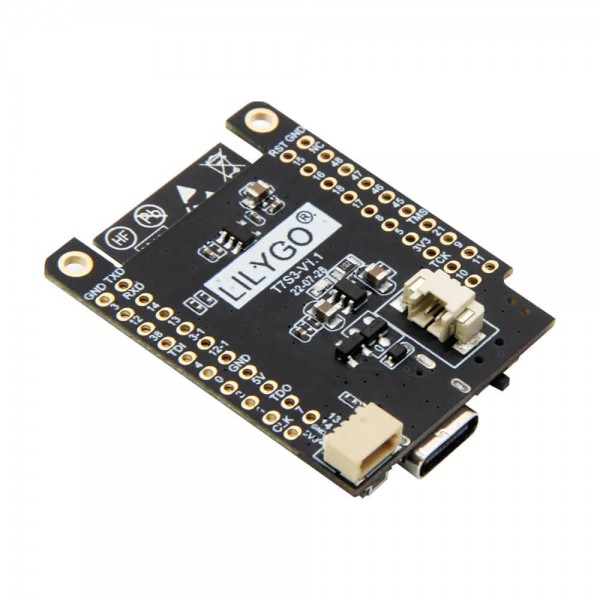

This development board based on the ESP32-S3 microcontroller chip supports Wi-Fi and Bluetooth. The board has a USB-C connection with which it can be programmed and/or powered, also as an Arduino.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T7-S3 ESP32-S3 Development Board

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T7-S3 ESP32-S3 Development Board , LILYGO-H582 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H582
Model revision	V1.2
Features	Battery charger Microcontroller Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	39
Dimension Y [mm]	31
Mounting options	Mounting hole(s)
Form factor	Module (general) D1 mini layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	27
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	18
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	JST-SH (compatible) male Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents

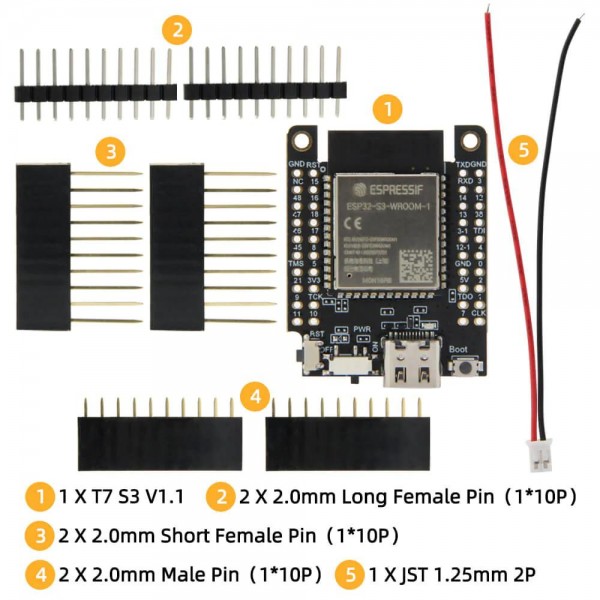

Package contents	1x T7-S3 2x 10p pinheader male 2x 10p pinheader female 2x 10p pinheader female long 1x Molex picoblade (compatible) battery cable
