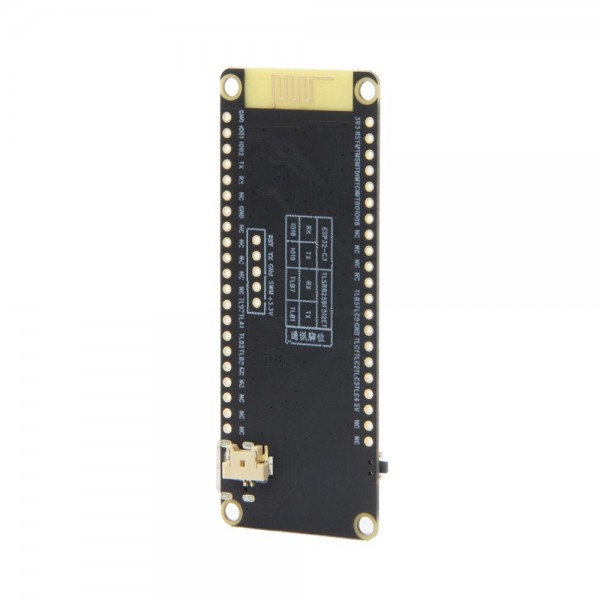

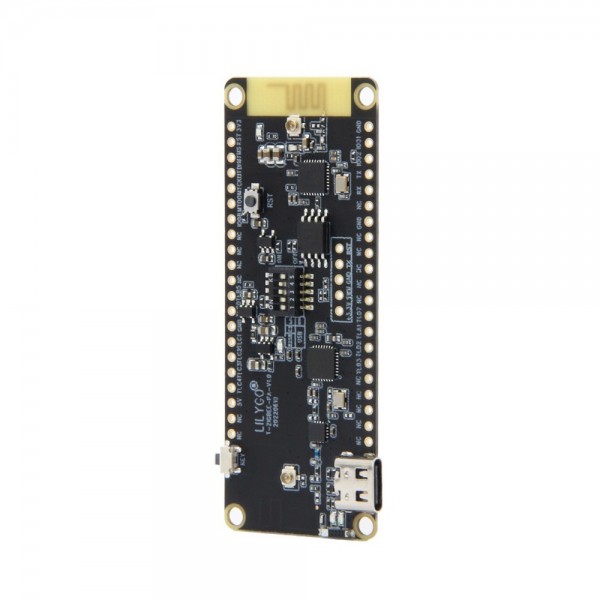

The T-ZigBee PA from LilyGO is a development board with two microcontrollers: An ESP32-C3 and a TLSR8258. As a result, the board has Wi-Fi, Bluetooth LE and ZigBee, among other things. For example, with this board it is possible to make a ZigBee bridge. The PA version of this board has an extra ZigBee power amplifier chip and a better antenna.

Note: This board does not have a built-in USB to serial converter, to program the board the following converter is required: TTGO T-U2T

Note: The specifications below regarding the MCU/Memory/IO pins refer to the ESP32-C3 only, for more information on the TLSR8258 please see the datasheet under the tab "Downloads".

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over LilyGO T-Zigbee PA - ESP32-C3 TLSR8258 Dual MCU

This product has 0 review(s) in total.

Tags: Wireless , Zigbee , LilyGO T-Zigbee PA - ESP32-C3 TLSR8258 Dual MCU , 005032 , LilyGO TTGO , H573 , Microcontroller (MCU) , Battery charger , UART , GPIO , SPI , PWM , I2S , I2C , ADC , Bluetooth , Zigbee , Wi-Fi

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H573
Model revision V1.1
Features Battery charger
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 7
Dimension X [mm] 75
Dimension Y [mm] 29
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
(lower possible via Li-ion/Li-Po battery)
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C3
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 400
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated

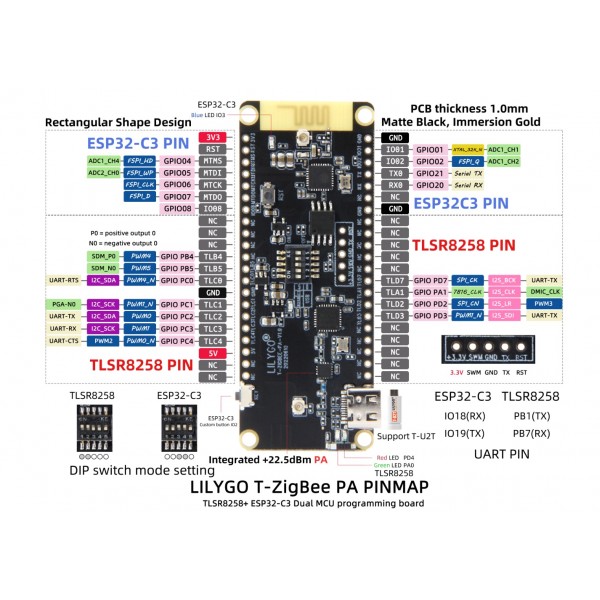

Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
Number of IO-pins 9
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter None
(TTGO T-U2T required)
Wireless communication
Interface(s) Wi-Fi
Zigbee
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Zigbee chip/SoC TLSR8258
Zigbee frequency [GHz] 2.4
Battery circuit
Battery charger chip/SoC AP5054B
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 500
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
Battery connector(s) Molex PanelMate (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
IPEX MHF 1/uFL male (requires modification)
Zigbee/Thread antenna connector Built-in antenna
IPEX MHF 1/uFL male (requires modification)
Package contents

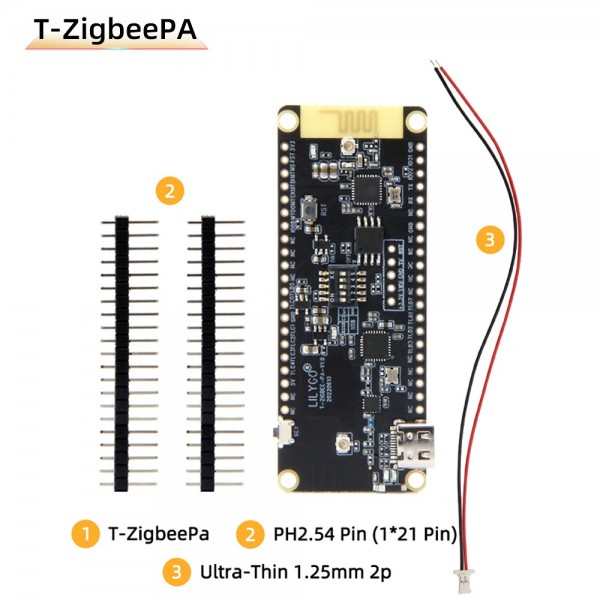

Package contents 1x T-ZigbeePA
1x Male pin header set
1x Battery cable
