LilyGO T-Touch Bar - ESP32-S3 with Dual 0.99 inch Display and Touchscreen
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005361
€29.00
Ex Tax: €23.97

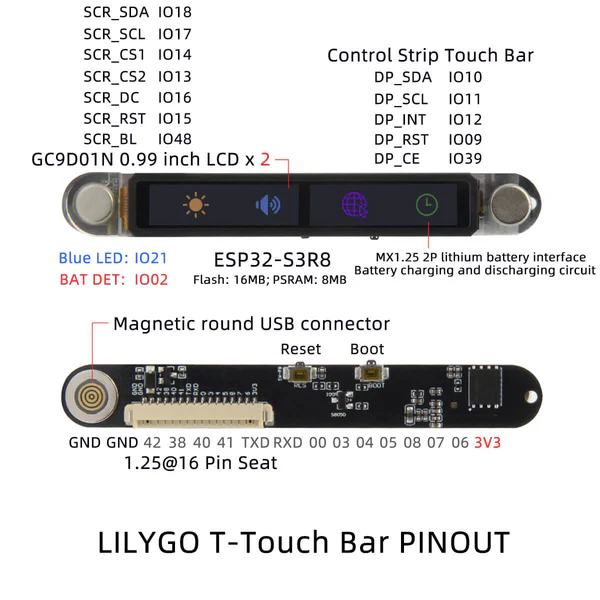

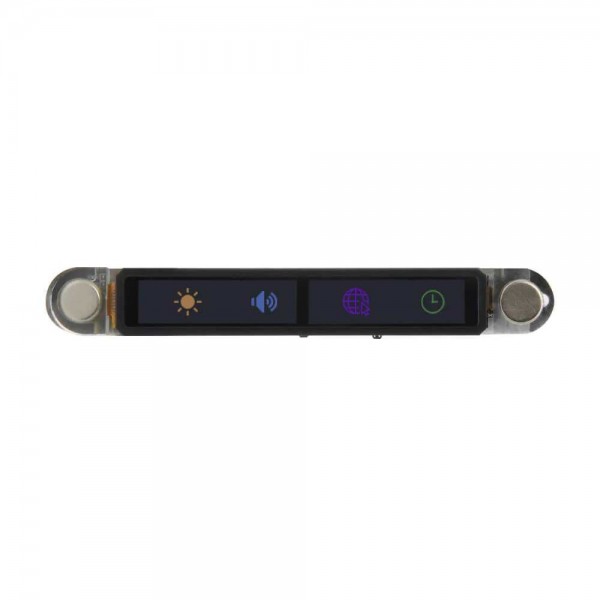

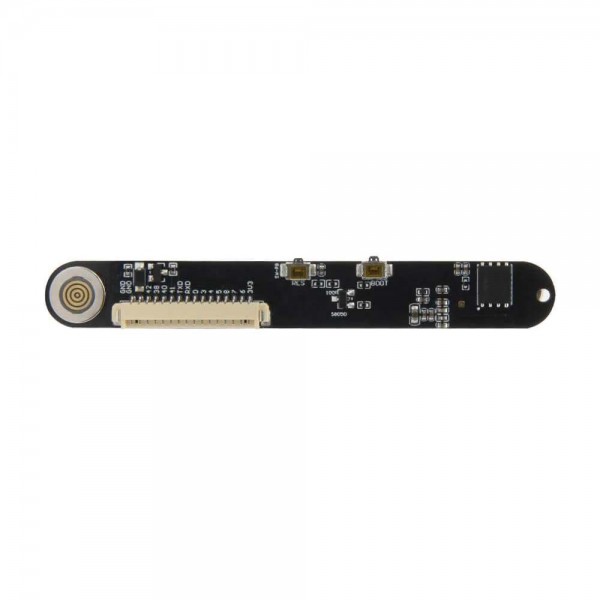

A development board from LilyGO based on an ESP32-S3 with two touchscreen displays. It is easy to program, also like an Arduino.
See the following page for more information: GitHub
Reviews Over LilyGO T-Touch Bar - ESP32-S3 with Dual 0.99 inch Display and Touchscreen
This product has 0 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, LilyGO T-Touch Bar - ESP32-S3 with Dual 0.99 inch Display and Touchscreen
, 005361
, LilyGO TTGO
, H612
, Battery charger
, Display
, Microcontroller (MCU)
, Touchscreen
, Programmable button(s)
, I2C
, I2S
, SPI
, Native USB
, UART
, PWM
, ADC
, GPIO
, USB CDC
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H612 |
| Features | Display Touchscreen Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 15 |

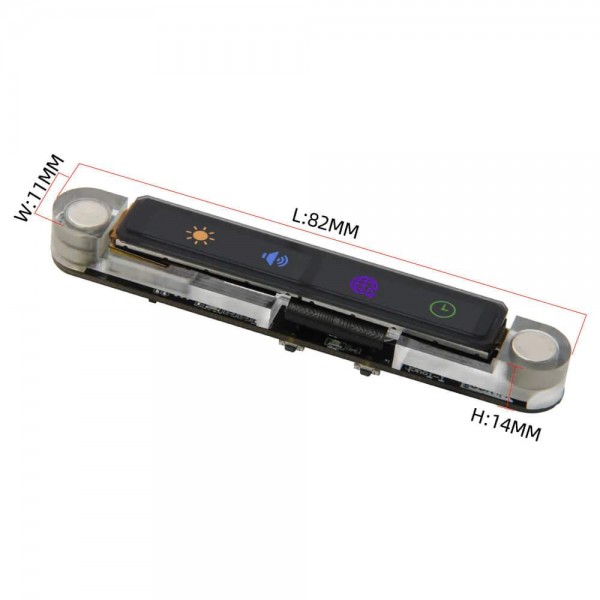

| Dimension X [mm] | 82 |
| Dimension Y [mm] | 11 |
| Mounting options | Magnets |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 13 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 6 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | TFT |
| Driver | GC9D01N |
| Screen diagonal [inch] | 0.99 |
| Number of pixels long side | 160 (per display, 320 total) |
| Number of pixels short side | 40 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | FT6336U |
| Touch type | Capacitive |
| Battery circuit | |
| Battery charger chip/SoC | FM4057 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-A male |
| IO-connector(s) | USB-A male Molex Picoblade (compatible) male |
| Battery connector(s) | Molex PanelMate (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |

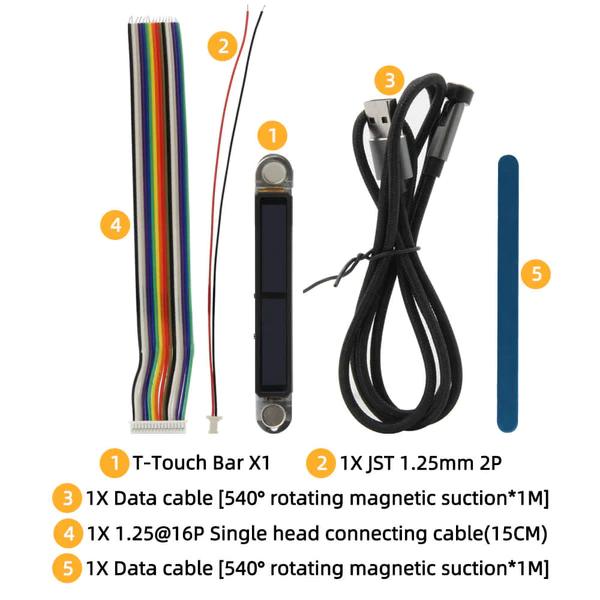

| Package contents | 1x T-Touch Bar 1x PanelMate battery cable 1x USB-A cable with special magnetic connector 1x Picoblade GPIO cable with loose wires - 16p |
