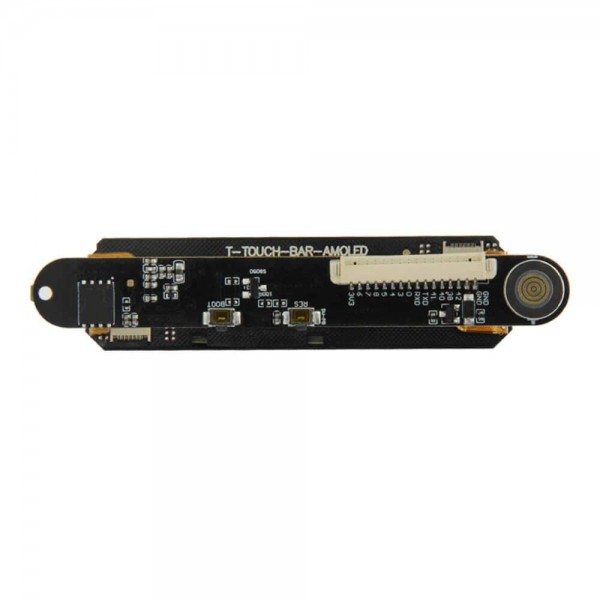

A development board from LilyGO based on an ESP32-S3 with two touchscreen displays. It is easy to program, also like an Arduino.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-Touch Bar AMOLED - ESP32-S3 with Dual 1.1 inch Display and Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-Touch Bar AMOLED - ESP32-S3 with Dual 1.1 inch Display and Touchscreen , LILYGO-H621 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H621
Features	Display Touchscreen Battery charger Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	12
Dimension X [mm]	82
Dimension Y [mm]	17
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication

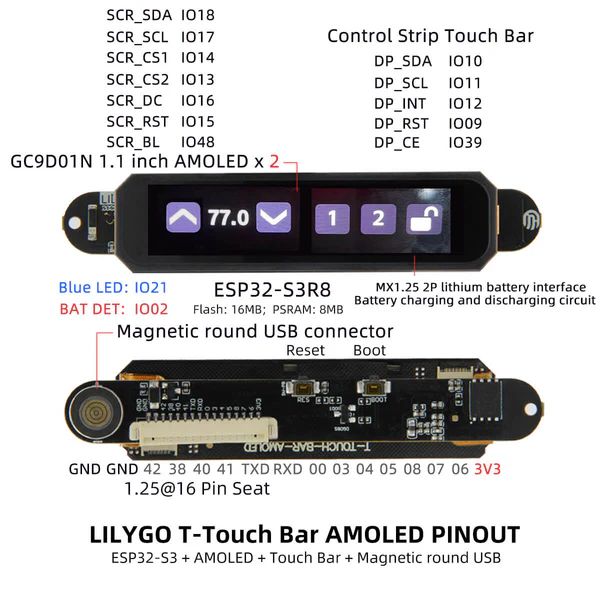

Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	13
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE

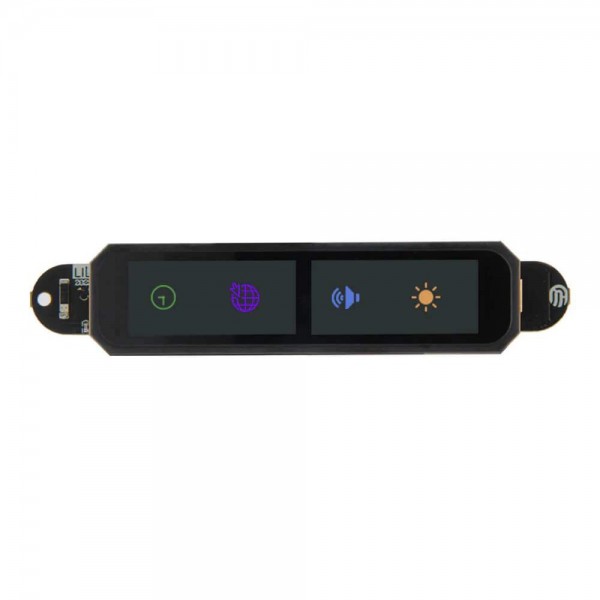

Display
Type	AMOLED
Driver	GC9D01N
Screen diagonal [inch]	1.1
Number of pixels long side	294 (per display, 588 total)
Number of pixels short side	126
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	FT6336U
Touch type	Capacitive
Battery circuit
Battery charger chip/SoC	FM4057
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-A male
IO-connector(s)	USB-A male Molex Picoblade (compatible) male
Battery connector(s)	Molex PanelMate (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna

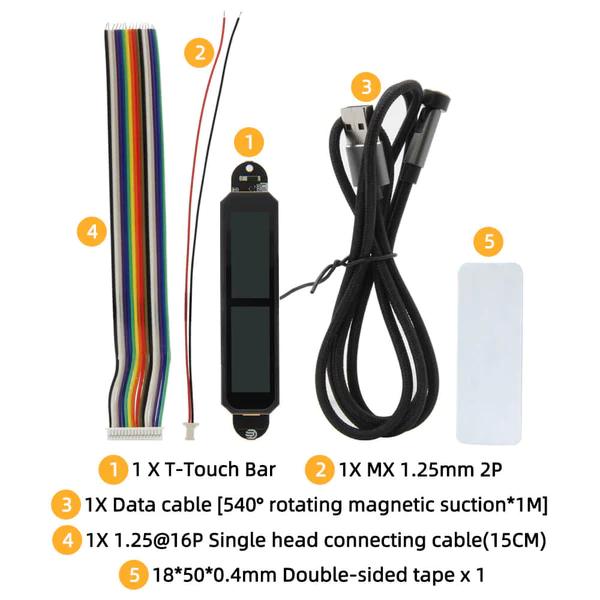

Package contents
Package contents	1x T-Touch Bar AMOLED 1x PanelMate battery cable 1x USB-A cable with special magnetic connector 1x Picoblade GPIO cable with loose wires - 16p
