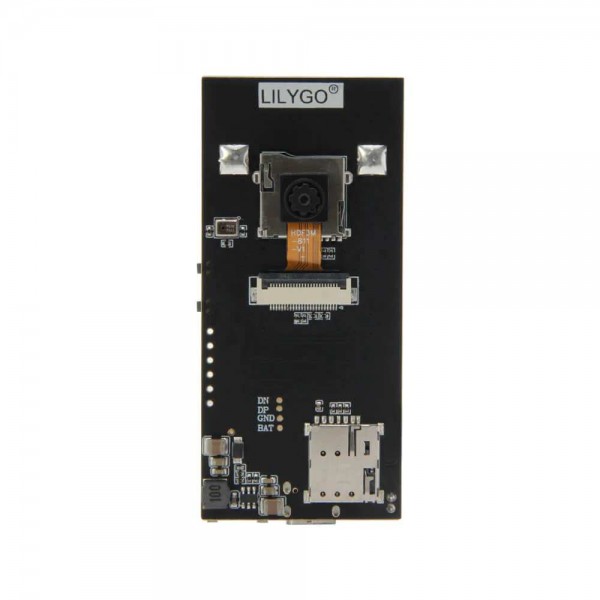

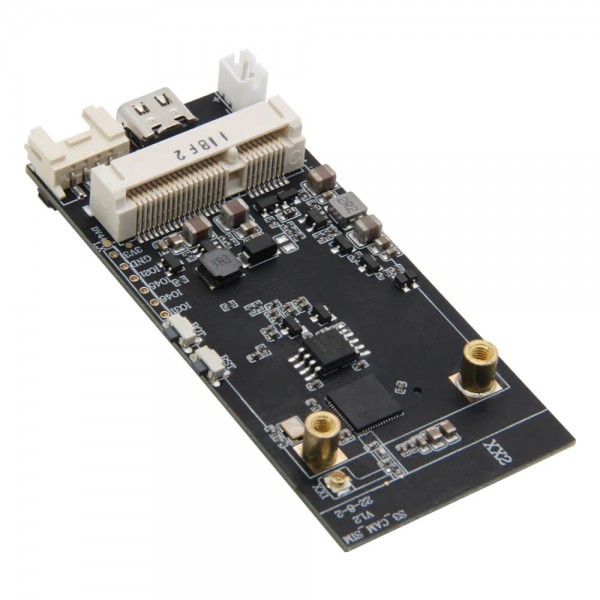

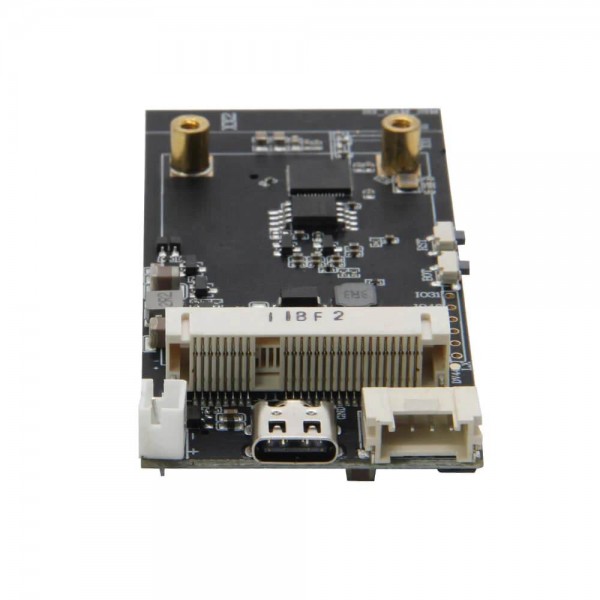

LilyGO T-SIMCAM ESP32-S3 - with OV5640 Camera
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005373
€25.25
Ex Tax: €20.87
LilyGO's TTGO T-SIMCAM is a microcontroller with camera. The board has a USB-C connector that allows it to be programmed and/or powered (USB-C cable not included). The board also has a handy PCIe slot for which various expansion modules are available: LilyGO T-PCIE
Note: The PCIe slot is only compatible with TTGO PCIE modules.
Note: The Grove connector does not have the standard pinout like products from M5Stack and Seeed Studio.
See the following page for more information: GitHub
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, LilyGO T-SIMCAM ESP32-S3 - with OV5640 Camera
, 005373
, [attridvalues_18]
, [attridnotes_45]
, [attridvalues_79]
, [attridvalues_47]
, [attridvalues_169]
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H601 |
| Features | Camera Microphone Battery charger SD-card adapter Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 16 |
| Dimension X [mm] | 78 |
| Dimension Y [mm] | 36 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 6 (Grove and through hole pins only, but note: the through hole pins conflict with the PCIE pins) |
| Maximum available hardware PWM channels | 6 |
| Maximum available analog input pins (ADC) | 0 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| Supported SD card size | Micro SD |
| Supported SIM card size | Nano-SIM (note: an extra PCIE module is required to use this) |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | OV5640 |
| Lense type | Normal |
| Number of pixels long side | 2592 |
| Number of pixels short side | 1944 |
| Sound sensor | |
| Sensor (chip(s)) | MSM261S4030H0R |
| Type | Microphone |
| Battery circuit | |
| Battery charger chip/SoC | TP4056 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 580 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | USB-C female Mini PCIe female HY2.0 (Grove) male Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | JST-PH (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| Package contents | |
| Package contents | 1x T-SIMCAM 1x Battery cable 1x Male pinheaders 2x Mounting screw for PCIE module |
