LilyGO T-SIMCAM - ESP32-S3 - with OV2640 Camera

Availability: Directly available from warehouse in Eindhoven
SKU: 004965

Based on 0 review(s) - Write a review

€16.25

Ex Tax: €13.43

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

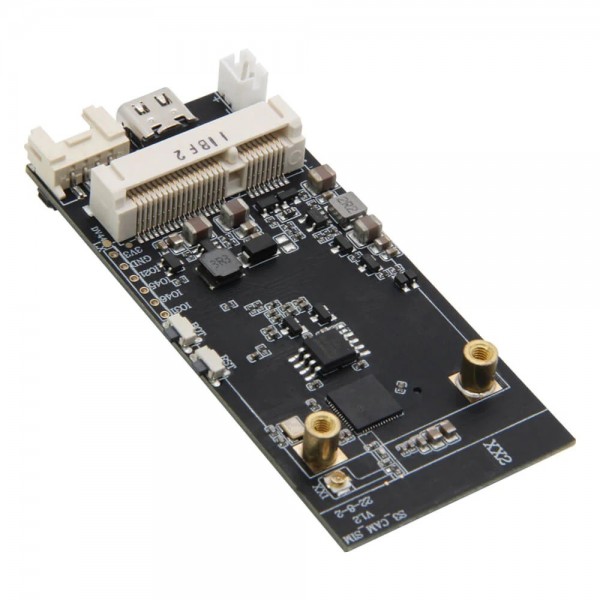

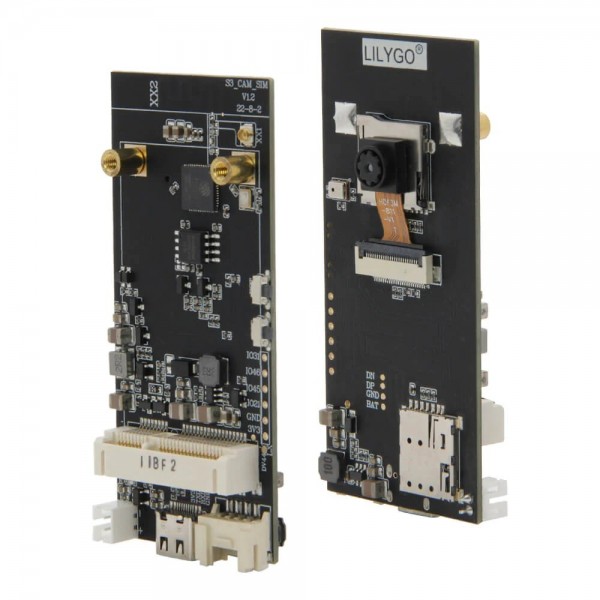

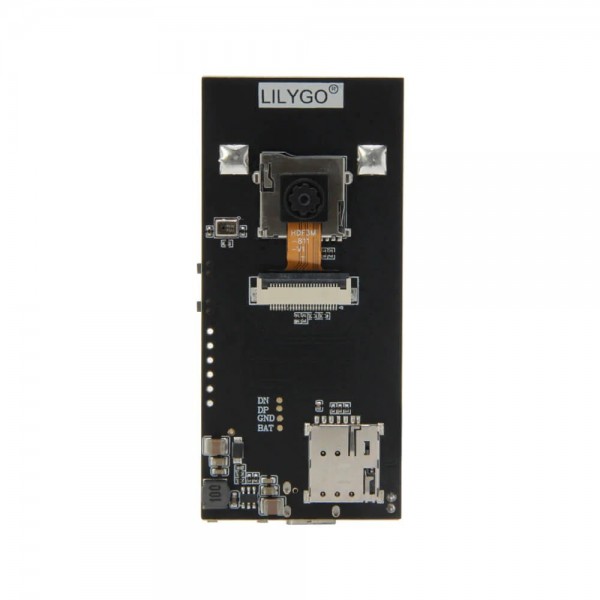

LilyGO's TTGO T-SIMCAM is a microcontroller with camera. The board has a USB-C connector that allows it to be programmed and/or powered (USB-C cable not included). The board also has a handy PCIe slot for which various expansion modules are available: LilyGO T-PCIE

Note: The PCIe slot is only compatible with TTGO PCIE modules.

Note: The Grove connector does not have the standard pinout like products from M5Stack and Seeed Studio.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-SIMCAM - ESP32-S3 - with OV2640 Camera

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-SIMCAM - ESP32-S3 - with OV2640 Camera , LILYGO-H574 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H574
Model revision	V1.2
Features	Battery charger Camera Microcontroller SD-card adapter Microphone Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	16
Dimension X [mm]	78
Dimension Y [mm]	36
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5 (lower possible via Li-Po/Li-ion battery)
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM GPIO USB CDC
Number of IO-pins	6 (Grove and through hole pins only, but note: the through hole pins conflict with the PCIE pins)
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	0
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
Supported SD card size	Micro SD
Supported SIM card size	Nano-SIM (note: an extra PCIE module is required to use this)
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Scanner/camera
Type	Camera
Sensor(chip)	OV2640
Lense type	Normal
Number of pixels long side	1632
Number of pixels short side	1220
Maximum frame rate [Hz]	60
Sound sensor
Sensor (chip(s))	MSM261S4030H0R
Type	Microphone
Battery circuit
Battery charger chip/SoC	TP4056
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	580
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female
IO-connector(s)	HY2.0 (Grove) male Through hole solder pin(s) (2.54mm) USB-C female Mini PCIe female
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents
Package contents	1x T-SIMCAM 1x Battery cable 1x Male pinheaders 2x Mounting screw for PCIE module
