LilyGO T-PicoC3 ESP32-C3 RP2040 Dual MCU - with 1.14 Inch TFT Display

Availability: Directly available from warehouse in Eindhoven
SKU: 004452

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

10 or more €11.75

20 or more €11.50

50 or more €11.25

100 or more €11.00

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

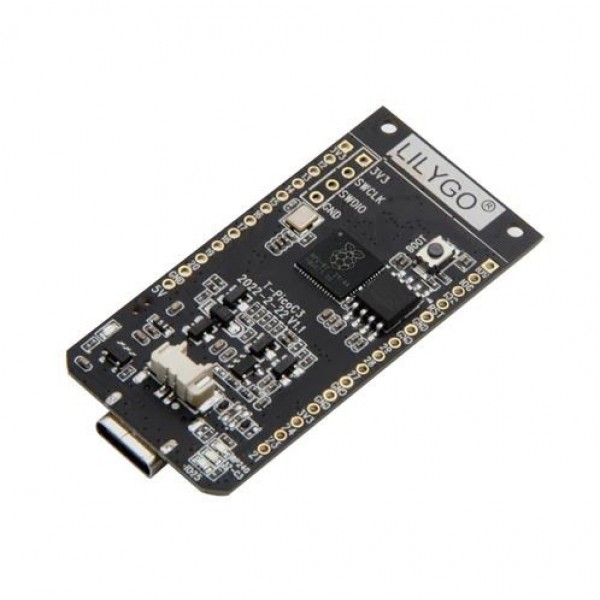

The T-PicoC3 from LilyGO is a microcontroller that uses both the ESP32-C3 and the RP2040 chip with also a built-in 1.14 inch TFT display. Thanks to the built-in USB to serial converters, both microcontrollers are easy to program, even as Arduinos. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included). Depending on the orientation of the USB cable, the ESP32-C or RP2040 can be programmed. If a blue LED lights up, the microcontroller is in RP2040 mode. By flipping the USB cable over, a green LED lights up, this is the ESP32 mode.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-PicoC3 ESP32-C3 RP2040 Dual MCU - with 1.14 Inch TFT Display

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-PicoC3 ESP32-C3 RP2040 Dual MCU - with 1.14 Inch TFT Display , LILYGO-H553 , With Wi-Fi

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H553
Model revision	V1.2
Features	Battery charger Display Microcontroller
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	53
Dimension Y [mm]	26
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12 (RP2040) 20 (ESP32-C3)
Maximum IO-pin sink current [mA]	12 (RP2040) 28 (ESP32-C3)
MCU/SoC
Manufacturer	Raspberry Pi Espressif
Chip series	RP2040 ESP32-C3
Maximum clock frequency [MHz]	133 (RP2040) 160 (ESP32-C3)
Number of cores	2 (RP2040) 1 (ESP32-C3)
Internal memory
SRAM [KB]	258 (RP2040) 400 (ESP32-C3)
PSRAM [MB]	0
Flash memory [MB]	4 (RP2040) 4 (ESP32-C3)
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO PIO USB CDC

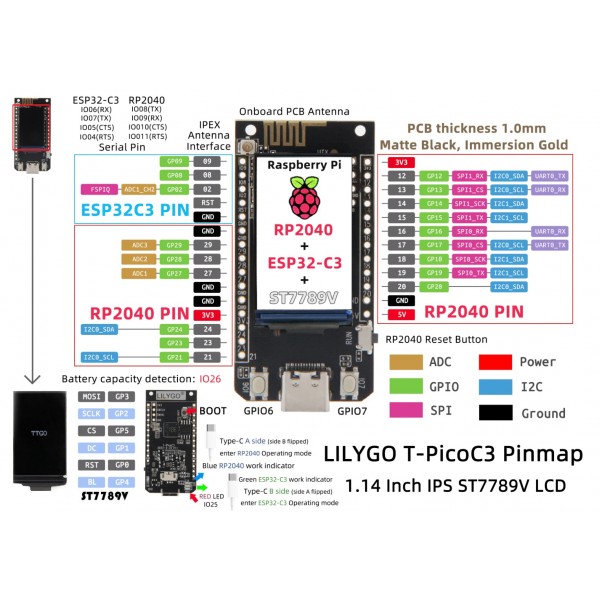

Number of IO-pins	18 (15x RP2040 GPIO, 3x ESP32-C3 GPIO)
Maximum available hardware PWM channels	18 (15x RP2040 GPIO, 3x ESP32-C3 GPIO)
Maximum available analog input pins (ADC)	4 (3x RP2040 GPIO, 1x ESP32-C3 GPIO)
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3 (2x RP2040 GPIO, 1x ESP32-C3 GPIO)
Maximum available hardware I2C interfaces	3 (2x RP2040 GPIO, 1x ESP32-C3 GPIO)
Maximum available hardware SPI interfaces	3 (2x RP2040 GPIO, 1x ESP32-C3 GPIO)
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-C3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	IPS
Driver	ST7789
Screen diagonal [inch]	1.14
Number of pixels long side	240
Number of pixels short side	135
Pixel colors	RGB
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents

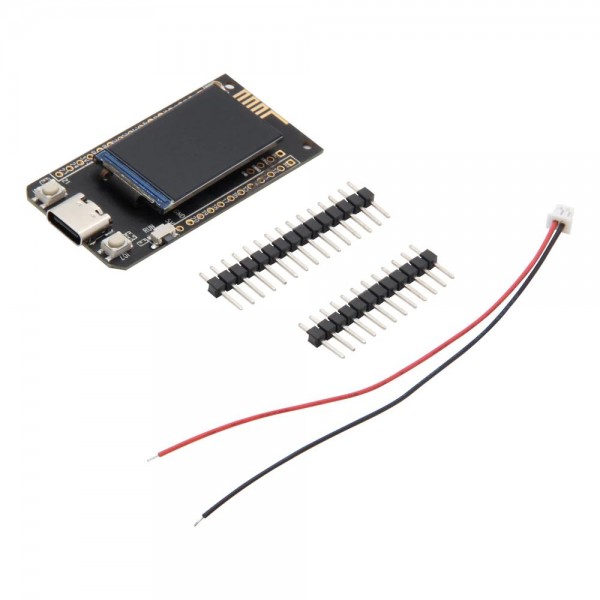

Package contents	1x T-PicoC3 1x Male pin header set 1x Battery cable
