LilyGO T-PCIE V1.2 - AXP2101 - ESP32-WROVER - 16MB

Availability: Directly available from warehouse in Eindhoven
SKU: 005717

Based on 0 review(s) - Write a review

€14.75

Ex Tax: €12.19

10 or more €14.50

20 or more €14.25

50 or more €14.00

100 or more €13.75

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

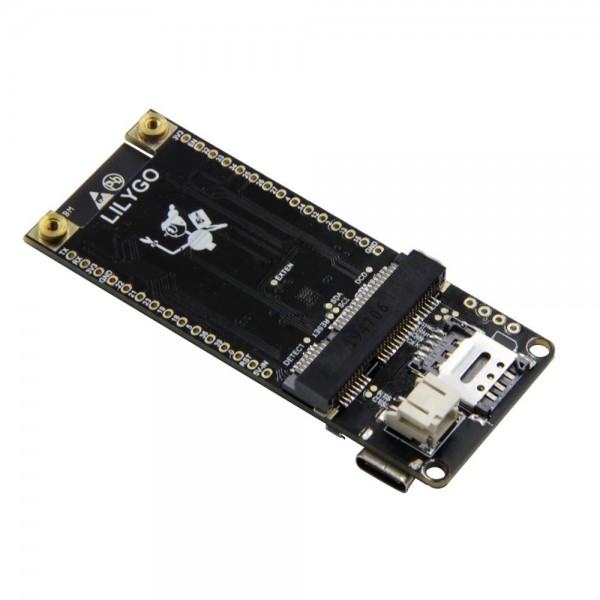

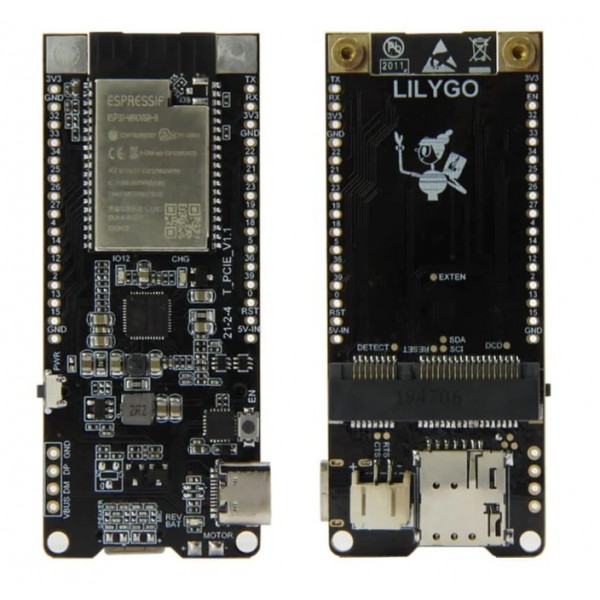

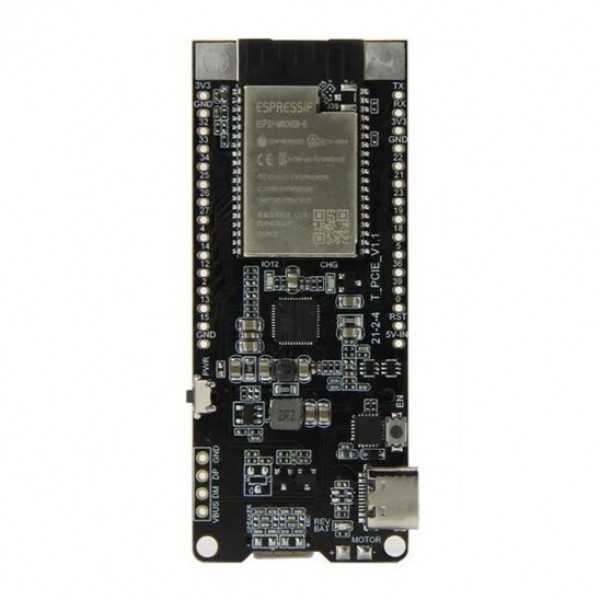

The TTGO T-PCIE from LilyGO is a microcontroller based on an ESP32. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included). The board also has a handy PCIe slot for which various expansion modules are available: LilyGO T-PCIE.
This version of the T-PCIE has a AXP2101 battery management chip.

Note: The PCIe slot is only compatible with TTGO PCIE modules.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-PCIE V1.2 - AXP2101 - ESP32-WROVER - 16MB

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-PCIE V1.2 - AXP2101 - ESP32-WROVER - 16MB , LILYGO-Q416 , With Bluetooth

Specifications

General
Manufacturer model/SKU	Q416
Model revision	V1.2
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Battery charger Battery protection circuit Microcontroller (MCU)
Brand	LilyGO TTGO

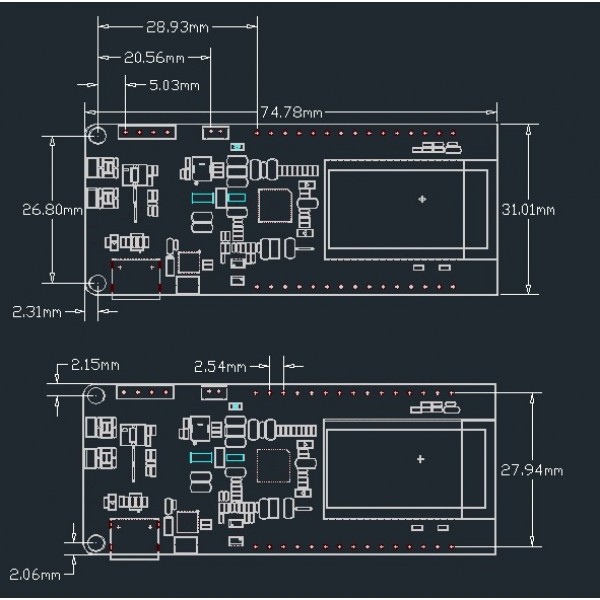

General physical appearance
Weight [g]	15
Diameter mounting hole(s) [mm]	3
Dimension Y [mm]	31
Dimension X [mm]	75
Main color	Black
Form factor	Module (general)
Mounting options	Mounting hole(s)
General electrical properties
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
MCU
Number of cores	2
Maximum clock frequency [MHz]	240
Chip series	ESP32
Manufacturer	Espressif
Internal memory
Flash memory [MB]	16
SRAM [KB]	520
PSRAM [MB]	8
EEPROM type	Emulated
Communication
Maximum available analog input pins (ADC)	15
Maximum available analog output pins (DAC)	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
Number of IO-pins	23
Maximum available hardware UART interfaces	3
Maximum available hardware PWM channels	8
Hardware interface(s)	ADC DAC GPIO I2C I2S PWM SPI UART USB CDC
USB to serial converter	CH9102F
Supported SIM card size	Nano-SIM (note: an extra PCIE module is required to use this)
Wireless communication
Wi-Fi frequency [GHz]	2.4
Bluetooth version	4.2
Interface(s)	Bluetooth Wi-Fi
Supported Bluetooth standard(s)	Classic LE
Wi-Fi chip/SoC	ESP32
Bluetooth chip/SoC	ESP32
Battery circuit
Maximum charging current [mA]	1000
Undervoltage detection (UVP) [V]	2.40
Maximum charging voltage [V]	4.2
Battery charger chip/SoC	AXP2101
Supported battery chemistry	Li-Po Li-ion
Safety features	Overcurrent Polarity Undervoltage
Adjustable charging current	Yes
Protection circuit	Yes
Connectors
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Battery connector(s)	JST-PH (compatible) male
IO-connector(s)	Mini PCIe female Through hole solder pin(s) (2.54mm) USB-C female
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Package contents

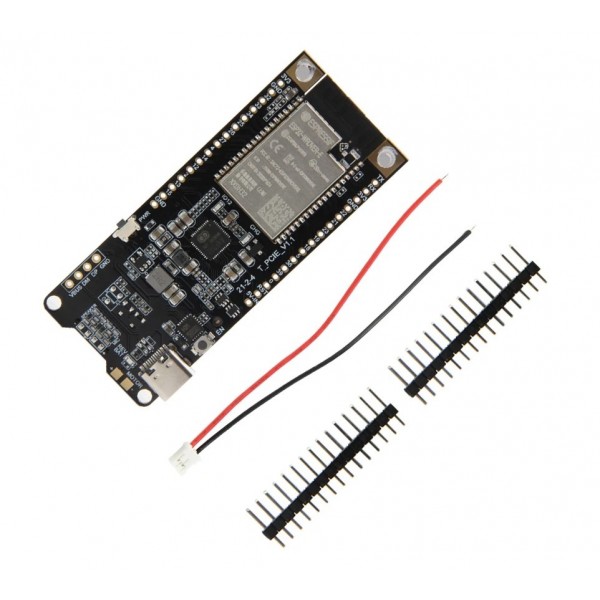

Package contents	1x T-PCIE 1x Battery cable 2x Male pin header 15p 1x male pin header 4p
