LilyGO T-HMI ESP32-S3 - 2.8 inch IPS-TFT Display - met Touchscreen

Availability: Directly available from warehouse in Eindhoven
SKU: 005268

Based on 0 review(s) - Write a review

€22.00

Ex Tax: €18.18

Qty

Add to Cart

Add to wishlist

Only 8 pieces in stock

Description
Reviews

The LilyGO T-HMI is a micrcocontroller based on an ESP32-S3R8 with a built-in TFT touch display, amongst others. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-HMI ESP32-S3 - 2.8 inch IPS-TFT Display - met Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-HMI ESP32-S3 - 2.8 inch IPS-TFT Display - met Touchscreen , LILYGO-H605 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H605
Model revision	V1.1 or V1.2
General physical appearance
Main color	Black
Weight [g]	46

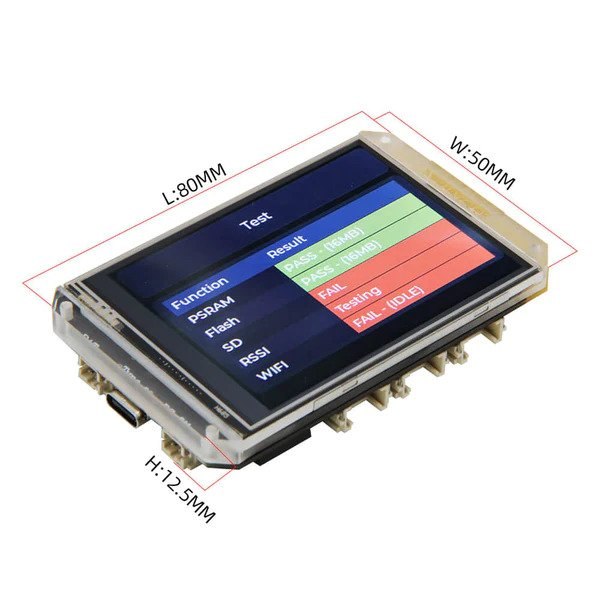

Dimension X [mm]	80
Dimension Y [mm]	51
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	7
Maximum available hardware PWM channels	7
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	TFT
Driver	ST7789V
Screen diagonal [inch]	2.8
Number of pixels long side	320
Number of pixels short side	240
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Magnetometer
Type	Field strength sensor (threshold) (reed relay)
Battery circuit
Battery charger chip/SoC	TP4056
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	580
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female JST-PH (compatible) male
IO-connector(s)	USB-C female HY2.0 (Grove) male Through hole solder pin(s) (2.54mm)
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)

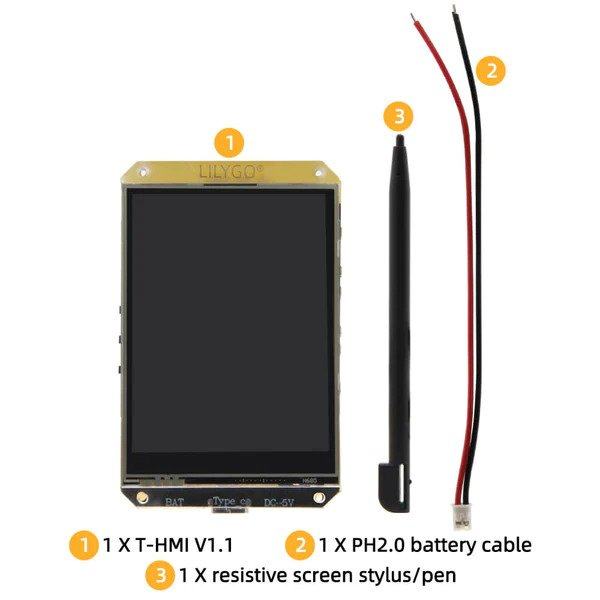

Package contents
Package contents	1x T-HMI 1x Grove cable 1x Batterij cable 1x Stylus
