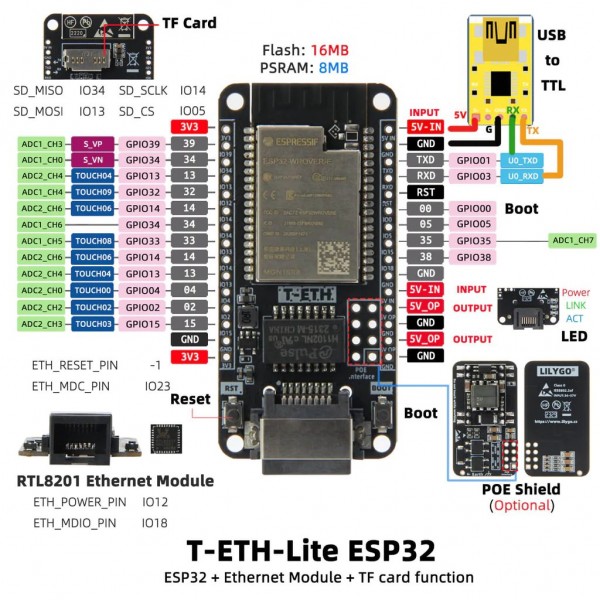

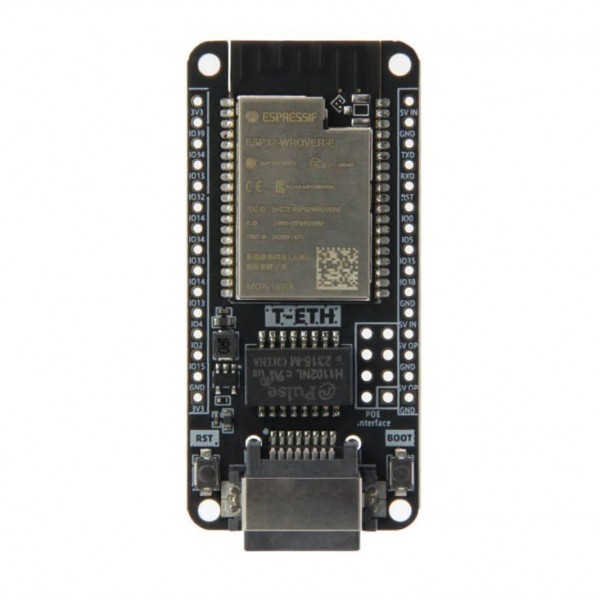

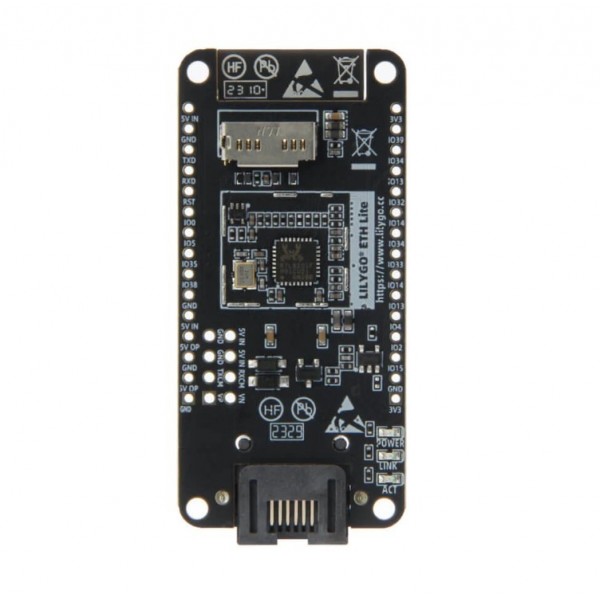

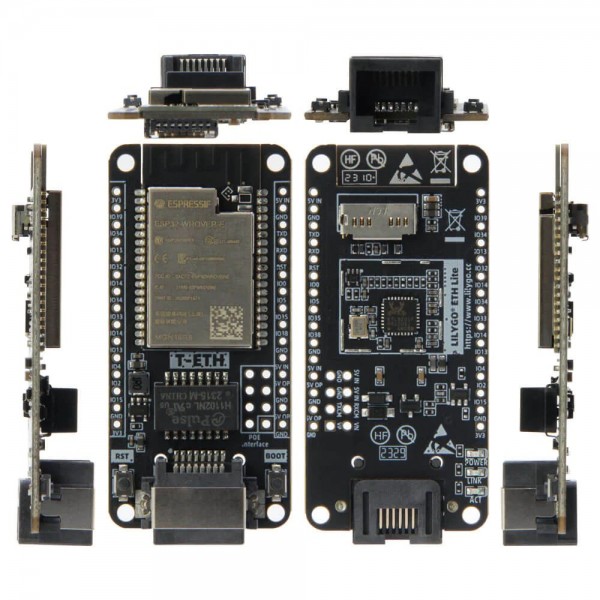

The T-ETH-Lite from LilyGO is a microcontroller based on ESP32-WROVER-E. The board has an ethernet port and a micro-SD card slot.

Note: This board has no USB port or USB to serial converter. To program the board, an external USB to serial converter is required.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-ETH-Lite ESP32 - RTL8201

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-ETH-Lite ESP32 - RTL8201 , LILYGO-H673 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H673
Features	SD-card adapter Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	10

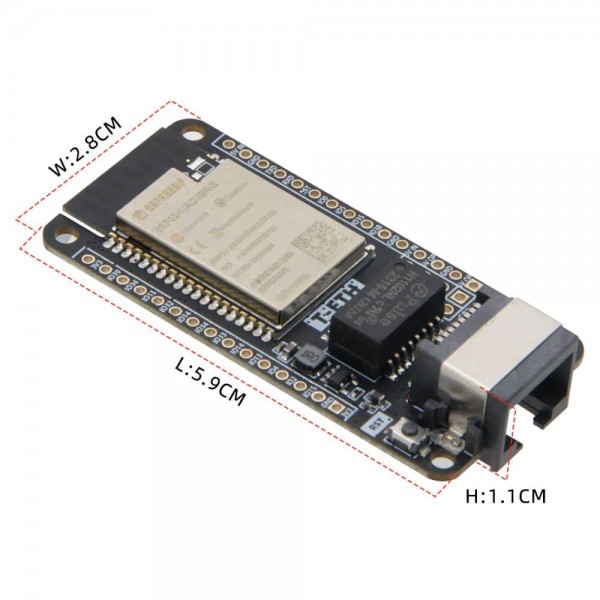

Dimension X [mm]	59
Dimension Y [mm]	28
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.5
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC DAC I2C I2S PWM SPI GPIO UART Ethernet
Number of IO-pins	15
Maximum available hardware PWM channels	11
Maximum available analog input pins (ADC)	12
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	None
Ethernet chip/SoC	RTL8152F
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	RJ45 female Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents

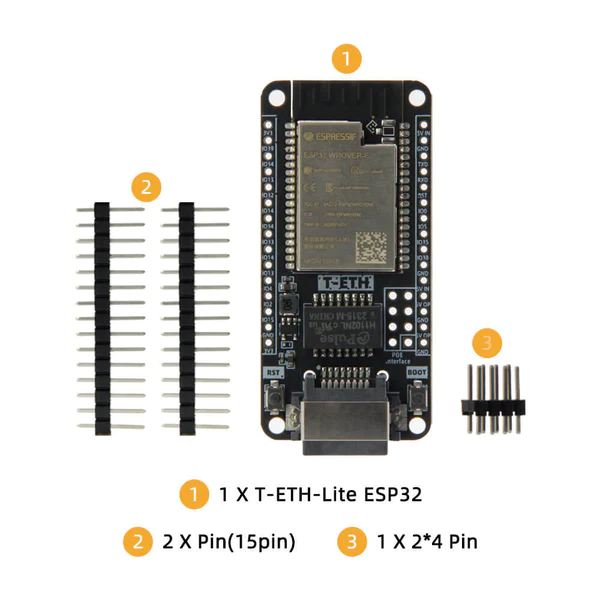

Package contents	1x T-ETH-Lite ESP32 2x Pin header male 15p 1x Pin header male 2x4p
