LilyGO T-Embed - White

Availability: Directly available from warehouse in Eindhoven
SKU: 004984

Based on 0 review(s) - Write a review

€35.00

Ex Tax: €28.93

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

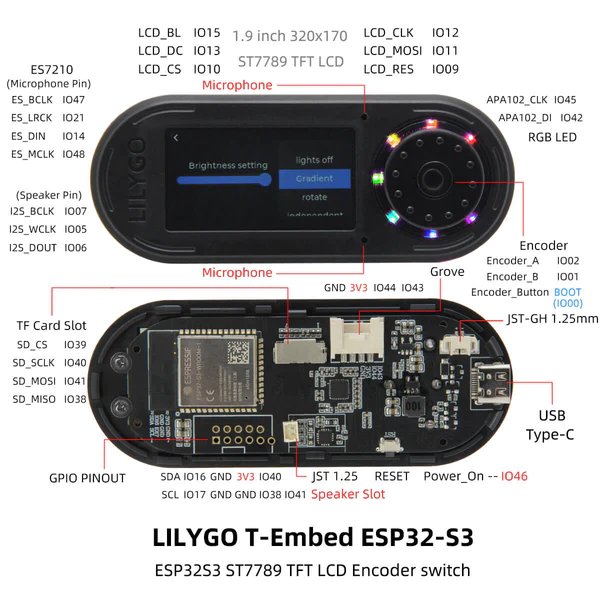

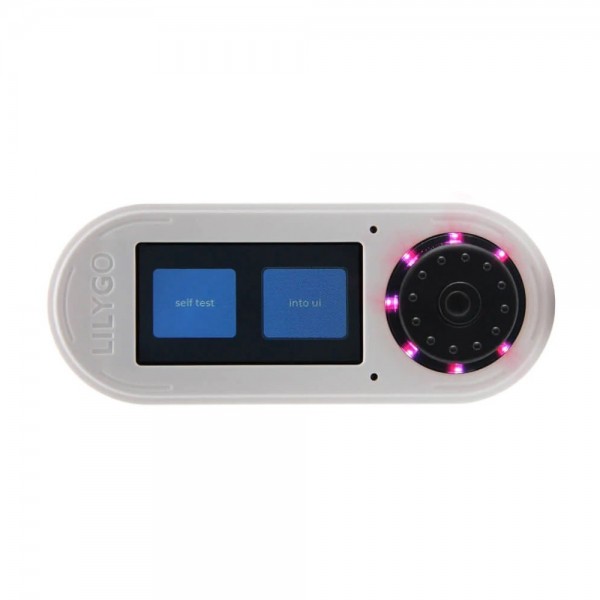

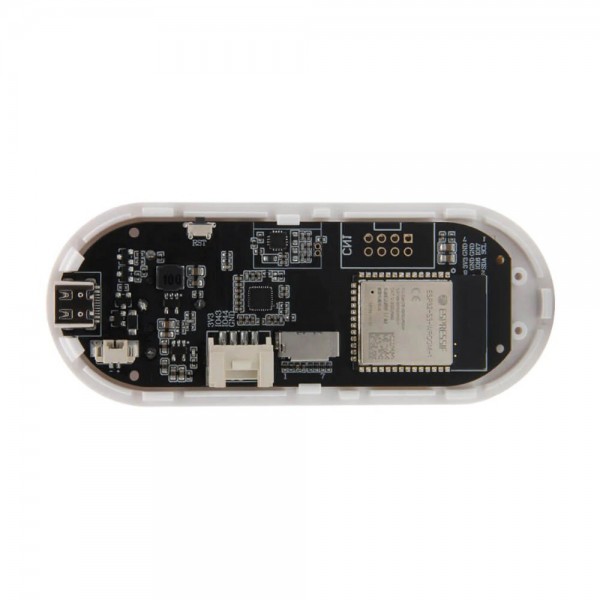

LilyGO's T-Embed is a microcontroller board with a lot of features, such as an IPS display, rotary encoder, speaker and more. This version has a white front and comes without a case on the back.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-Embed - White

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-Embed - White , LILYGO-K201 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	K201
Features	Display Microphone Digital LED(s) Rotary encoder Audio amplifier Battery charger SD-card adapter Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	White
Weight [g]	23

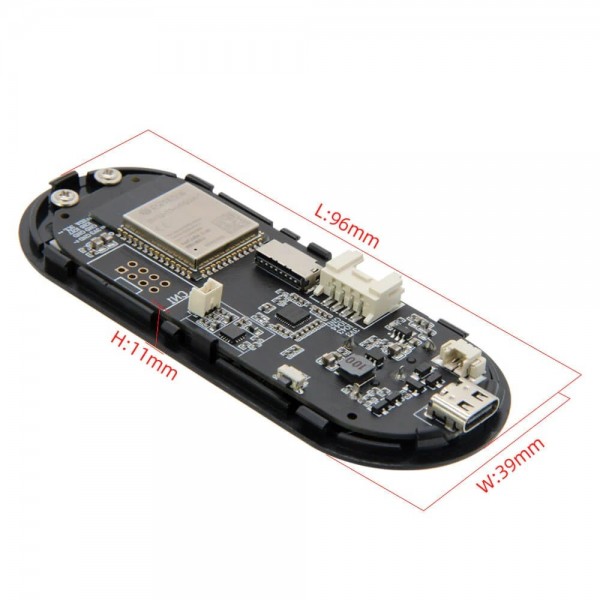

Dimension X [mm]	98
Dimension Y [mm]	39
Mounting options	Clamp
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5 (lower possible via Li-ion/Li-po battery)
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	9
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	IPS
Driver	ST7789
Screen diagonal [inch]	1.9
Number of pixels long side	320
Number of pixels short side	170
Pixel colors	RGB
LED
LED (driver) chip	APA102
Number of LEDs	8
Rotary encoder
Encoder type	Incremental
Encoder technology	Mechanical
Number of detent positions	24
Sound sensor
Sensor (chip(s))	ES7210 MSM381A3729H9CP
Type	Microphone
Sensor technology	MEMS
Sensitivity [dB]	-38
SNR [dB]	65
Audio amplifier
Amplifier chip	MAX98357
Number of (normal) channels	1
Maximum power per (normal) channel [W]	1.0
Battery circuit
Battery charger chip/SoC	TP4065
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	550
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female
IO-connector(s)	USB-C female HY2.0 (Grove) male Through hole solder pin(s) (2.54mm)
Battery connector(s)	Molex Picoblade (compatible) male
Speaker connector(s)	Molex Picoblade (compatible) female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x T-Embed 1x Speaker 1x Male pinheader set 1x Male flatcable header 2x4p 1x 8p Flatcable 1x Battery cable
