LilyGO T-Dongle-S3 - ESP32-S3
- Availability: 2-4 Weeks
- SKU: 004994
€14.00
Ex Tax: €11.57
Your shopping cart is empty!
This T-Dongle module from LilyGO is a microcontroller based on an ESP32-S3 chip. This board has support for Wi-Fi, Bluetooth and an SD card slot. Thanks to the built-in USB host controller, you can use it to create a wireless keyboard, for example.
See the following page for more information: GitHub
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | K193 |
| Features | Display Enclosure SD-card adapter Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Colorless/transparent |
| Weight [g] | 8 |

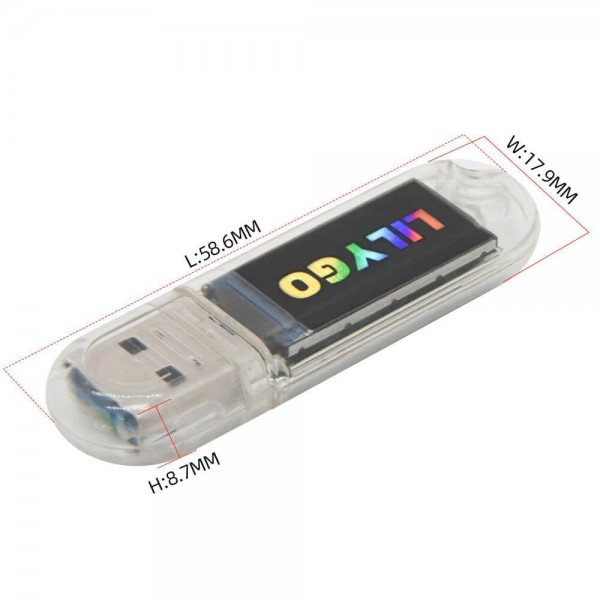

| Dimension X [mm] | 59 |
| Dimension Y [mm] | 18 |
| Dimension Z [mm] | 9 |
| Mounting options | Clamp |
| Form factor | USB stick Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 0 |
| Maximum available hardware PWM channels | 0 |
| Maximum available analog input pins (ADC) | 0 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 0 |
| Maximum available hardware I2C interfaces | 0 |
| Maximum available hardware SPI interfaces | 0 |

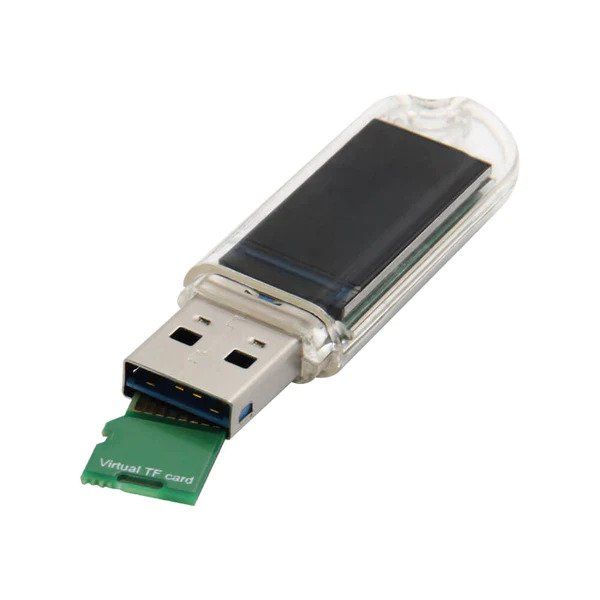

| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | IPS |
| Driver | ST7735S |
| Screen diagonal [inch] | 0.96 |
| Number of pixels long side | 160 |
| Number of pixels short side | 80 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Connectors | |
| Power supply connector(s) | USB-A male |
| IO-connector(s) | USB-A male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x T-Dongle-S3 1x USB cap 1x Dummy SD card |
