LilyGO T-Display-S3 AMOLED ESP32-S3 - with 1.91 inch AMOLED Display and Touchscreen - Soldered Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 005920

Based on 0 review(s) - Write a review

€36.00

Ex Tax: €29.75

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

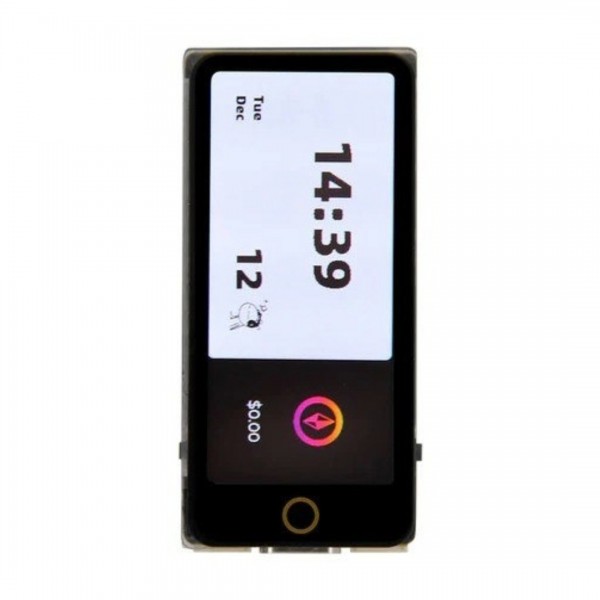

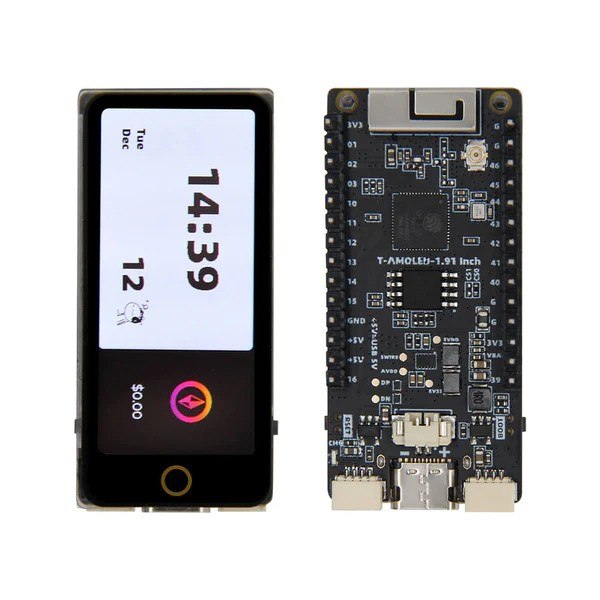

The LilyGO TTGO T-Display-S3 AMOLED is a microcontroller based on an ESP32-S3 with a built-in AMOLED display with touchscreen. It is easy to program, also like an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-Display-S3 AMOLED ESP32-S3 - with 1.91 inch AMOLED Display and Touchscreen - Soldered Headers

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-Display-S3 AMOLED ESP32-S3 - with 1.91 inch AMOLED Display and Touchscreen - Soldered Headers , LILYGO-H705 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H705
Features	Battery charger Display Microcontroller Touchscreen Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	18

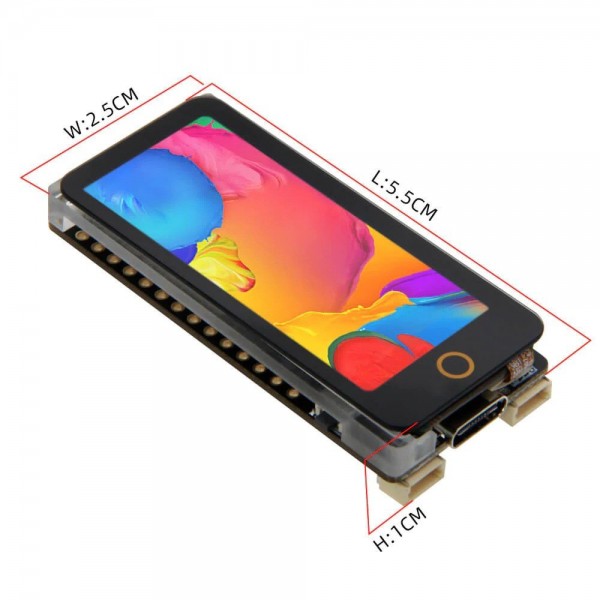

Dimension X [mm]	55
Dimension Y [mm]	26
Mounting options	Pin headers
Form factor	Module (general) T-Display layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication

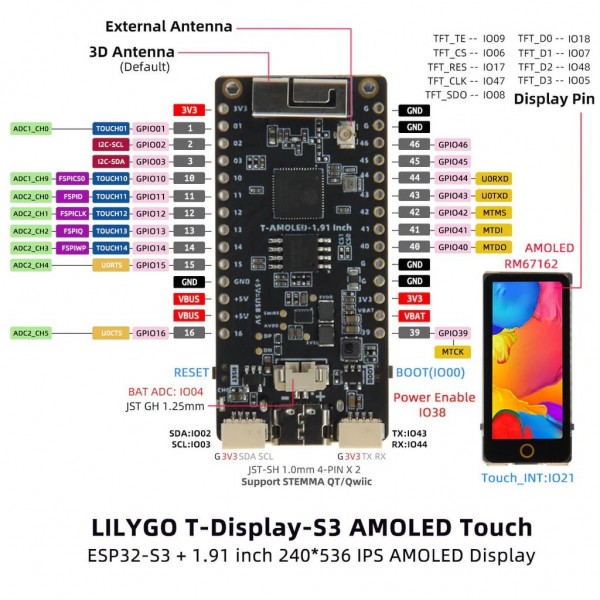

Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	18
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	10
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	AMOLED
Driver	RM67162
Screen diagonal [inch]	1.91
Number of pixels long side	536
Number of pixels short side	240
Display shape	Rectangular
Pixel colors	RGB
Maximum viewing angle [°]	178
Touchscreen
Touchscreen controller	CST816
Touch type	Capacitive
Multi-touch support	No
Battery circuit
Battery charger chip/SoC	TP4065
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	JST-SH (compatible) male Pin header male (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents
Package contents	1x T-Display-S3 AMOLED 1x Battery Cable
