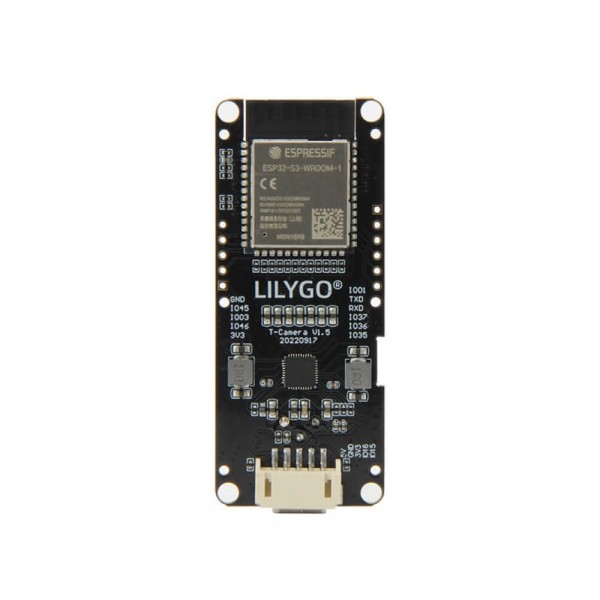

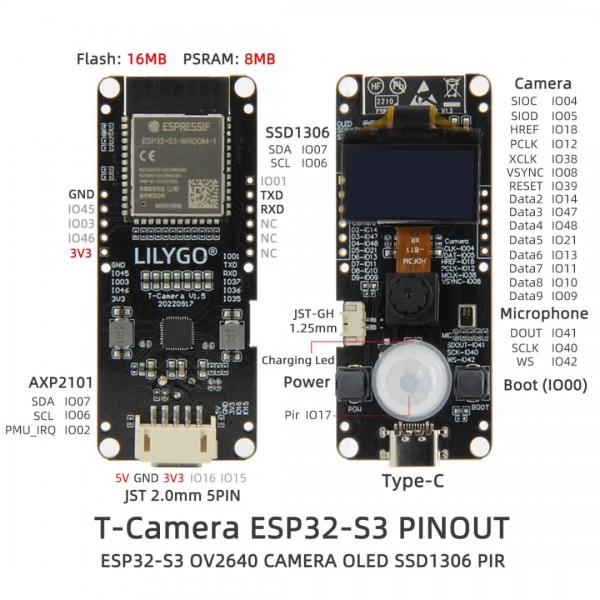

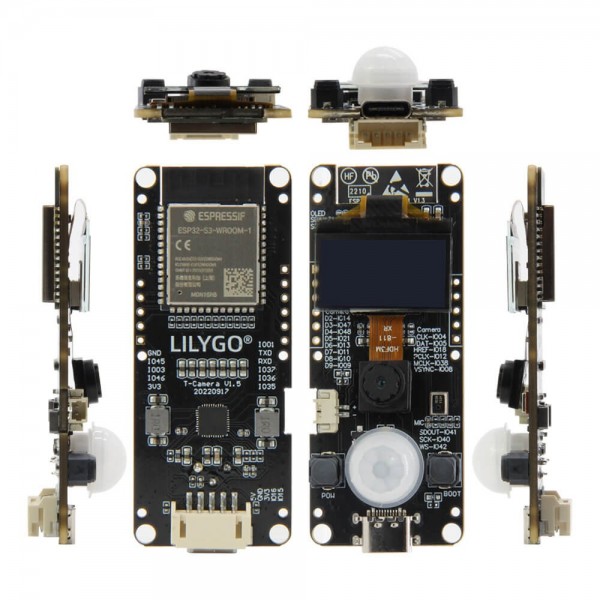

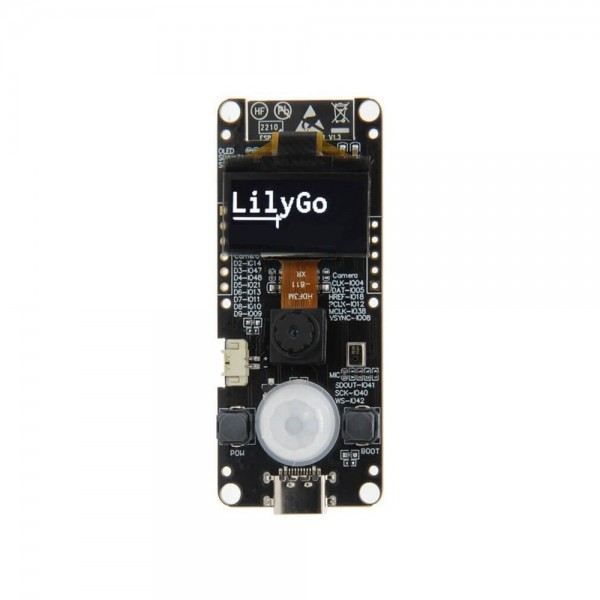

LilyGO T-Camera S3 OV5640 - ESP32-S3
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005188
€29.00
Ex Tax: €23.97
A development board based on an ESP32-S3 microcontroller which has various sensors, including a camera and microphone.
See the following page for more information: GitHub
Report this review.
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H626 |
| Model revision | V1.6 |
| Features | Battery charger Display Camera Microcontroller Object detection sensor Battery protection circuit Microphone Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 14 |
| Dimension X [mm] | 68 |
| Dimension Y [mm] | 28 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.3 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 11 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 4 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | OLED |
| Driver | SSD1306 |
| Screen diagonal [inch] | 0.96 |
| Number of pixels long side | 128 |
| Number of pixels short side | 64 |
| Display shape | Rectangular |
| Pixel colors | White |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | OV5640 |
| Lense type | Normal |
| Number of pixels long side | 2592 |
| Number of pixels short side | 1944 |
| Sound sensor | |
| Sensor (chip(s)) | MSM261S4030H0 |
| Type | Microphone |
| Sensor technology | MEMS |
| Object detection sensor | |
| Type | PIR |
| Detection type | Motion |
| Adjustable detection distance | No |
| Adjustable sensitivity | No |
| Adjustable delay time | No |
| Battery circuit | |
| Battery charger chip/SoC | AXP2101 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 1000 |
| Adjustable charging current | Yes (via I2C) |
| Protection circuit | Yes |
| Battery protection chip/SoC | AXP2101 |
| Safety features | Overcurrent Polarity Undervoltage |
| Undervoltage detection (UVP) [V] | 2.40 |
| Connectors | |
| Power supply connector(s) | JST-PH (compatible) male USB-C female |
| IO-connector(s) | JST-PH (compatible) male Through hole solder pin(s) (2.54mm) USB-C female |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x T-Camera S3 1x GPIO connector cable (fits the JST-PH connector) 1x Molex Picoblade battery cable 1x Male pin header 5p 1x Male pin header 6p |
