  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003559
€40.50
Ex Tax: €33.47

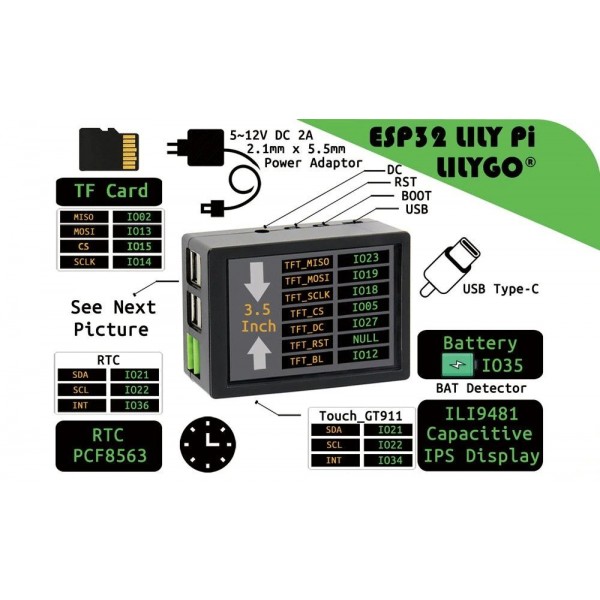

The LilyGO LILY Pi is based on the ESP32 and has the form factor of a Raspberry Pi. This LILY Pi comes with a display with touchscreen and a built-in relay. It is easy to program via the Arduino IDE.

Note: The USB ports are connected directly to the GPIO pins of the ESP32, so they cannot be used as standard USB ports.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO LILY Pi ESP32 - with 3.5 inch IPS Capacitive Touch Screen

This product has 0 review(s) in total.

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU Q309
Features RTC
Display
Enclosure
Touchscreen
Electric switch
SD-card adapter
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 118
Dimension X [mm] 91
Dimension Y [mm] 62
Dimension Z [mm] 31
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 12
(via DC-jack)
5
(via USB-C)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC

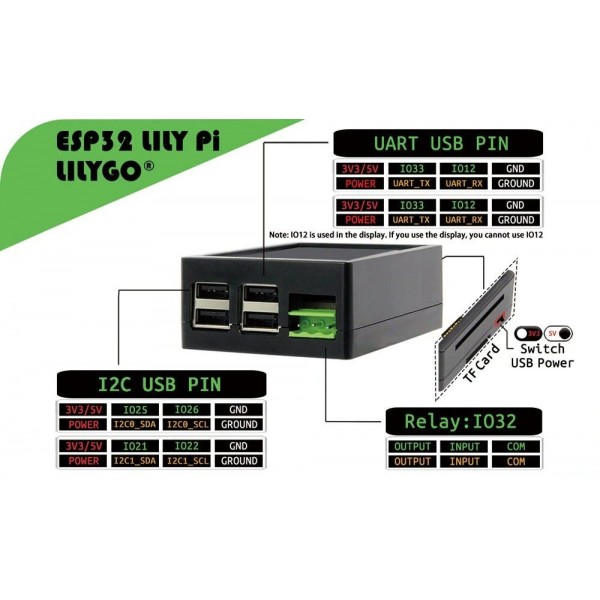

Available GPIO pins 12, 21, 22, 25, 26, 33
(via USB-A ports)
Number of IO-pins 6
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter CH9102F
(or CP2104)
Supported SD card size Micro SD
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic

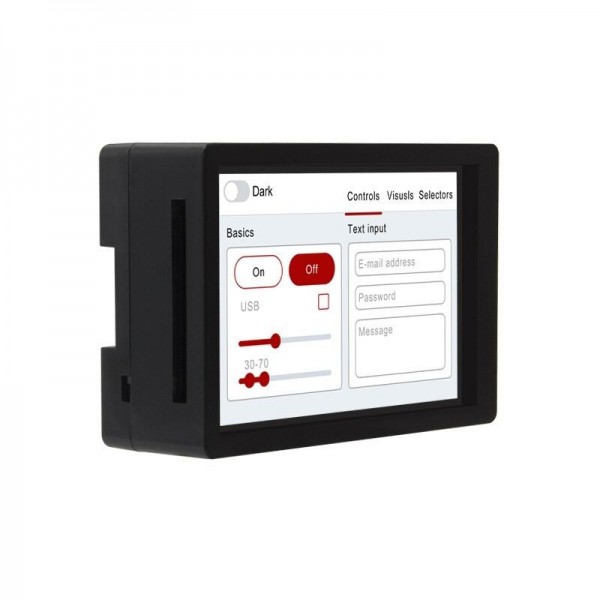

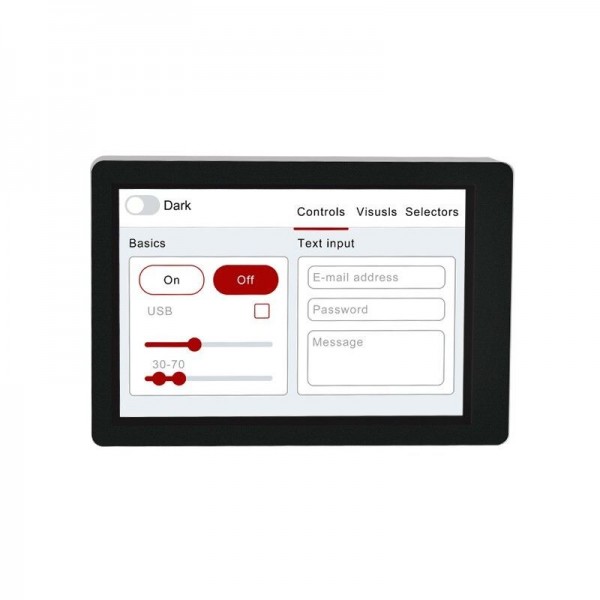

Display
Type IPS
Driver ILI9481
Screen diagonal [inch] 3.5
Number of pixels long side 480
Number of pixels short side 320
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller GT911
Touch type Capacitive
RTC
RTC chip PCF8563
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NC (normally closed)
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 2

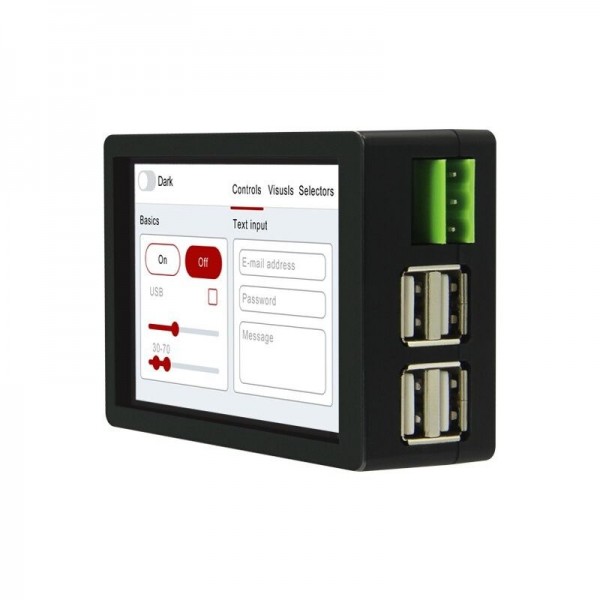

Connectors
Power supply connector(s) USB-C female
DC-jack 5.5/2.1mm female
IO-connector(s) USB-A female
USB-C female
Switch connector(s) Detachable block male (EDG-5.08)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Plastic (unknown material)

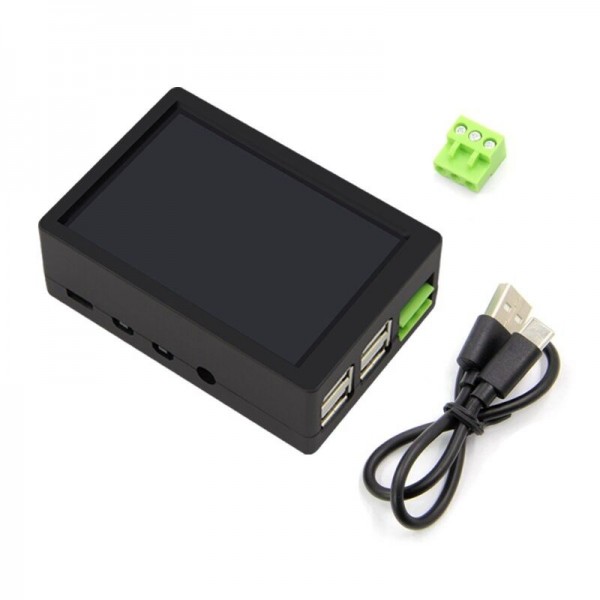

Package contents
Package contents 1x USB cable
1x Terminal block for detachable screw terminal
1x LilyGO LILY Pi
