Name: Jingcai ESP32-8048S050C-I - 5 inch IPS Display 800*480 pixels with Capacitive Touchscreen - ESP32-S3 - ESP32-8048S050C-I
SKU: 006084
Price: 36.5 EUR
Availability: InStock

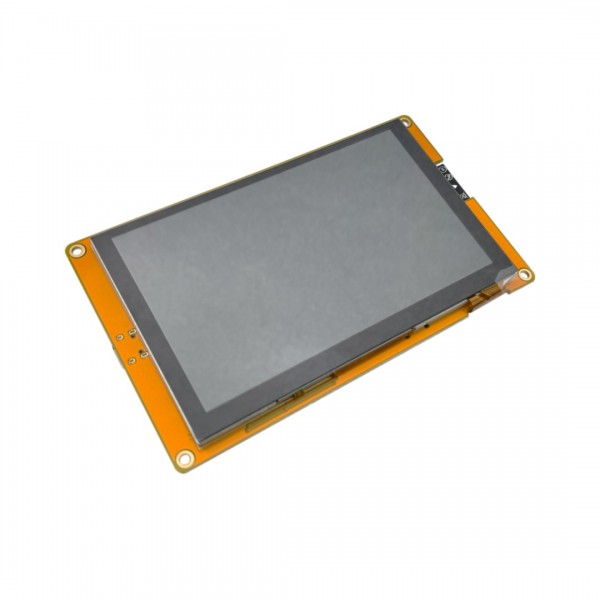

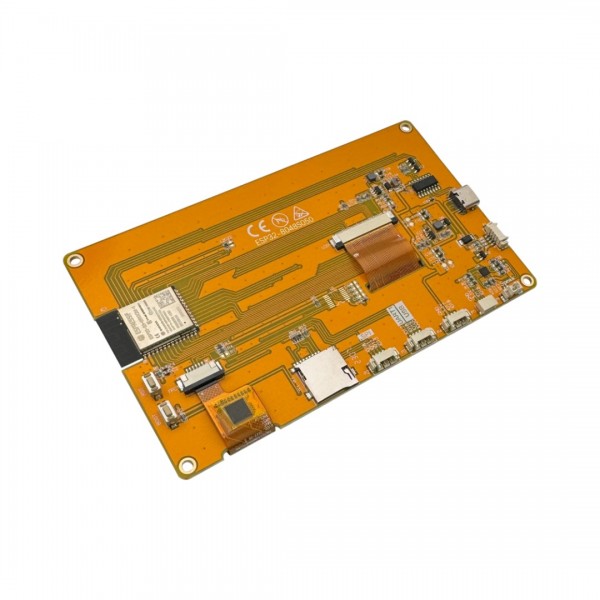

Jingcai ESP32-8048S050C-I - 5 inch IPS Display 800*480 pixels with Capacitive Touchscreen - ESP32-S3

Availability: Directly available from warehouse in Eindhoven
SKU: 006084

Based on 0 review(s) - Write a review

€36.50

Ex Tax: €30.17

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

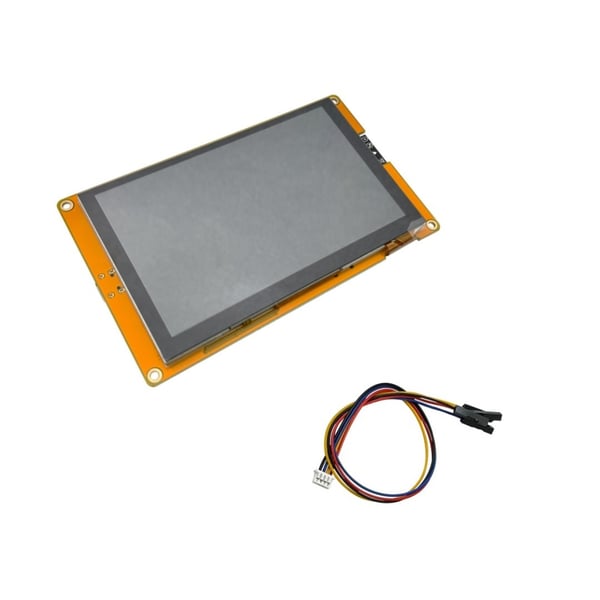

A 5 inch TFT display with touchscreen based on an ESP32-S3 microcontroller. It is easy to program via the USB-C connector, including via the Arduino IDE. One cable for the GPIO pins is included, to use all pins additional cables can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 4p - 15cm.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Jingcai ESP32-8048S050C-I - 5 inch IPS Display 800*480 pixels with Capacitive Touchscreen - ESP32-S3

Average Rating:

This product has 0 review(s) in total.

Arduino IDE example: 006084_006084_Jingcai_ESP32_8048S050C_I_simple_GT911_touch.ino

More documents: 006084_5.0inch_ESP32-8048S050-complete.zip

Tags: Jingcai ESP32-8048S050C-I - 5 inch IPS Display 800*480 pixels with Capacitive Touchscreen - ESP32-S3 , ESP32-8048S050C-I , With Bluetooth

Specifications

General
Brand	Jingcai Intelligent
Manufacturer model/SKU	ESP32-8048S050C_I
Model revision	V1.2 or V1.3
Norm conformity	RoHS
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display Microcontroller (MCU) Touchscreen SD-card adapter Audio amplifier Programmable button(s)
General physical appearance
Main color	Yellow
Weight [g]	129
Dimension X [mm]	137
Dimension Y [mm]	84
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	7
Maximum available hardware PWM channels	7
Maximum available analog input pins (ADC)	7
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	CH340C
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	IPS
Driver	ST7262
Screen diagonal [inch]	5
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	GT911
Touch type	Capacitive
Multi-touch support	Yes (5 points)
Audio amplifier
Amplifier chip	MAX98357
Number of (normal) channels	1
Maximum power per (normal) channel [W]	3.2 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	4
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Molex Picoblade (compatible) male USB-C female
IO-connector(s)	JST-SH (compatible) male Molex Picoblade (compatible) male USB-C female
Speaker connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna

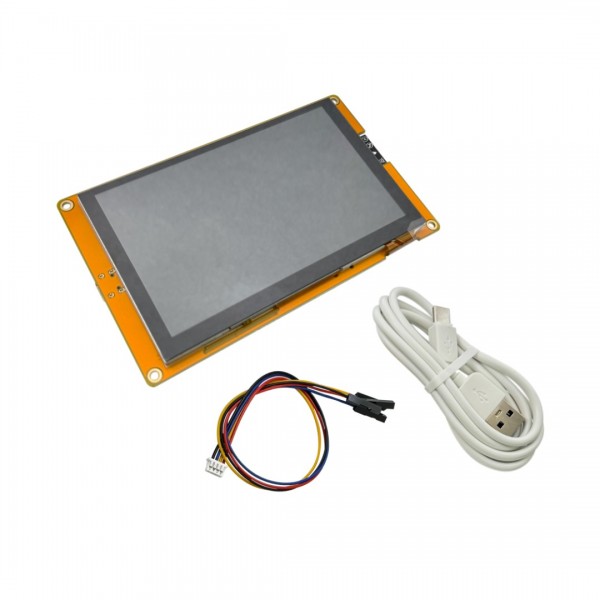

Package contents
Package contents	1x ESP32-8048S050C_I 1x Molex Picoblade to DuPont female 4p cable 1x USB-A to USB-C cable
