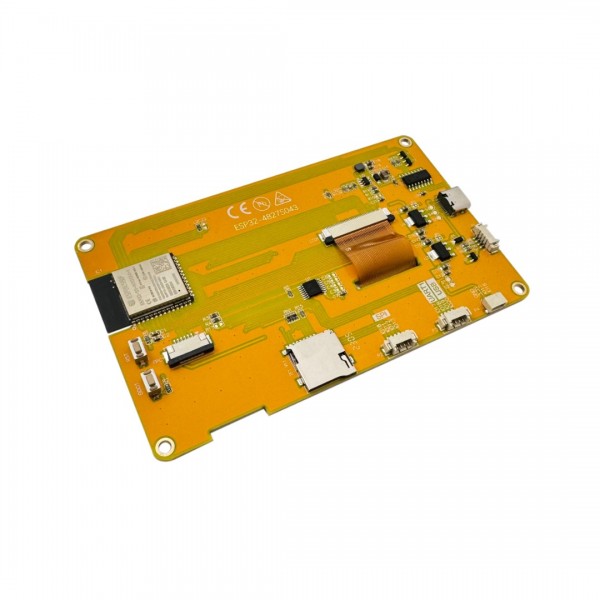

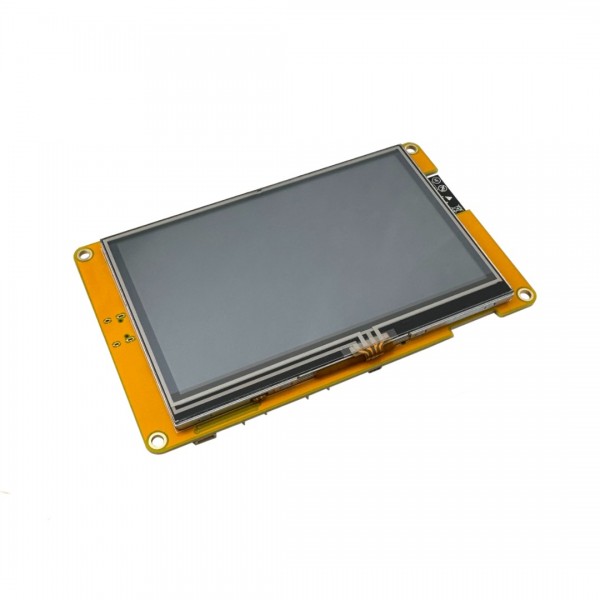

Jingcai ESP32-4827S043R - 4.3 inch TFT-LCD Display 480*272 pixels with Resistive Touchscreen - ESP32-S3

Availability: Directly available from warehouse in Eindhoven
SKU: 005636

Based on 0 review(s) - Write a review

€21.50

Ex Tax: €17.77

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A 4.3 inch TFT display with touchscreen based on an ESP32-S3 microcontroller. It is easy to program via the USB-C connector, including via the Arduino IDE. One cable for the GPIO pins is included, to use all pins additional cables can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 4p - 15cm.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Jingcai ESP32-4827S043R - 4.3 inch TFT-LCD Display 480*272 pixels with Resistive Touchscreen - ESP32-S3

Average Rating:

This product has 0 review(s) in total.

Arduino IDE example:

Specifications

General
Brand	Jingcai Intelligent
Manufacturer model/SKU	ESP32-4827S043R
Model revision	V1.2
Norm conformity	RoHS
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display Touchscreen SD-card adapter Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Yellow
Weight [g]	94
Dimension X [mm]	123
Dimension Y [mm]	74
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	7
Maximum available hardware PWM channels	7
Maximum available analog input pins (ADC)	7
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	CH340C
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	TFT
Driver	ILI6485
Screen diagonal [inch]	4.3
Number of pixels long side	480
Number of pixels short side	272
Display shape	Rectangular
Pixel colors	RGB
Maximum viewing angle [°]	120
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	USB-C female Molex Picoblade (compatible) male
IO-connector(s)	USB-C female JST-SH (compatible) male Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna

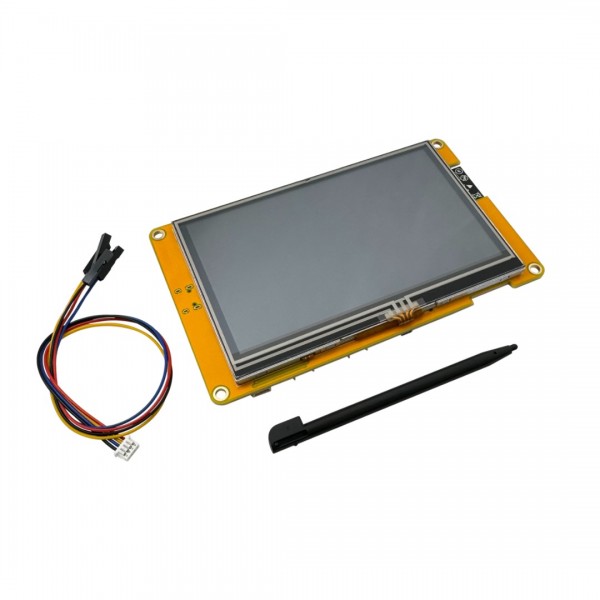

Package contents
Package contents	1x ESP32-4827S043R 1x Picoblade to DuPont female 4p cable 1x Stylus
