Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32

Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
Jingcai ESP32-3248S035C - 3.5 inch TFT Display 320*480 pixels with Capacitive Touchscreen - ESP32
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006085
€18.75
Ex Tax: €15.50

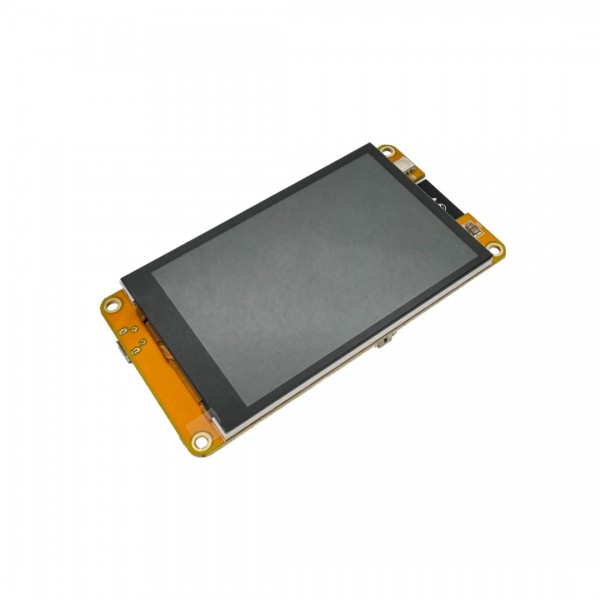

A 3.5 inch TFT display with touchscreen based on an ESP32 microcontroller. It is easy to program via the micro-USB connector, including via the Arduino IDE. One cable for the GPIO pins is included, to use all pins additional cables can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 4p - 15cm.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Specifications

General
Manufacturer model/SKU ESP32-3248S035C
Model revision V1.4
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features Audio amplifier
Display
Light sensor
Microcontroller (MCU)
Programmable button(s)
SD-card adapter
Touchscreen
Brand Jingcai Intelligent
Norm conformity RoHS
General physical appearance
Dimension X [mm] 101
Diameter mounting hole(s) [mm] 3.2
Dimension Y [mm] 55
Weight [g] 57
Form factor Module (general)
Mounting options Mounting hole(s)
Main color Yellow
General electrical properties
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
MCU
Number of cores 2
Maximum clock frequency [MHz] 240
Chip series ESP32
Manufacturer Espressif
Internal memory
PSRAM [MB] 0
Flash memory [MB] 4
SRAM [KB] 520
EEPROM type Emulated
Communication
Maximum available analog output pins (DAC) 0
Maximum available hardware SPI interfaces 0
Maximum available analog input pins (ADC) 1
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware PWM channels 2
Number of IO-pins 3
Hardware interface(s) ADC
GPIO
I2C
I2S
PWM
UART
USB CDC
USB to serial converter CH340C
Supported SD card size Micro SD
Wireless communication
Wi-Fi frequency [GHz] 2.4
Bluetooth version 4.2
Interface(s) Bluetooth
Wi-Fi
Supported Bluetooth standard(s) Classic
LE
Wi-Fi chip/SoC ESP32
Bluetooth chip/SoC ESP32
Display
Maximum viewing angle [°] 120
Screen diagonal [inch] 3.5
Number of pixels short side 320
Number of pixels long side 480
Display shape Rectangular
Pixel colors RGB
Driver ST7796
Type TFT
Touchscreen
Touch type Capacitive
Touchscreen controller GT911
Multi-touch support Yes
(5 points)
Light sensor
Sensor (chip) LDR
Light sensor type Light intensity
Measurable light Visible
Audio amplifier
Maximum power per (normal) channel [W] 0.5
(@4Ω)
Number of (normal) channels 1
Minimum speaker impedance per (normal) channel [Ω] 3
Maximum speaker impedance per (normal) channel [Ω] 8
Amplifier chip NS8002
Connectors
Wi-Fi/Bluetooth antenna connector Built-in antenna
Power supply connector(s) Micro USB female
Molex Picoblade (compatible) male
IO-connector(s) Micro USB female
Molex Picoblade (compatible) male
Speaker connector(s) Molex Picoblade (compatible) male
Package contents

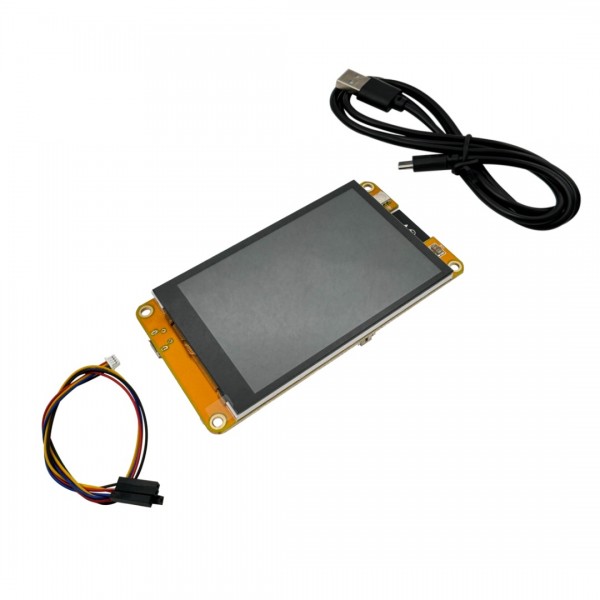

Package contents 1x ESP32-3248S035C
1x Molex Picoblade to DuPont female 4p cable
1x USB-A to Micro-USB cable 1m
