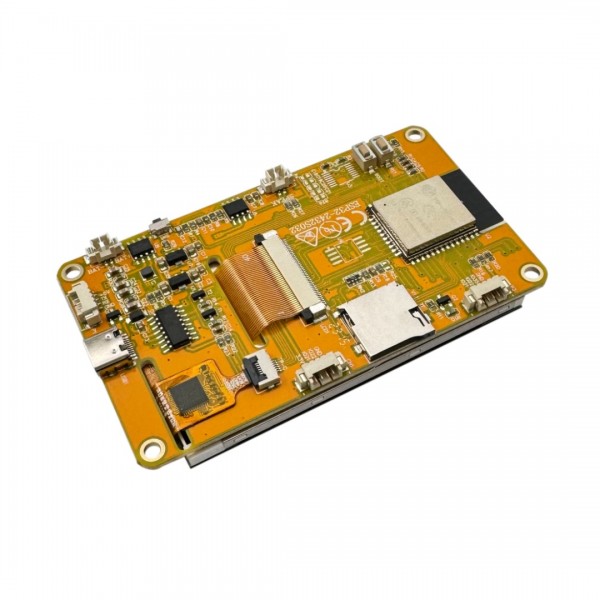

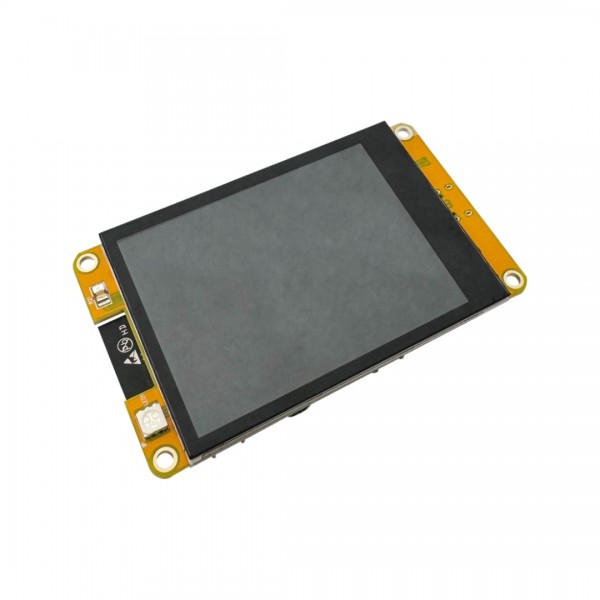

Jingcai ESP32-2432S032C-I - 3.2 inch TFT-LCD Display 320*240 pixels with Capacitive Touchscreen - ESP32
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005891
€17.25
Ex Tax: €14.26
A 3.2 inch TFT display with touchscreen based on an ESP32 microcontroller. It is easy to program via the USB-C connector, including via the Arduino IDE. One cable for the GPIO pins is included, to use all pins additional cables can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 4p - 15cm.
See the files under the tab "Downloads" for more information. A.o. sample code, datasheets and schematic diagrams are available.
For a simple example with the new touch driver, see the separate .ino file.
Check the tab "Downloads" for more information and/or downloads.
Reviews Over Jingcai ESP32-2432S032C-I - 3.2 inch TFT-LCD Display 320*240 pixels with Capacitive Touchscreen - ESP32
This product has 0 review(s) in total.
Report this review.
Arduino IDE example: 005891_005891_Jingcai_ESP32_2432S032C_simple_GT911_touch_v2.ino
More documents: 005891_3.2inch_ESP32-2432S032-complete.zip
Tags:
Jingcai ESP32-2432S032C-I - 3.2 inch TFT-LCD Display 320*240 pixels with Capacitive Touchscreen - ESP32
, ESP32-2432S032C-I
, With Bluetooth
Specifications
| General | |
| Brand | Jingcai Intelligent |
| Manufacturer model/SKU | ESP32-2432S032C-I |
| Model revision | V1.1 |
| Norm conformity | RoHS |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| Features | Battery charger Display Microcontroller Touchscreen SD-card adapter Light sensor Audio amplifier Programmable button(s) |
| General physical appearance | |
| Main color | Yellow |
| Weight [g] | 54 |
| Dimension X [mm] | 94 |
| Dimension Y [mm] | 55 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.2 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 5 |
| Maximum available hardware PWM channels | 4 |
| Maximum available analog input pins (ADC) | 5 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 2 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| USB to serial converter | CH340C |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Display | |
| Type | TFT |
| Driver | ST7789 |
| Screen diagonal [inch] | 3.2 |
| Number of pixels long side | 320 |
| Number of pixels short side | 240 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes (5 points) |
| Light sensor | |
| Sensor (chip) | LDR |
| Measurable light | Visible |
| Light sensor type | Light intensity |
| Audio amplifier | |
| Amplifier chip | NS8002 |
| Number of (normal) channels | 1 |
| Maximum power per (normal) channel [W] | 0.5 (@4Ω) |
| Minimum speaker impedance per (normal) channel [Ω] | 3 |
| Maximum speaker impedance per (normal) channel [Ω] | 8 |
| Battery circuit | |
| Battery charger chip/SoC | IP5306 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 2100 (IP5306 datasheet) 400 (measured) |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | Molex Picoblade (compatible) male USB-C female |
| IO-connector(s) | Molex Picoblade (compatible) male USB-C female |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Speaker connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |

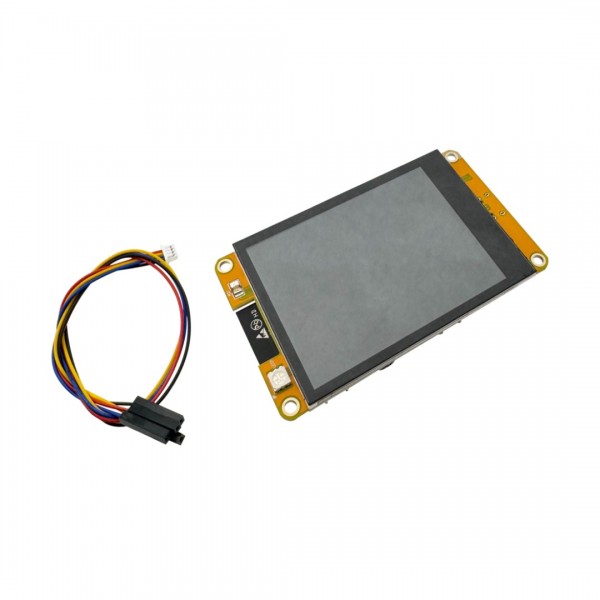

| Package contents | 1x ESP32-2432S032C-I 1x Molex Picoblade to DuPont female 4p cable |
