Jingcai ESP32-2432S028R - 2.8 inch TFT-LCD Display 320*240 pixels with Resistive Touchscreen - ESP32

Availability: Directly available from warehouse in Eindhoven
SKU: 005637

Based on 0 review(s) - Write a review

€13.50

Ex Tax: €11.16

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

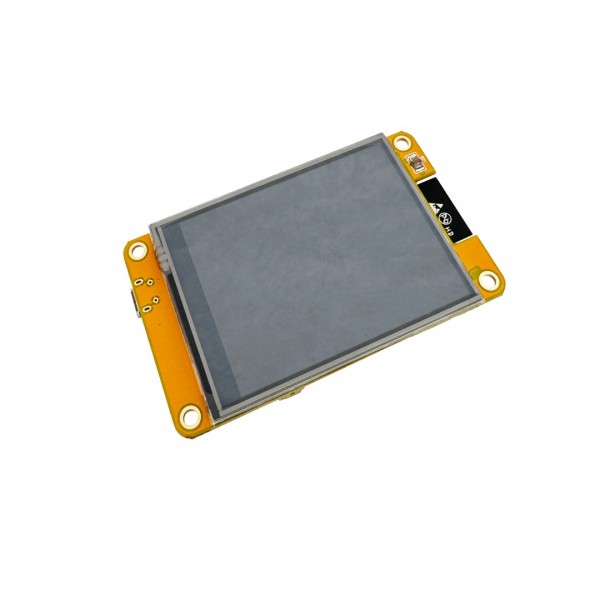

A 2.8 inch TFT display with touchscreen based on an ESP32 microcontroller. It is easy to program via the Micro USB connector, including via the Arduino IDE. One cable for the GPIO pins is included, to use all pins additional cables can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 4p - 15cm.

For a simple example with the new touch driver, see the separate .ino file.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Jingcai ESP32-2432S028R - 2.8 inch TFT-LCD Display 320*240 pixels with Resistive Touchscreen - ESP32

Average Rating:

This product has 0 review(s) in total.

Arduino IDE example: 005637_005637_Jingcai_ESP32_2432S028R_simple_XPT2046_touch.ino

More documents: 005637_2.8inch_ESP32-2432S028R-complete.zip

Tags: Jingcai ESP32-2432S028R - 2.8 inch TFT-LCD Display 320*240 pixels with Resistive Touchscreen - ESP32 , ESP32-2432S028R , With Bluetooth

Specifications

General
Brand	Jingcai Intelligent
Manufacturer model/SKU	ESP32-2432S028R
Model revision	V1.2
Norm conformity	RoHS
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display Microcontroller (MCU) Touchscreen SD-card adapter Light sensor Audio amplifier
General physical appearance
Main color	Yellow
Weight [g]	41
Dimension X [mm]	86
Dimension Y [mm]	50
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	6
Maximum available hardware PWM channels	5
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	CH340C
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Display
Type	TFT
Driver	ILI9341
Screen diagonal [inch]	2.8
Number of pixels long side	320
Number of pixels short side	240
Display shape	Rectangular
Pixel colors	RGB
Maximum viewing angle [°]	120
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Light sensor
Sensor (chip)	LDR
Measurable light	Visible
Light sensor type	Light intensity
Audio amplifier
Amplifier chip	NS8002
Number of (normal) channels	1
Maximum power per (normal) channel [W]	0.5 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	3
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Molex Picoblade (compatible) male Micro USB female
IO-connector(s)	Molex Picoblade (compatible) male Micro USB female
Speaker connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents

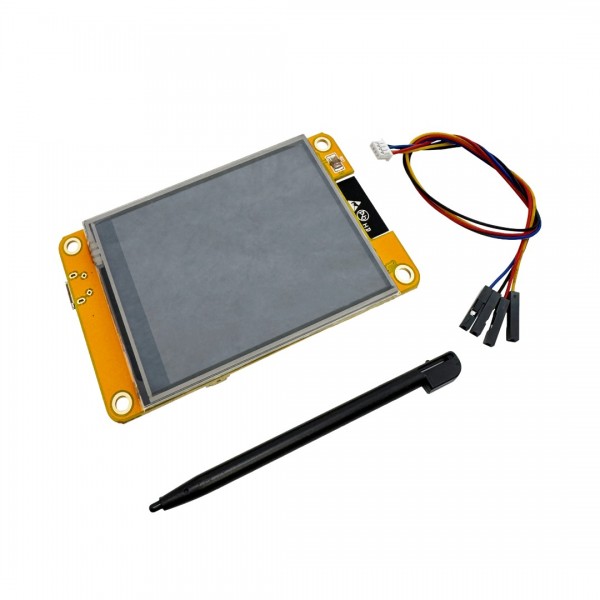

Package contents	1x ESP32-2432S028R 1x Molex Picoblade to DuPont female 4p cable 1x Touch pen
