Espressif ESP32-S3-DevKitC-1-N16 - 16MB Flash

New

Espressif ESP32-S3-DevKitC-1-N16 - 16MB Flash

Availability: Directly available from warehouse in Eindhoven
SKU: 006636

Based on 0 review(s) - Write a review

€21.00

Ex Tax: €17.36

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

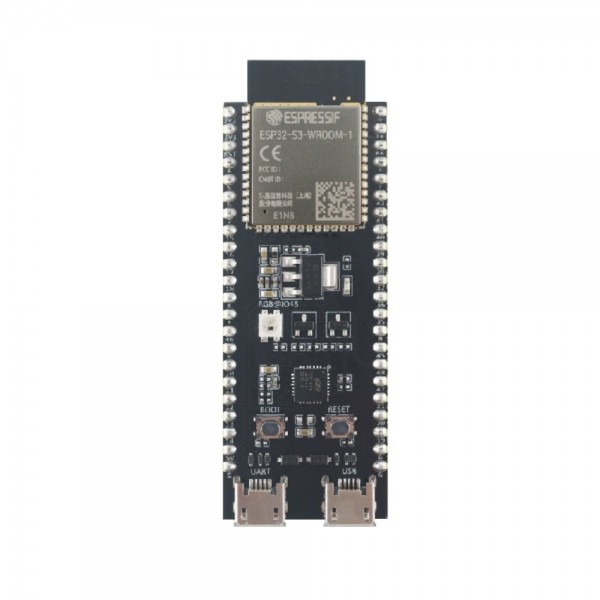

A development board from Espressif based on a ESP32-S3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

See the following page for more information: Wiki

Please login or register to review

Reviews Over Espressif ESP32-S3-DevKitC-1-N16 - 16MB Flash

Average Rating:

This product has 0 review(s) in total.

Tags: Espressif ESP32-S3-DevKitC-1-N16 - 16MB Flash , ESP32-S3-DevKitC-1-N16 , With Wi-Fi

Specifications

General
Brand	Espressif
Manufacturer model/SKU	ESP32-S3-DevKitC-1-N16
Features	Microcontroller Programmable button(s) Digital LED(s)
General physical appearance
Main color	Black
Weight [g]	12
Dimension X [mm]	63
Dimension Y [mm]	26
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3 (via 3.3V pin) 5 (via USB/5V pin)
Maximum supply voltage [V DC]	5 (via USB/5V pin) 3.3 (via 3.3V pin)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	36
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	20
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CP2102
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
LED
LED (driver) chip	SK6812
LED color	RGB
Connectors
Power supply connector(s)	Pin header male (2.54mm) Micro USB female
IO-connector(s)	Pin header male (2.54mm) Micro USB female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-S3-DevKitC-1
