ESP32 Wi-Fi and Bluetooth Board - CP2102

ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
ESP32 Wi-Fi and Bluetooth Board - CP2102
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 001443
Based on 0 review(s) - Write a review
€9.00
Ex Tax: €7.44
10 or more €8.50
20 or more €8.00
50 or more €7.50
100 or more €7.00
Add to Cart
Add to wishlist

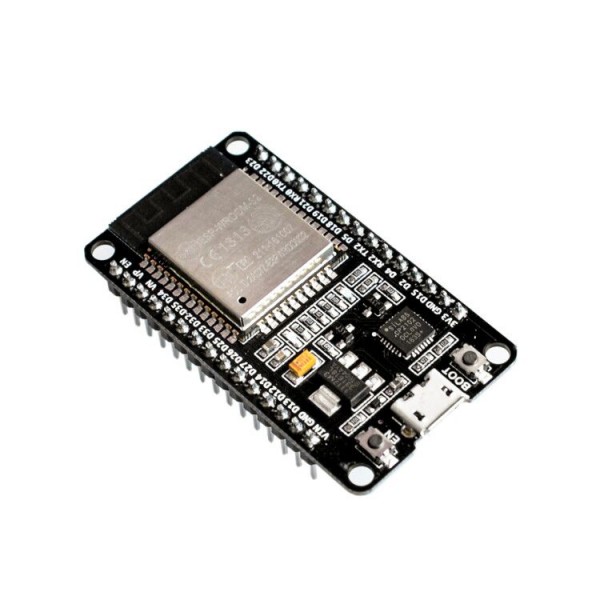

A development board based on a ESP32 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

Please login or register to review

Reviews Over ESP32 Wi-Fi and Bluetooth Board - CP2102

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , ESP32 Wi-Fi and Bluetooth Board - CP2102 , 001443 , No brand , Microcontroller (MCU) , I2C , I2S , SPI , UART , PWM , ADC , DAC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand No brand
Features Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 9
Dimension X [mm] 52
Dimension Y [mm] 28
Mounting options Pin headers
Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
(USB)
5
(VIN (can be used only when USB is not connected))
Maximum supply voltage [V DC] 12
(VIN (can be used only when USB is not connected))
5
(USB)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC

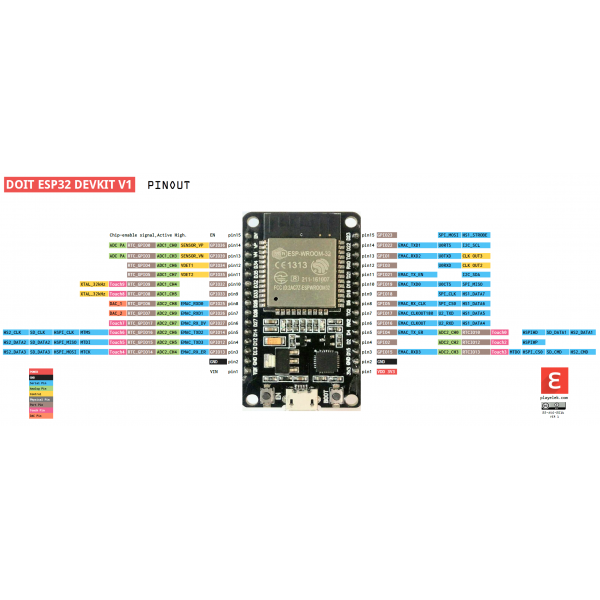

Available GPIO pins 1, 2, 3, 4, 5, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 25, 26, 27, 32, 33, 34, 35, 36, 39
Number of IO-pins 25
Maximum available hardware PWM channels 21
Maximum available analog input pins (ADC) 15
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CP2102
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Connectors
Power supply connector(s) Micro USB female
Pin header male (2.54mm)
IO-connector(s) Micro USB female
Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x ESP32 development board
