Name: ESP32-S3 SuperMini Development Board - with Solderd Headers - ESP32S3SMSH
Brand: DFRobot
SKU: 007218
Price: 7.25 EUR
Availability: InStock

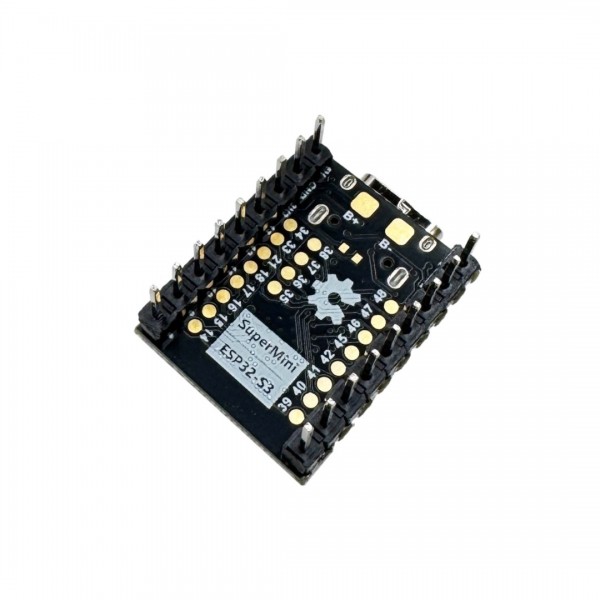

ESP32-S3 SuperMini Development Board - with Solderd Headers

New

ESP32-S3 SuperMini Development Board - with Solderd Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 007218

Based on 0 review(s) - Write a review

€7.25

Ex Tax: €5.99

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A development board from Nologo based on a ESP32-S3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ESP32-S3 SuperMini Development Board - with Solderd Headers

Average Rating:

This product has 0 review(s) in total.

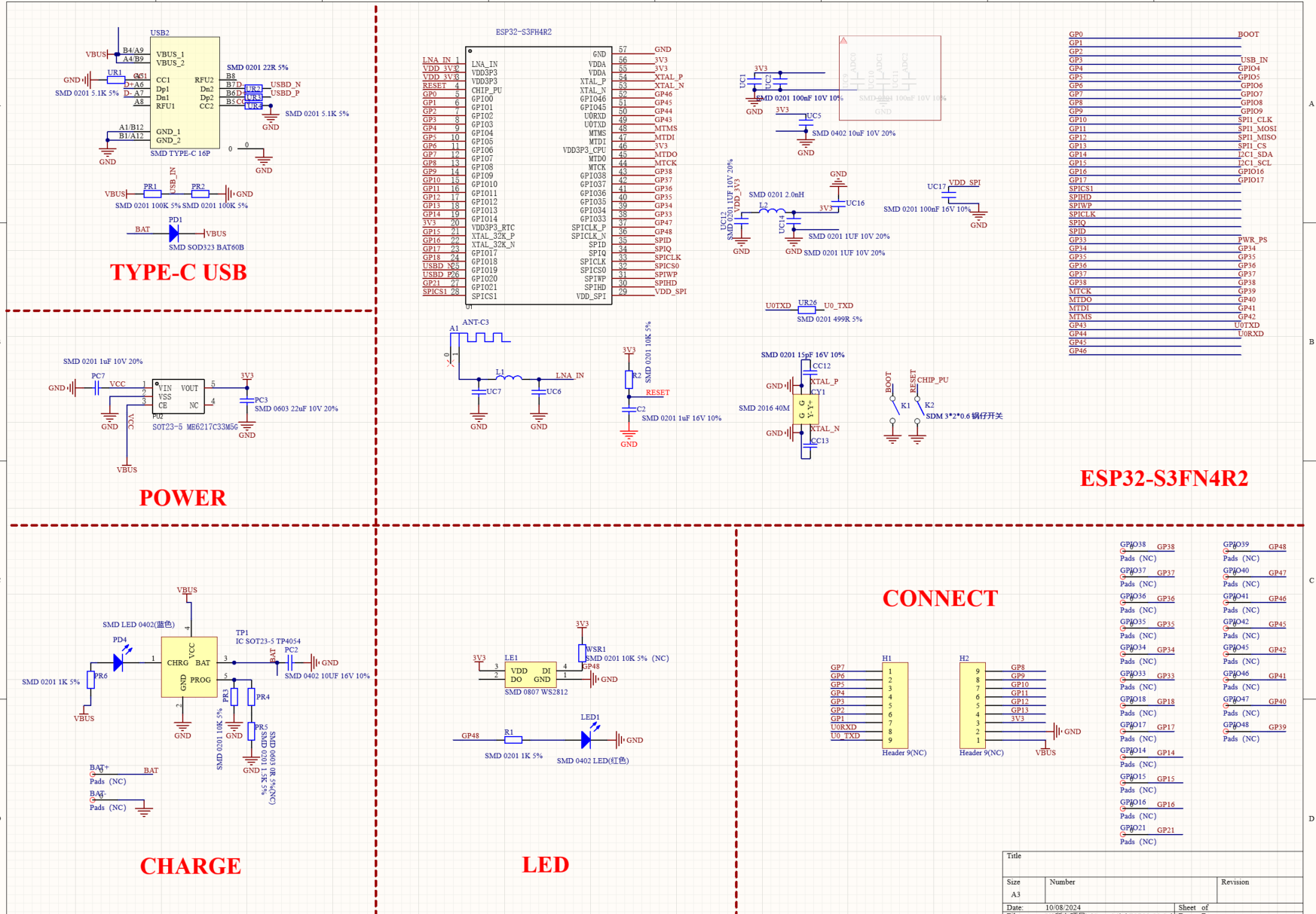

Schematic: 007218_ESP32-S3_Supermini_schematic.png

Tags: ESP32-S3 SuperMini Development Board - with Solderd Headers , ESP32S3SMSH , With Bluetooth

Specifications

General
Brand	Nologo
Features	Digital LED(s) Battery charger Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	24
Dimension Y [mm]	18
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	6
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	2
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB

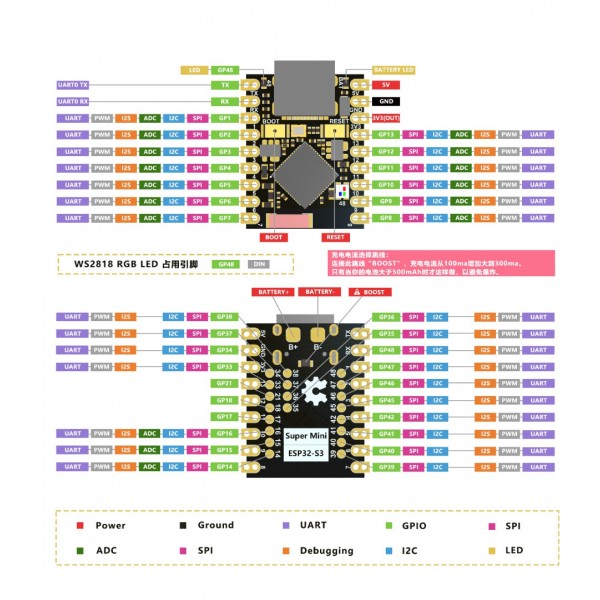

Available GPIO pins	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 43, 44 (only pinheaders)
Number of IO-pins	15
Maximum available hardware PWM channels	15
Maximum available analog input pins (ADC)	13
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
LED
LED (driver) chip	WS2812B
LED color	RGB
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	100
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female Pin header male (2.54mm)
IO-connector(s)	USB-C female Pin header male (2.54mm)
Battery connector(s)	Wire solder pin(s)/pad(s)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-S3 SuperMini Development Board
