ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth

ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003611
Based on 4 review(s) - Write a review
€7.00
Ex Tax: €5.79
Add to Cart
Add to wishlist

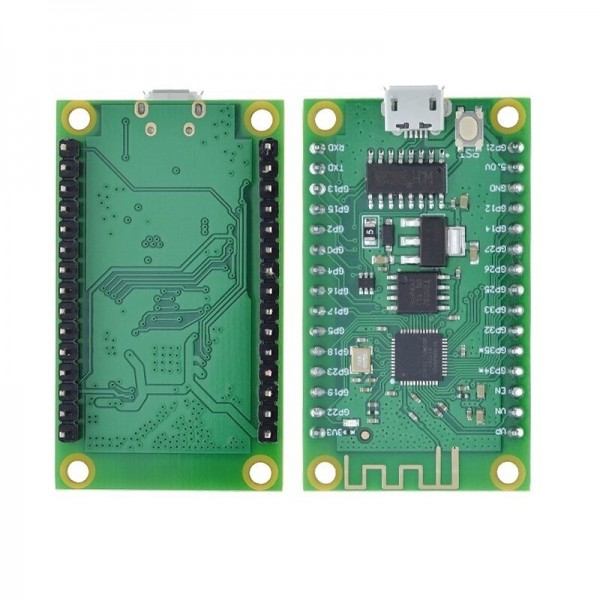

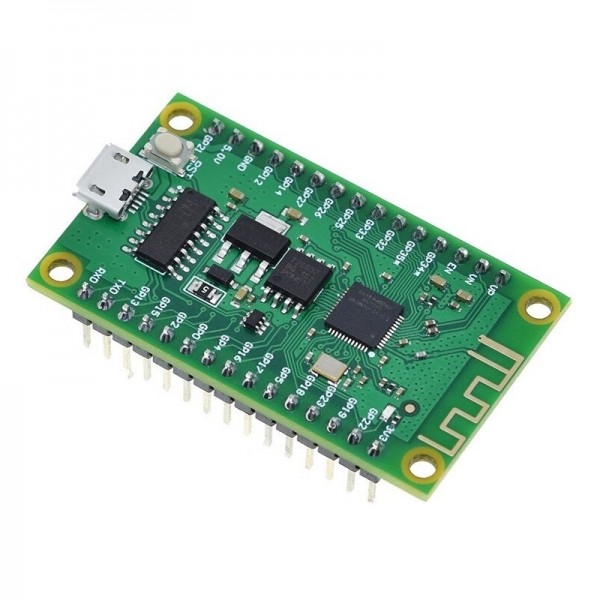

A development board based on a ESP32 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth

This product has 4 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , ESP32-D0WDQ6 Development Board - with Wi-Fi and Bluetooth , 003611 , No brand , Microcontroller (MCU) , ADC , DAC , I2C , I2S , PWM , SPI , GPIO , UART , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand No brand
Features Microcontroller (MCU)
General physical appearance
Main color Green
Weight [g] 8

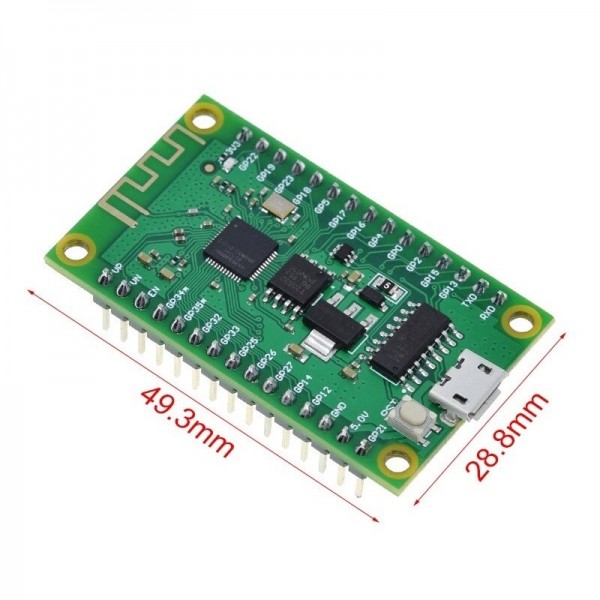

Dimension X [mm] 49
Dimension Y [mm] 29
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.8
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
(via 3V3 pin)
5
(via USB or 5V pin)
Maximum supply voltage [V DC] 5
(via USB or 5V pin)
3.3
(via 3V3 pin)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC

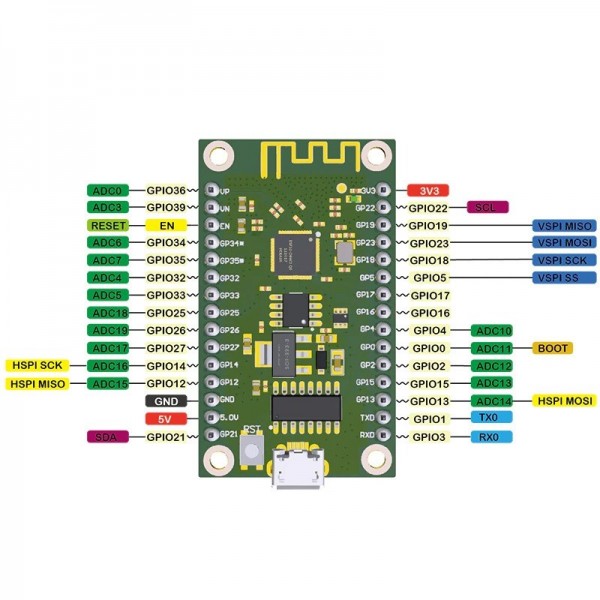

Available GPIO pins 0, 1, 2, 3, 4, 5, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 25, 26, 27, 32, 33, 34, 35, 36, 39
Number of IO-pins 26
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 16
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CH340C
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Connectors
Power supply connector(s) Micro USB female
Pin header male (2.54mm)
IO-connector(s) Micro USB female
Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Development board
