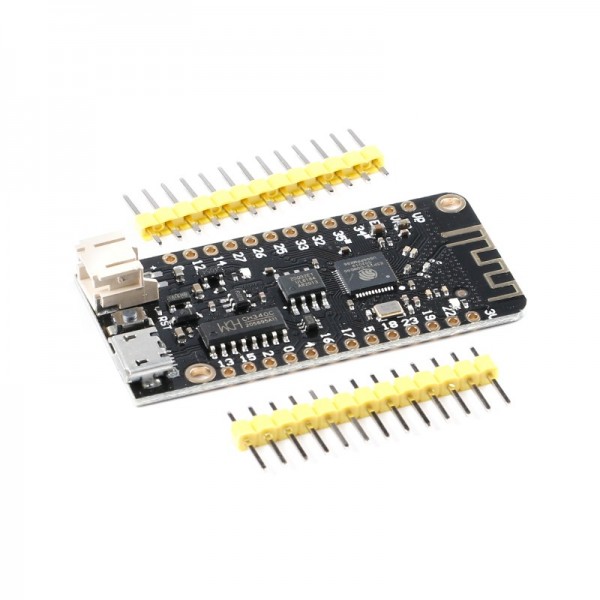

ESP32-D0WDQ6 Development Board - with Li-ion Li-Po Charge Circuit

Availability: Directly available from warehouse in Eindhoven
SKU: 004563

Based on 2 review(s) - Write a review

€5.50

Ex Tax: €4.55

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This development board is based on the ESP32 and is easy to program, also as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

See the ESP32-D0WNQ6 datasheet under the tab "Downloads" for more information.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ESP32-D0WDQ6 Development Board - with Li-ion Li-Po Charge Circuit

Average Rating:

This product has 2 review(s) in total.

Datasheet: 004563_esp32-D0WDQ6_datasheet_en.pdf

Tags: ESP32-D0WDQ6 Development Board - with Li-ion Li-Po Charge Circuit , ESP32DEVBOARDLI , With Bluetooth

Specifications

General
Brand	No brand
Features	Battery charger Microcontroller
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	49
Dimension Y [mm]	26
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	23
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	16
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340C
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
Battery connector(s)	JST-PH (compatible) male
Pin distance [mm]	2.54
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-D0WDQ6 Development Board 1x Male pin header set
