ESP32-C6 SuperMini Development Board

ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
ESP32-C6 SuperMini Development Board
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007214
Based on 0 review(s) - Write a review
€6.25
Ex Tax: €5.17
Add to Cart
Add to wishlist

A development board from Nologo based on a ESP32-C6 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ESP32-C6 SuperMini Development Board

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , ESP32-C6 SuperMini Development Board , 007214 , Nologo , Programmable button(s) , Microcontroller (MCU) , Digital LED(s) , Battery charger , USB CDC , UART , GPIO , SPI , PWM , I2S , I2C , ADC , Bluetooth , Zigbee , Thread , Wi-Fi

Specifications

General
Brand Nologo
Features Digital LED(s)
Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 2

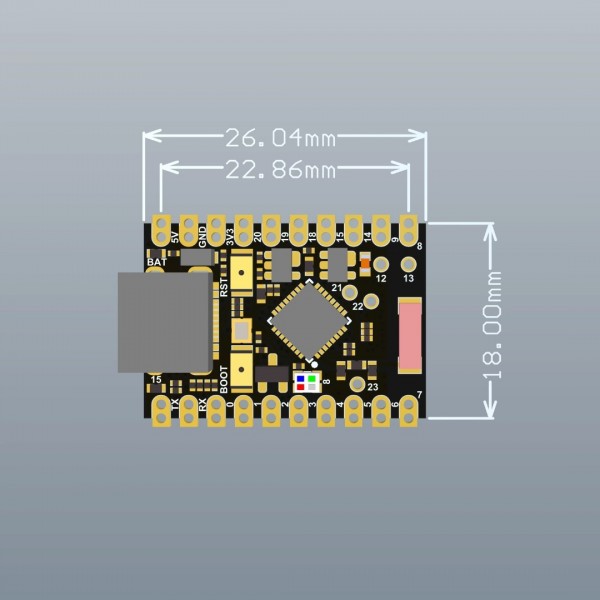

Dimension X [mm] 26
Dimension Y [mm] 18
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C6
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 512
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC

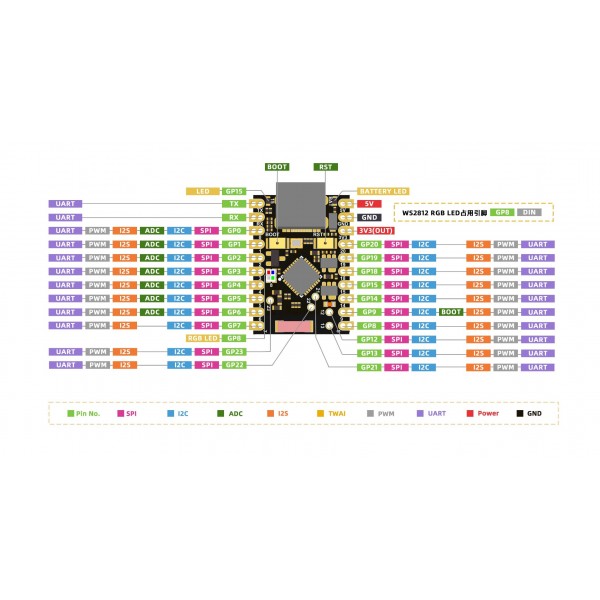

Available GPIO pins 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23
Number of IO-pins 22
Maximum available hardware PWM channels 12
Maximum available analog input pins (ADC) 7
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Thread
Zigbee
Bluetooth
Wi-Fi chip/SoC ESP32-C6
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C6
Bluetooth version 5.3
Supported Bluetooth standard(s) LE
Zigbee chip/SoC ESP32-C6
Zigbee frequency [GHz] 2.4
Thread chip/SoC ESP32-C6
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Battery circuit
Battery charger chip/SoC TP4054
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 100
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Battery connector(s) Wire solder pin(s)/pad(s)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Zigbee/Thread antenna connector Built-in antenna
Package contents

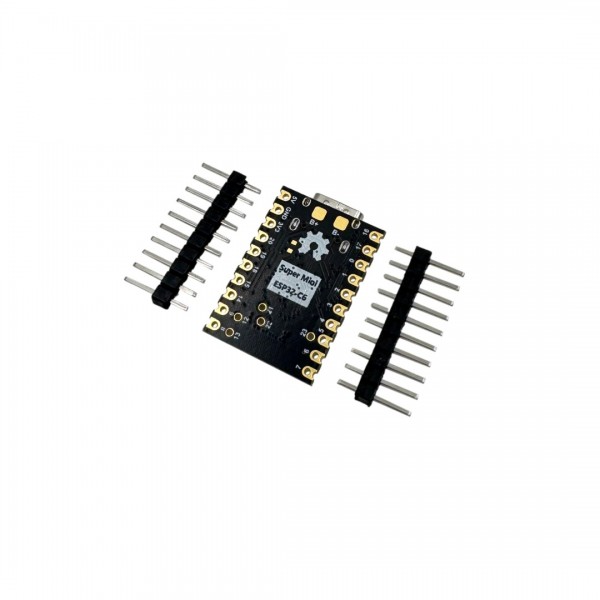

Package contents 1x Development board
2x Male pin header 10p
