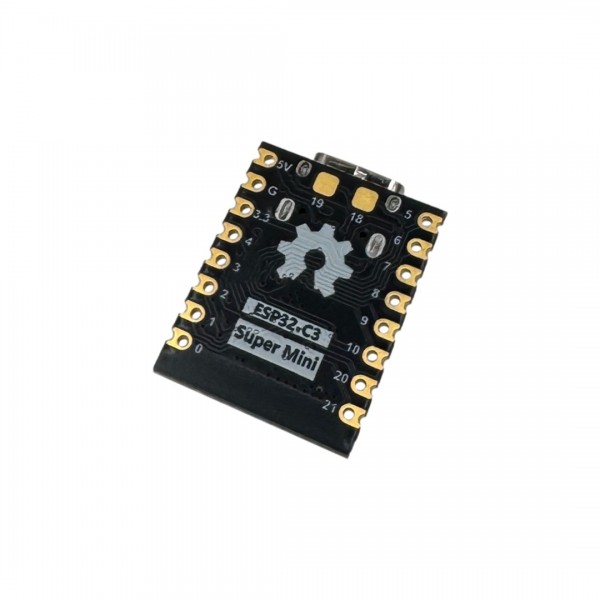

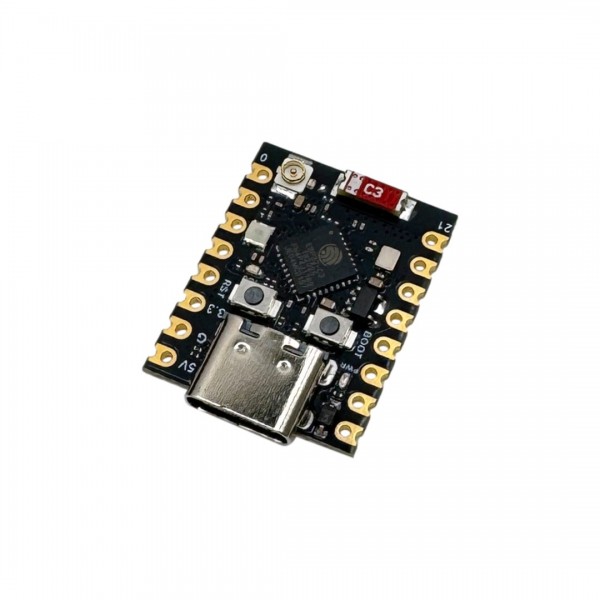

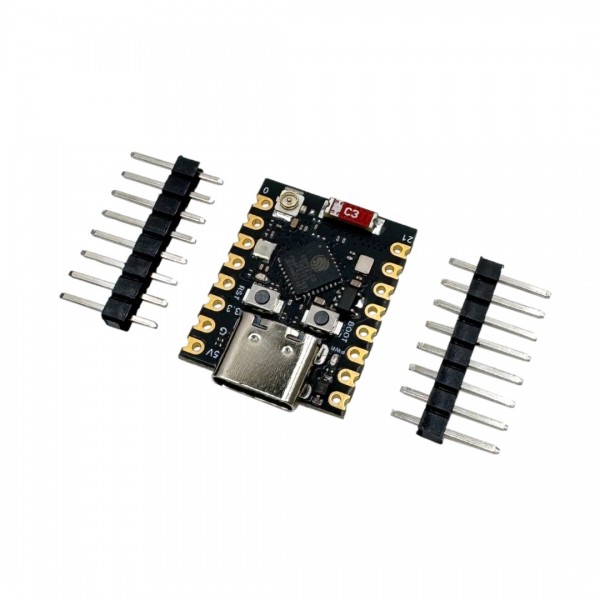

ESP32-C3 SuperMini Plus Development Board

ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
ESP32-C3 SuperMini Plus Development Board
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007204
Based on 2 review(s) - Write a review
€4.50
Ex Tax: €3.72
10 or more €4.00
20 or more €3.75
50 or more €3.50
100 or more €3.25
Add to Cart
Add to wishlist

A development board from Nologo based on a ESP32-C3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over ESP32-C3 SuperMini Plus Development Board

This product has 2 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , ESP32-C3 SuperMini Plus Development Board , 007204 , Nologo , Microcontroller (MCU) , Programmable button(s) , I2C , I2S , SPI , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand Nologo
Features Digital LED(s)
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 23
Dimension Y [mm] 18
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 6
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C3
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 400
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 18, 19, 20, 21
Number of IO-pins 15
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 6
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
IPEX MHF 1/uFL male (requires modification)
Package contents
Package contents 1x Development board
