ESP32-C3 RS232 Adapter

ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
ESP32-C3 RS232 Adapter
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007406
Based on 0 review(s) - Write a review
€13.75
Ex Tax: €11.36
Add to Cart
Add to wishlist

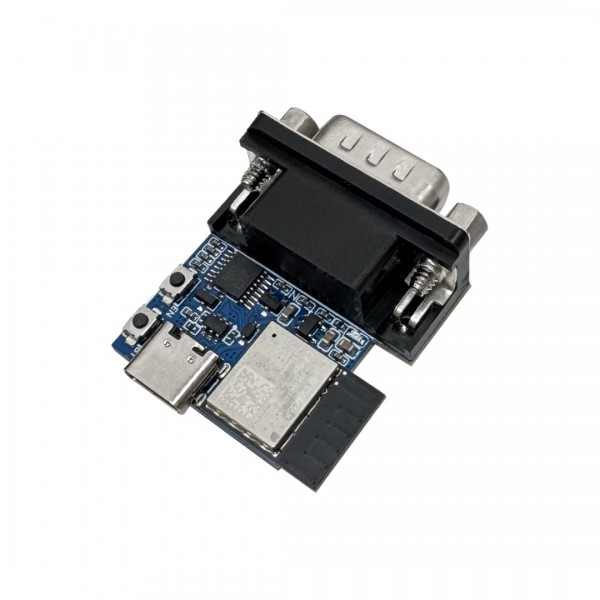

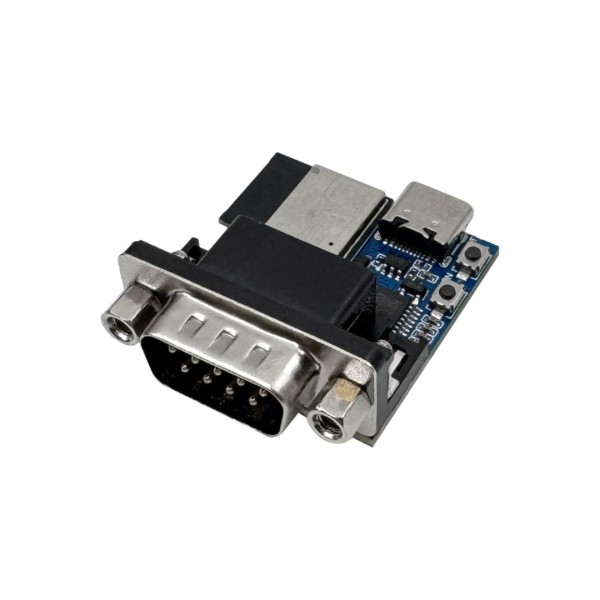

A development board based on an Espressif ESP32-C3 microcontroller. Its built-in USB connector makes it easy to program. The built-in DB9 male connector also makes it easy to connect as a dongle to many devices with an RS232 port. Built-in Wi-Fi allows for easy transfer of the read data.

Note: To program the module for the first time, it must be put into programming mode. Connect the module to the computer, hold down the boot button, and briefly press the reset button. Then release the boot button.

See the following page for more information: GitHub

Please login or register to review

Reviews Over ESP32-C3 RS232 Adapter

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , ESP32-C3 RS232 Adapter , 007406 , LEOTRO , Microcontroller (MCU) , Programmable button(s) , RS232 , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand LEOTRO
Model revision V1.1
Norm conformity RoHS
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Blue
Weight [g] 11
Dimension X [mm] 31
Dimension Y [mm] 31
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C3
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 400
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) RS232
USB CDC
Isolated communication No
Number of IO-pins 0
USB to serial converter Integrated into microcontroller
RS232 chip SP3232E
Number of RS232 channels 1
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Connectors
Power supply connector(s) USB-C female
IO-connector(s) DB9 male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x ESP32-C3 RS232 Adapter
