DFRobot Firebeetle 2 ESP32-UE IoT Development Board - 16MB Flash - 2MB PSRAM - Separate Headers

New

DFRobot Firebeetle 2 ESP32-UE IoT Development Board - 16MB Flash - 2MB PSRAM - Separate Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 006671

Based on 0 review(s) - Write a review

€15.25

Ex Tax: €12.60

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

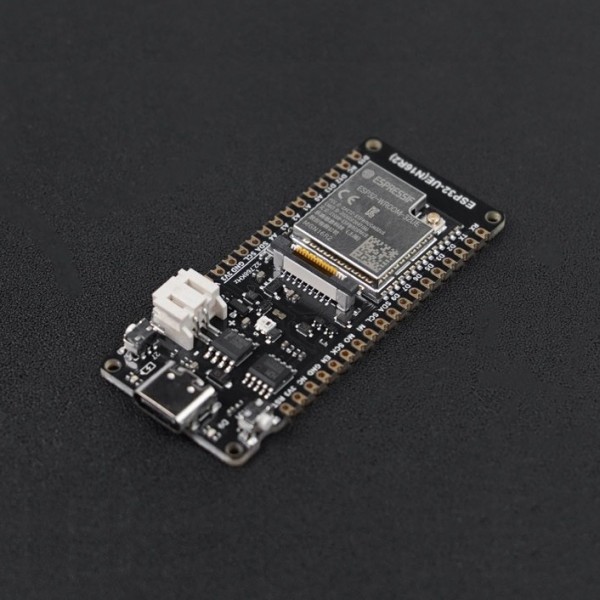

A development board from DFRobot based on a ESP32 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-ion/Li-Po battery (not included) can be connected, which can also be charged via the board.

Please login or register to review

Reviews Over DFRobot Firebeetle 2 ESP32-UE IoT Development Board - 16MB Flash - 2MB PSRAM - Separate Headers

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Firebeetle 2 ESP32-UE IoT Development Board - 16MB Flash - 2MB PSRAM - Separate Headers , DFROBOT-DFR1140 , With Bluetooth

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1140
Features	Battery charger Microcontroller Programmable button(s) Digital LED(s)
General physical appearance
Main color	Black
Weight [g]	9
Dimension X [mm]	60
Dimension Y [mm]	26
Mounting options	SMT Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	2
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	21
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	13
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340K
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
LED
LED (driver) chip	WS2812B
LED color	RGB
Battery circuit
Battery charger chip/SoC	TP4056X
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	580
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female FFC female 18p 0.50mm
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male Wire solder pin(s)/pad(s)
Package contents

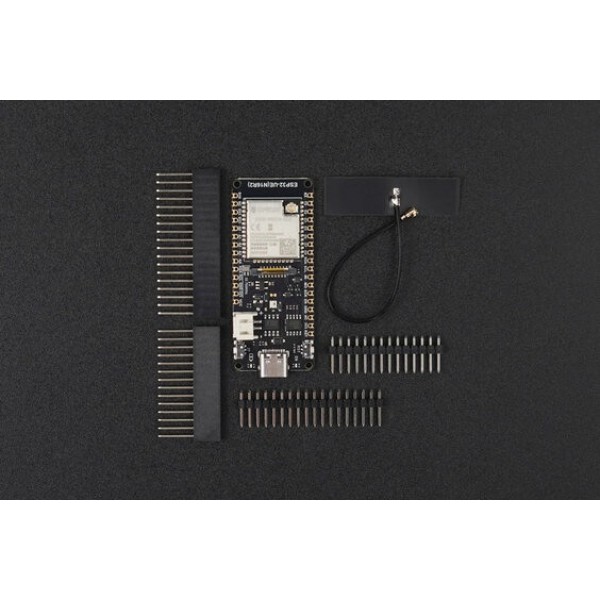

Package contents	1x Firebeetle 2 ESP32-UE 1x Male pin header 18p 1x Male pin header 14p 1x Female pin header long 18p 1x Female pin header long 14p 1x Antenna
