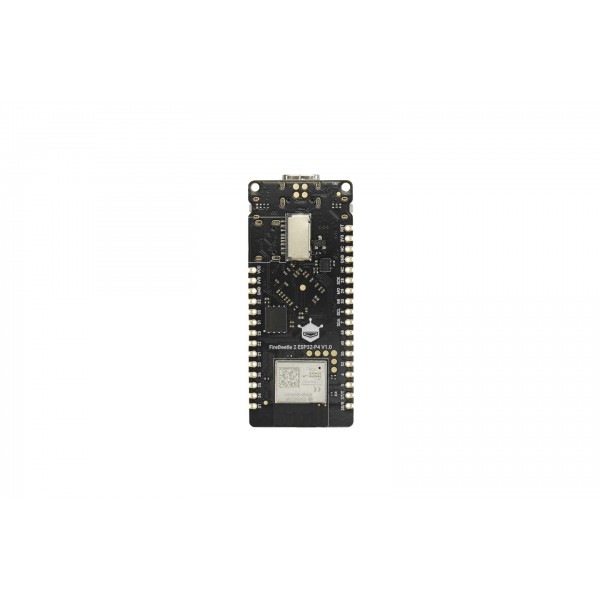

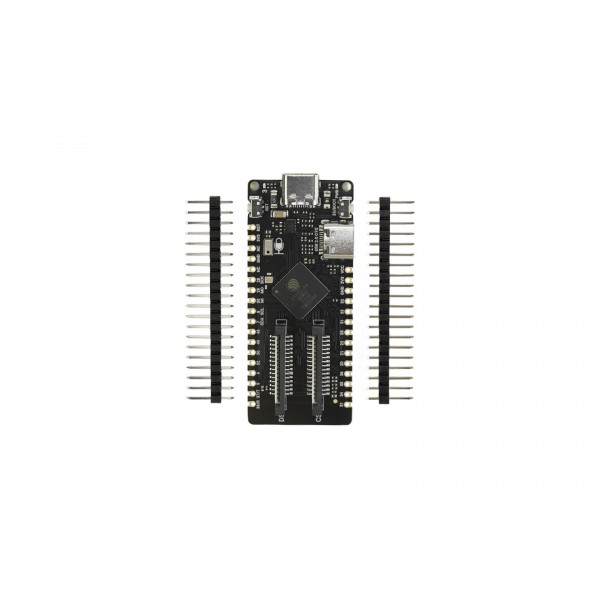

DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers

DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007457
Based on 0 review(s) - Write a review
€17.75
Ex Tax: €14.67
Add to Cart
Add to wishlist

A development board from DFRobot based on a ESP32-P4 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. An external (Raspberry Pi) camera can be connected using the CSI camera connector. An external display can be connected via the DSI connector. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

See the following page for more information: Wiki

Please login or register to review
Tags: Microcontroller Boards , With Bluetooth , DFRobot FireBeetle 2 ESP32-P4 AI Vision Board - ESP32-C6 IoT - Separate Headers , 007457 , DFRobot , DFR1172 , Microcontroller (MCU) , SD-card adapter , Microphone , Programmable button(s) , MIPI (CSI) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , MIPI (DSI) , GPIO , USB CDC , Comparator , Wi-Fi , Bluetooth , Zigbee , Thread

Specifications

General
Brand DFRobot
Manufacturer model/SKU DFR1172
Model revision V1.0
Features Microphone
SD-card adapter
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 10
Dimension X [mm] 60
Dimension Y [mm] 25
Mounting options SMT
Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-P4
Maximum clock frequency [MHz] 360
Number of cores 2
Internal memory
SRAM [KB] 800
(L2MEM + LP SRAM)
PSRAM [MB] 32
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Comparator
MIPI (CSI)
MIPI (DSI)
Native USB
Available GPIO pins 4, 5, 7, 8, 20, 21, 22, 23, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 48, 49, 50, 51, 52
(excl. DSI/CSI pins)
Number of IO-pins 24
Maximum available hardware PWM channels 20
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 6
Maximum available hardware I2C interfaces 3
Maximum available hardware SPI interfaces 3
USB to serial converter Integrated into microcontroller
Supported SD card size Micro SD
Wireless communication
Interface(s) Wi-Fi
Thread
Zigbee
Bluetooth
Wi-Fi chip/SoC ESP32-C6
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C6
Bluetooth version 5.3
Supported Bluetooth standard(s) LE
Zigbee chip/SoC ESP32-C6
Zigbee frequency [GHz] 2.4
Thread chip/SoC ESP32-C6
Sound sensor
Sensor (chip(s)) MSM261DGT003
Type Microphone
Sensor technology MEMS
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
FFC female 15p 1.00mm
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Zigbee/Thread antenna connector Built-in antenna
Package contents
Package contents 1x Development board
2x Male pin header 20p
