DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers

DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004010
Based on 2 review(s) - Write a review
€12.50
Ex Tax: €10.33
Add to Cart
Add to wishlist

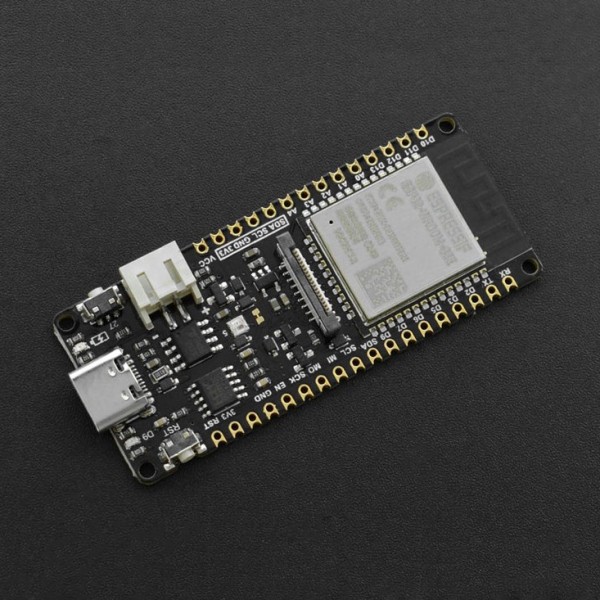

A development board from DFRobot based on a ESP32 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

See the following page for more information: Wiki

Please login or register to review
Tags: Microcontroller Boards , With Bluetooth , DFRobot FireBeetle 2 ESP32-E IoT Microcontroller - Wi-Fi and Bluetooth - Separate Headers , 004010 , DFRobot , DFR0654 , Digital LED(s) , Microcontroller (MCU) , Battery charger , UART , GPIO , ADC , SPI , PWM , I2S , DAC , I2C , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand DFRobot
Manufacturer model/SKU DFR0654
Features Digital LED(s)
Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 23

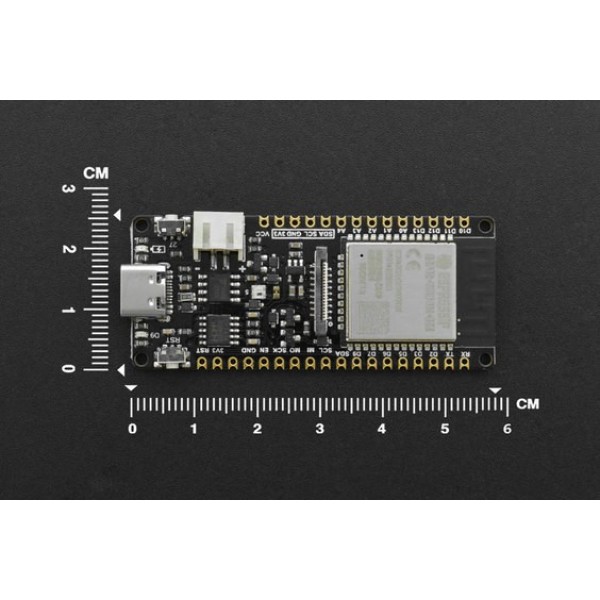

Dimension X [mm] 60
Dimension Y [mm] 25
Mounting options SMT
Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 0, 1, 2, 3, 4, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 25, 26, 34, 35, 36, 39
Number of IO-pins 22
Maximum available hardware PWM channels 18
Maximum available analog input pins (ADC) 13
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CH340K
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Battery circuit
Battery charger chip/SoC TP4056
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 600
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Wire solder pin(s)/pad(s)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
FFC female 18p 0.50mm
Through hole solder pin(s) (2.54mm)
Battery connector(s) JST-PH (compatible) male
Wire solder pin(s)/pad(s)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents

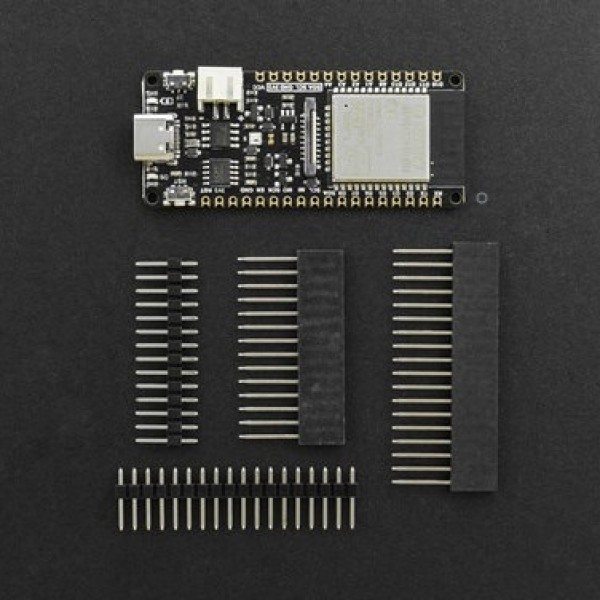

Package contents 1x Development board
1x Male pin header 14p
1x Male pin header 18p
1x Female pin header 14p
1x Female pin header 18p
