DFRobot FireBeetle 2 ESP32-C6 Development Board - Separate Headers
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005998
€7.25
Ex Tax: €5.99

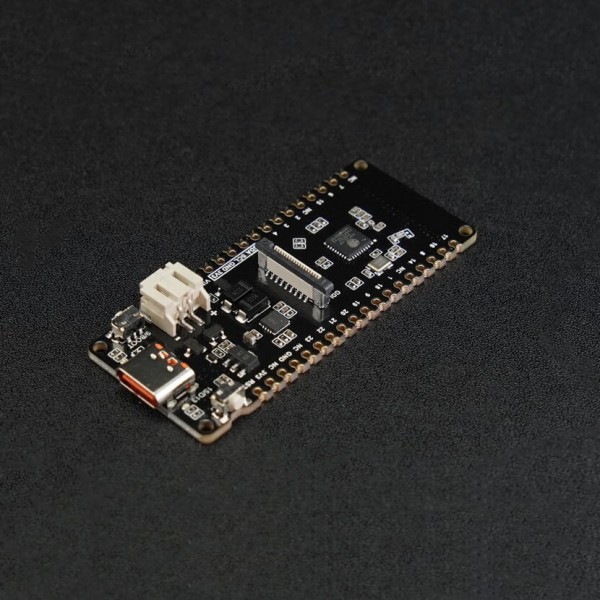

This development board from DFRobot is an ESP32-C6 based board with Wi-Fi, Bluetooth, Zigbee and Thread support. The board has a USB-C connector with which it can be programmed and/or powered (USB cable not included).
See the following page for more information: Wiki
Reviews Over DFRobot FireBeetle 2 ESP32-C6 Development Board - Separate Headers
This product has 0 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, DFRobot FireBeetle 2 ESP32-C6 Development Board - Separate Headers
, 005998
, DFRobot
, DFR1075
, Programmable button(s)
, Microcontroller (MCU)
, Battery charger
, I2S
, PWM
, SPI
, GPIO
, UART
, USB CDC
, ADC
, I2C
, Wi-Fi
, Thread
, Zigbee
, Bluetooth
Specifications
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | DFR1075 |
| Model revision | V1.2 (==V1.1) |
| Minimum operating temperature [°C] | -10 |
| Maximum operating temperature [°C] | 60 |
| Features | Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 8 |

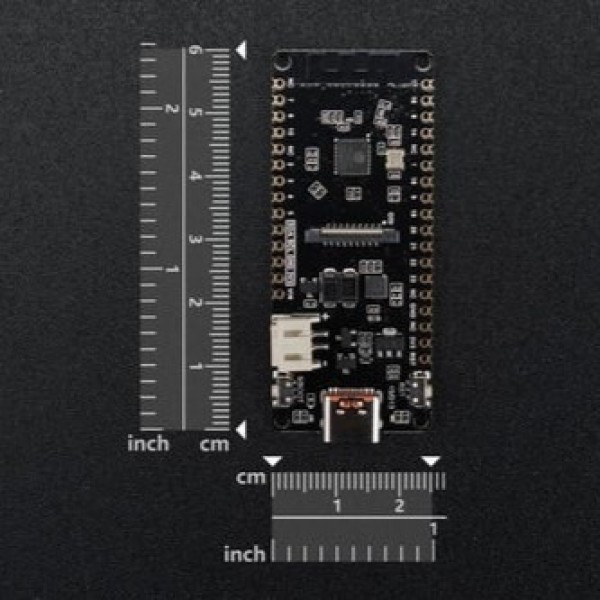

| Dimension X [mm] | 60 |
| Dimension Y [mm] | 25 |
| Mounting options | SMT Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.5 (via VIN pin) 5 (via USB-C) |
| Maximum supply voltage [V DC] | 6 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-C6 |
| Maximum clock frequency [MHz] | 160 |
| Number of cores | 1 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC |
| Number of IO-pins | 19 |
| Maximum available hardware PWM channels | 9 |
| Maximum available analog input pins (ADC) | 6 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Thread Zigbee Bluetooth |
| Wi-Fi chip/SoC | ESP32-C6 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-C6 |
| Bluetooth version | 5.3 |
| Supported Bluetooth standard(s) | LE |
| Zigbee chip/SoC | ESP32-C6 |
| Zigbee frequency [GHz] | 2.4 |
| Thread chip/SoC | ESP32-C6 |
| Battery circuit | |
| Battery charger chip/SoC | CN3165 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 540 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Solder pin(s) (SMT) FFC female 18p 0.50mm Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | JST-PH (compatible) male Wire solder pin(s)/pad(s) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Zigbee/Thread antenna connector | Built-in antenna |
| Package contents | |

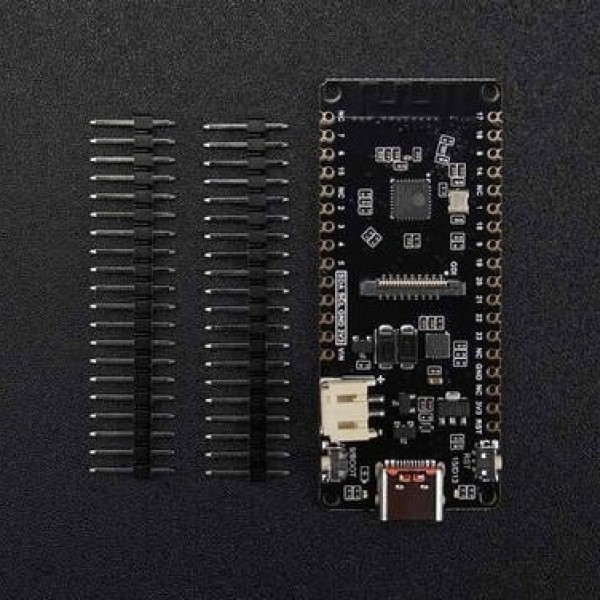

| Package contents | 1x FireBeetle2 ESP32-C6 2x Pinheader male 20p |
