Name: DFRobot Beetle ESP32-C6 - DFROBOT-DFR1117
Brand: DFRobot
SKU: 006006
Price: 6.25 EUR
Availability: InStock

DFRobot Beetle ESP32-C6

Availability: Directly available from warehouse in Eindhoven
SKU: 006006

Based on 0 review(s) - Write a review

€6.25

Ex Tax: €5.17

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

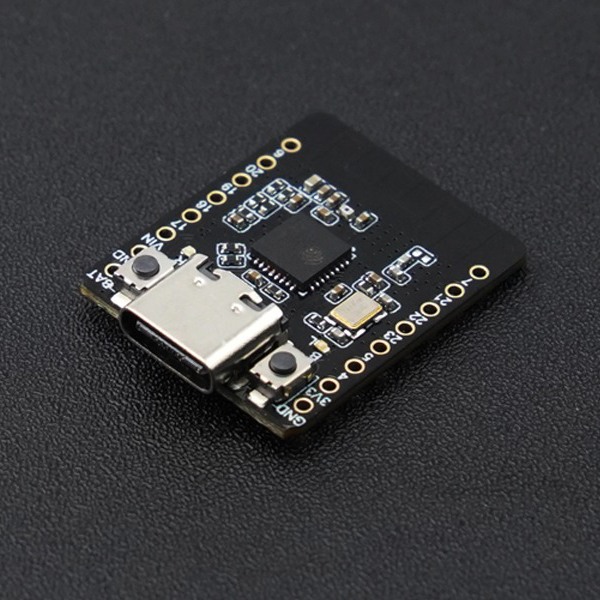

The Beetle ESP32-C6 from DFRobot is an Arduino IoT development board with a compact design and supports various wireless communication protocols.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Beetle ESP32-C6

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Beetle ESP32-C6 , DFROBOT-DFR1117 , With Bluetooth

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1117
Model revision	V1.1
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	60
Features	Battery charger Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	2

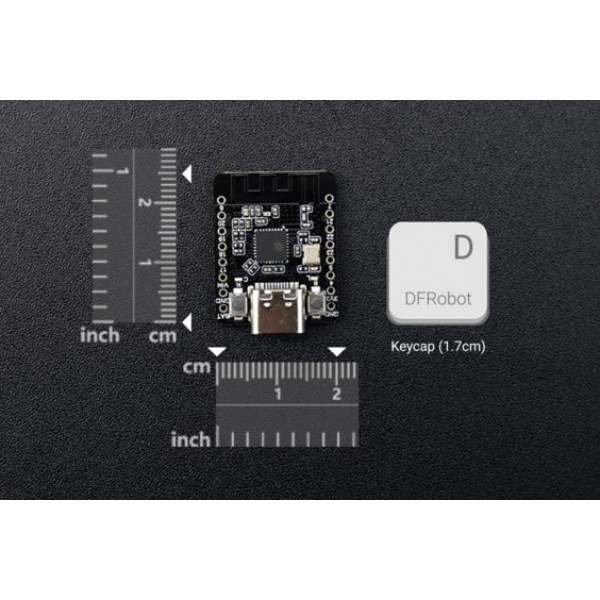

Dimension X [mm]	25
Dimension Y [mm]	21
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-C6
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	11
Maximum available hardware PWM channels	9
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth Zigbee Thread
Wi-Fi chip/SoC	ESP32-C6
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C6
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ESP32-C6
Zigbee frequency [GHz]	2.4
Thread chip/SoC	ESP32-C6
Battery circuit
Battery charger chip/SoC	TP4057
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	400
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee/Thread antenna connector	Built-in antenna
Package contents

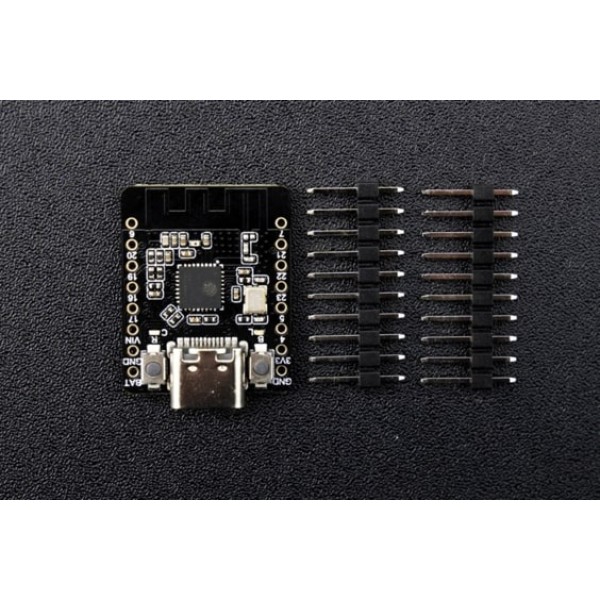

Package contents	1x Beetle ESP32-C6 2x Pin header male 10p
